Wristband Printer
Model: 3200TLA
Description: direct thermal wristband printer, patient wristband printer, plastic wristband printer
Key parameter: 2 inch width (58mm)
USB, USB+Ethernet, USB+Bluetooth
Features:
Wristband Printer, Unique design
25mm~60mm paper width
Auto-detecting position of wristband
First-page printed
Two platen rollers to prevent slipping
Max. speed printing up to 200mm/s
Support black mark detection
Auto temperature control
Wristband Printer comes with real-time monitoring function, support call service providers quickly
Specification:
|
Printer |
Print Method |
Direct thermal line |
|
Command set |
TSPL emulation |
|
|
Resolution |
203 dpi |
|
|
Print Speed |
200mm/s Max. |
|
|
Print head temperature detect |
Thermal sensitive resistance |
|
|
Print Head Position detect |
Microswitch |
|
|
Paper sensor |
Transmissive Sensor |
|
|
Reflection sensor |
||
|
Memory |
Dram: 8M, Flash: 4M |
|
|
Interface |
USB (Standard) |
|
|
USB+Ethernet (Optional) |
||
|
USB+Bluetooth (Optional) |
||
|
USB type |
USB 2.0 type-B |
|
|
USB VID PID |
VID:0471 PID:0055 |
|
|
Print area Max. |
54mm*2286mm |
|
|
Barcode, Fonts, |
Graphics Processing |
Support BMP/PCX/BAS files |
|
1D Barcode |
CODE128, EAN128, ITF, CODE39、 CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR POSTNET, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, CPOST MSI, MSIC, PLESSEY, ITF14 , EAN14 |
|
|
2D Barcode |
QR code |
|
|
Font |
GB18030: 24x24 |
|
|
BIG5: 24x24 |
||
|
KSC5601: 24x24 |
||
|
ANK: 12x24, 9x7 |
||
|
Enlargement & Rotation |
1~8 times enlargement in horizontal and vertical direction. Rotation in 0°, 90°, 180°, 270°. |
|
|
Software |
Win9X/Win ME/Win2000/WinNT/WinXP, WinVista, Win7, Win8, Win10 |
|
|
Media |
Paper Type |
Continuous paper, label paper, reverse side black mark paper etc |
|
Paper Roll Core Size |
25.4mm |
|
|
Media Width |
25~60mm |
|
|
Paper thickness |
0.06mm·0.254mm |
|
|
Media Diameter |
120mm |
|
|
Paper feeding |
Front feeding, tearing-off |
|
|
Power |
Power Supply |
24VDC/2.5A |
|
Environment |
Work Environment |
Temperature: 5～ 40℃, Humidity: 20～ 90% |
|
Storage Environment |
Temperature: -25～ 55℃, Humidity: 20～ 93% |
|
|
Air pressure |
86~106kPa |
|
|
Physical |
Printer Weight |
1.29 kg |
|
Weight of Box |
2 kg |
|
|
Dimension |
244(L)*129(W)*166(H) mm |
|
|
Dimension of Box |
310(L)*170(W)*255(H) mm |
|
|
Reliability |
Print head |
30KM |

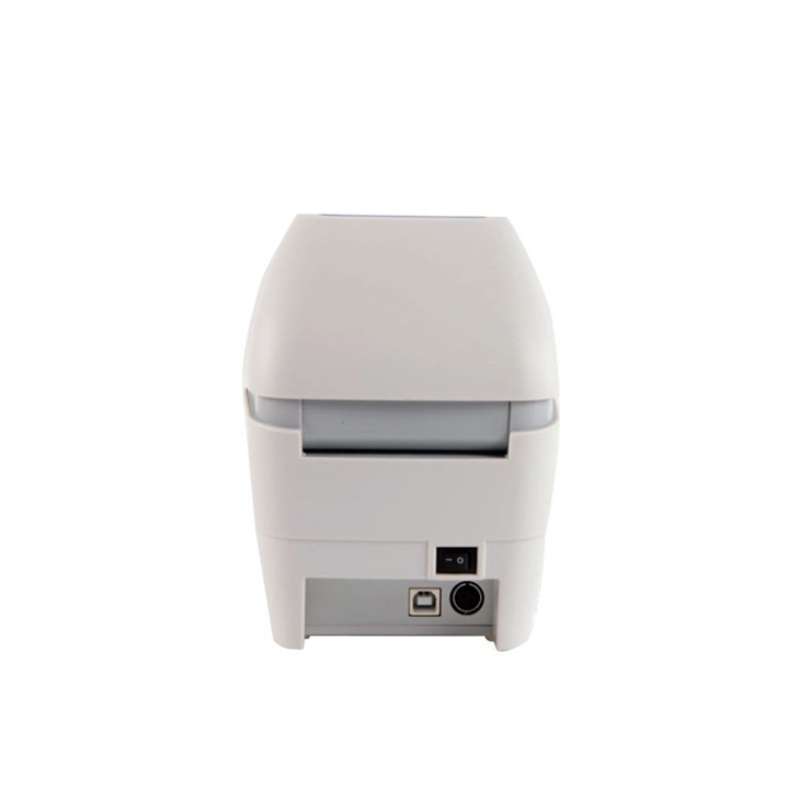

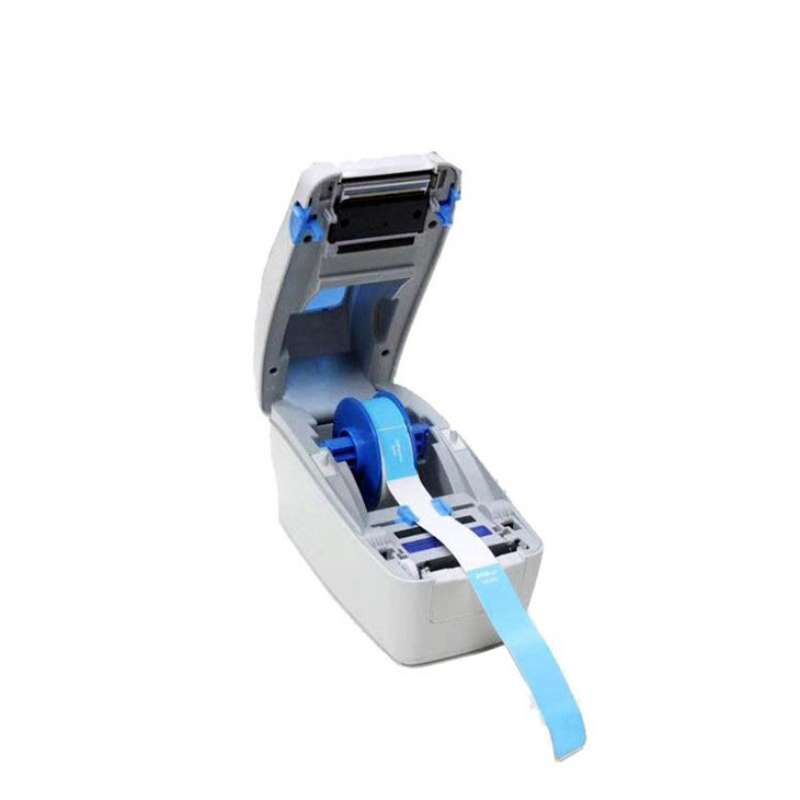

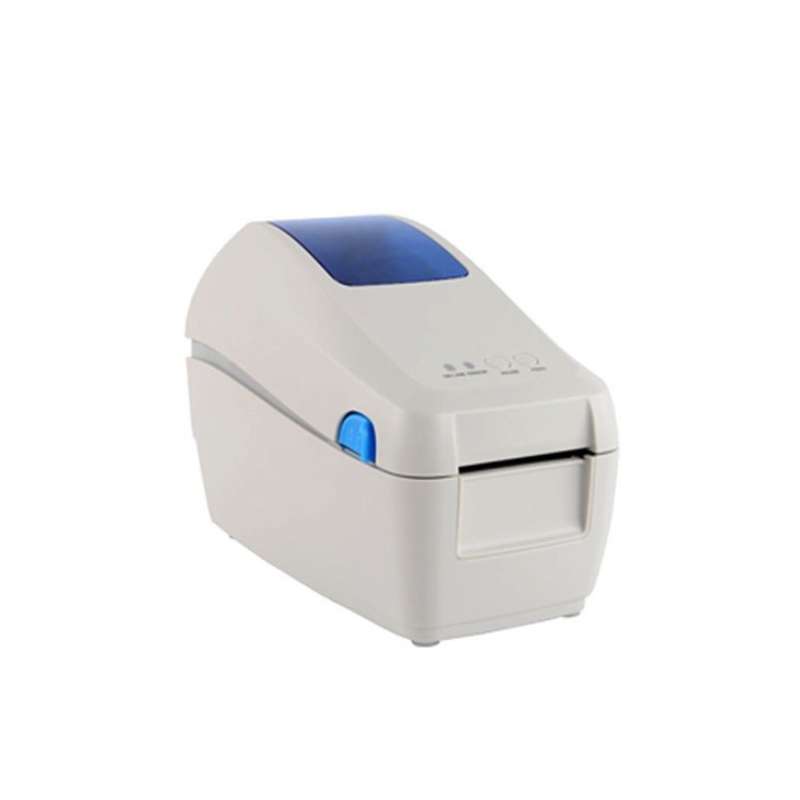

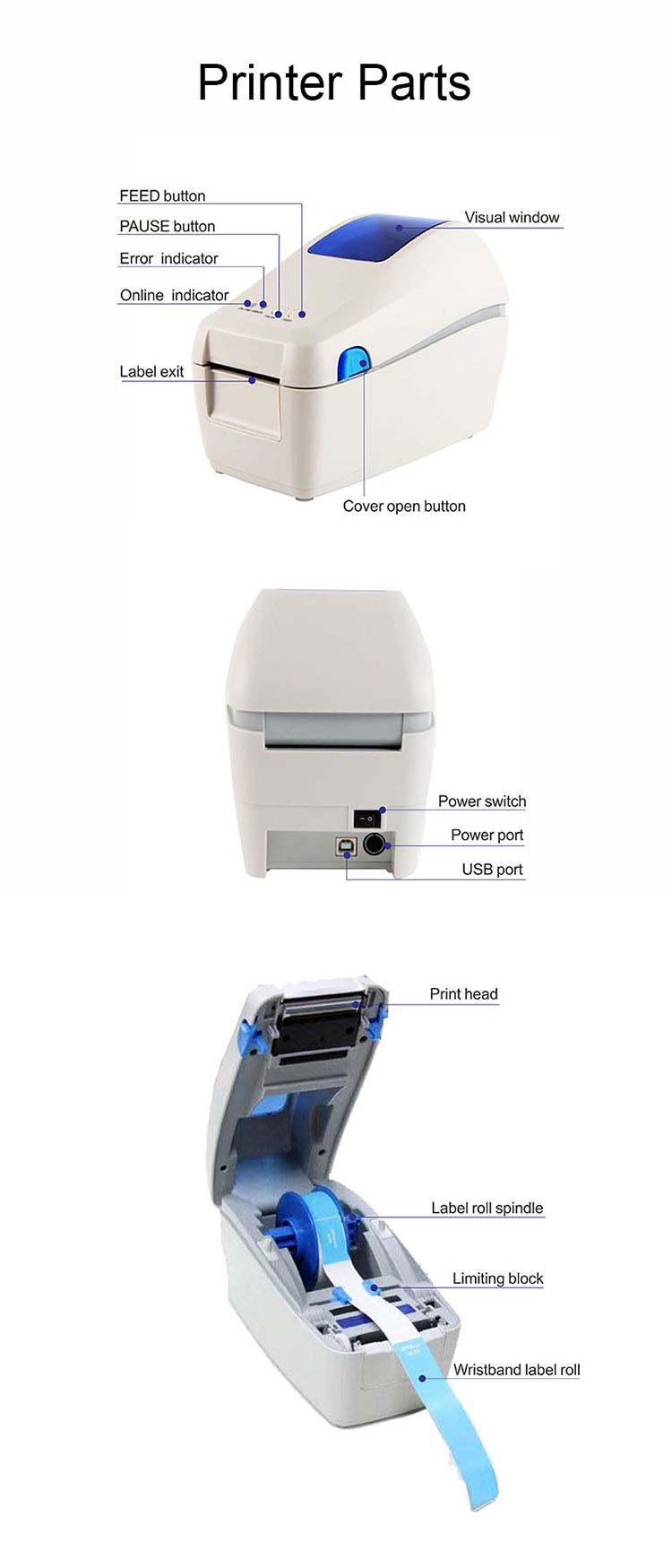

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Wristband Printer |
2 |
6 pcs/carton |
14 | 68*50*29 |
Application:
A wristband printer is a device used to print wristbands, which are typically made of paper or plastic and worn around the wrist. These printers are commonly used in events, hospitals, amusement parks, and other venues where identification or access control is required. They can print information such as barcodes, QR codes, logos, and text onto the wristbands.
