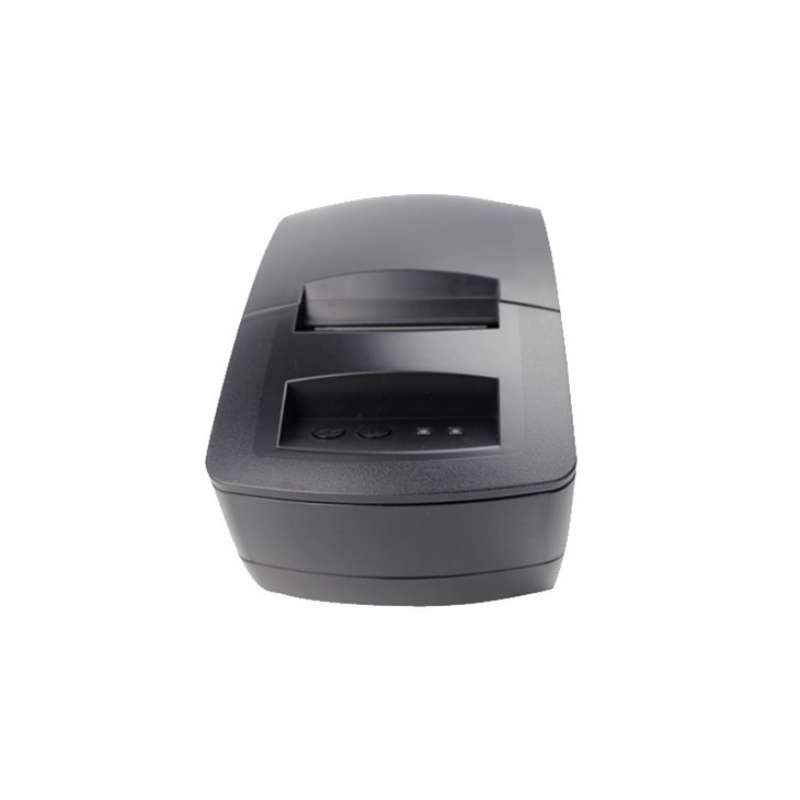

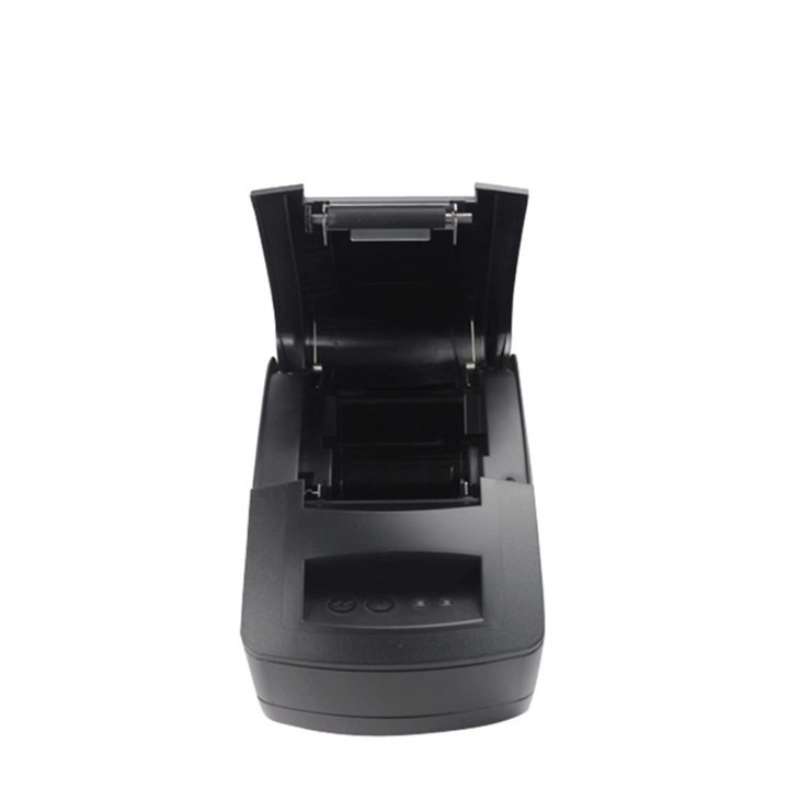

2120TU Printer
Model: 2120TU
Description: thermal barcode printer, direct thermal label printer
Key parameter: 2 inch width (58mm)
Label and receipt printing
USB, USB+Bluetooth, USB+Ethernet
Features:
2120TU Printer Size: 238*138*145mm
Weight: 1.0kg
Built-in power, cost-effective
Compatible with TSPL and ESC commands
2-in-1 printer for combining barcode printer and receipt printer
2120TU Printer supports to print image, 1D barcode, QR code.
Interface for option: USB(standard), USB+Bluetooth (optional), USB+LAN (optional)
Freely Offer DLL, SDK, and Demo for development.
Specification
|
2120TU Printer |
Thermal Label Printing mode |
Thermal Receipt printing mode |
|
Printing mode |
Thermal |
Thermal |
|
Dot density |
203DPI |
203DPI |
|
Print width |
2inch (56mm max.) |
48mm |
|
Print speed |
127mm/sec (max) |
90mm/sec |
|
Buffer |
Flash: 60K |
Flash: 60K |
|
Print head temperature detect |
thermal sensitive resistance |
thermal sensitive resistance |
|
Print head position detect |
Microswitch |
Microswitch |
|
Paper sensor |
Photoelectricity |
Photoelectricity |
|
Interface |
USB, USB+BT, USB+LAN |
USB, USB+BT, USB+LAN |
|
Barcode type |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODEBAR, UPC_AUPCA+2, UPCA+5UPC_E, UPCE+2, UPC_E+5, QRCode |
UPC_A, UPC_E, JAN13(EAN13), JAN8(EAN8), CODE39, CODEBAR, ITF, CODE93, CODE128, QRCode |
|
Character font |
Font 0 ~ Font 8 |
ASCII |
|
GB18030 |
font: Font A: 12x24 dots; |
|
|
Simplified/Traditional Chinese, Korean |
Font B: 9x17 dots |
|
|
|
GB18030, simplified/traditional Chinese, Korean: 24x24dots |
|
|
Character enlargement & rotation |
1~10 times enlargement in horizontal and vertical directions; Rotation printing (0°, 90°, 180°, 270° ) |
1~ 8 times enlargement in horizontal and vertical directions; Rotation printing, inversion printing |
|
Image |
Single color PCX, BMP image file can be download into Flash |
Support different dot density bitmap and download bitmap to print |
|
Paper type |
Thermal paper roll / adhesive thermal paper |
Thermal paper roll |
|
Paper width |
20~60mm |
57.5±0.5mm |
|
Paper diameter |
110mm max. |
110mm max. |
|
Paper cutting way |
Tear off |
Tear off |
|
Input |
DC8.5V/3A |
DC8.5V/3A |
|
Cash drawer output |
DC12V/1A |
DC12V/1A |
|
Work environment |
5~45℃, ≤93%RH |
5～45℃ ≤93%RH |
|
Storage environment |
5～45℃ ≤93%RH |
5～45℃ ≤93%RH |
|
Dimension |
238*138*145mm (LxWxH) |
238*138*145mm (LxWxH) |
|
Weight |
1.0kg |
1.0kg |
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
2120TU Printer |
1.5 |
6 pcs/carton |
10.5 |
69*34*41 |
