6 Inch Label Printer
Model: 6200D
Description: large format printer, large printer, wide format printer
Key parameter: 160mm paper width (6 inch)
USB+Serial+LAN, USB+Bluetooth
5inch/sec
Features:
* 6 inch label printer, 6 inch ultra-large width printing, which can print medical prescriptions and ticket
* Stylish appearance design, flat body, saving office space
* Save consumables, no ribbon, no ink
* 6 inch label printer equipped with dual sensors, to deal with a variety of different consumables, accurate positioning
* 127mm/s high-speed and clear printing
Specification
|
Printing |
Print Method |
Direct Thermal |
|
Command |
TSPL |
|
|
Print Resolution |
203 dpi |
|
|
Print Speed |
2~5 inch/s (51-127mm/s) |
|
|
Print head temperature detect |
Thermal sensitive resistance |
|
|
Cover open detect |
Microswitch |
|
|
Paper sensor |
Photoelectricity |
|
|
Buffer |
DRAM:8M FLASH:8M |
|
|
Interface |
USB+Serial+Ethernet (Standard) USB+Bluetooth (Optional) |
|
|
Thermal Paper |
Paper Width |
40mm ~ 160mm |
|
Paper Roll OD |
100mm (Max.) |
|
|
Paper Type |
Continuous paper, gap paper, fanfold paper, black mark paper, etc |
|
|
Paper way out |
Front paper out, tearing-off |
|
|
Character |
Enlargement & Rotation |
1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation |
|
Character Size |
Font 0 ~ font 8 |
|
|
1D Barcode |
CODE128, EAN128, ITF, CODE39, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14 |
|
|
2D Barcode |
QR code |
|
|
Graphics Processing |
Support BMP/PCX/BAS files |
|
|
Operating |
Power supply |
DC24V/2.5A |
| Reliability | Print head | 30km |
|
Physical |
Printer Weight |
Approx. 2.13KG |
| Printer dimension | 212*213*144mm (WxDxH) |

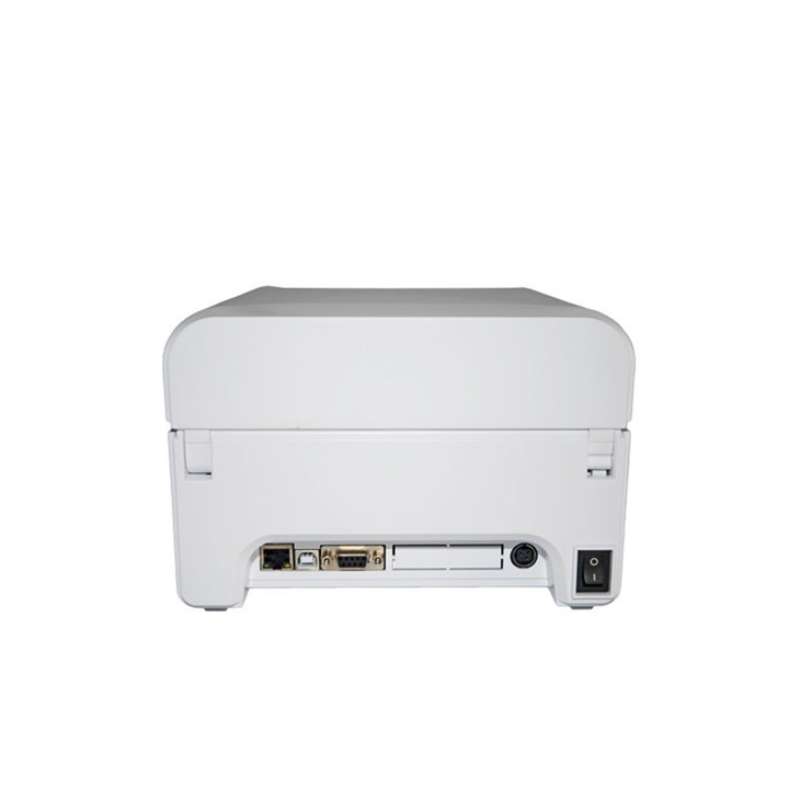

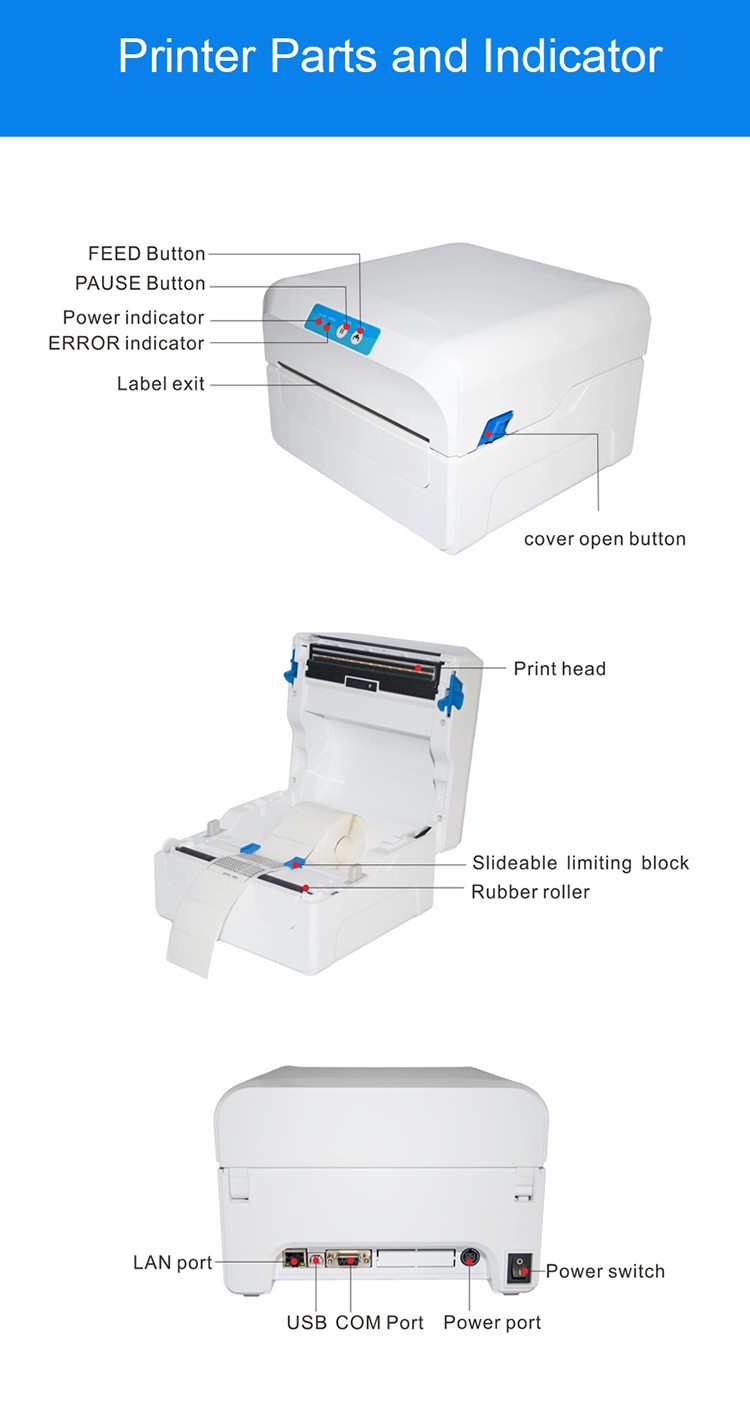

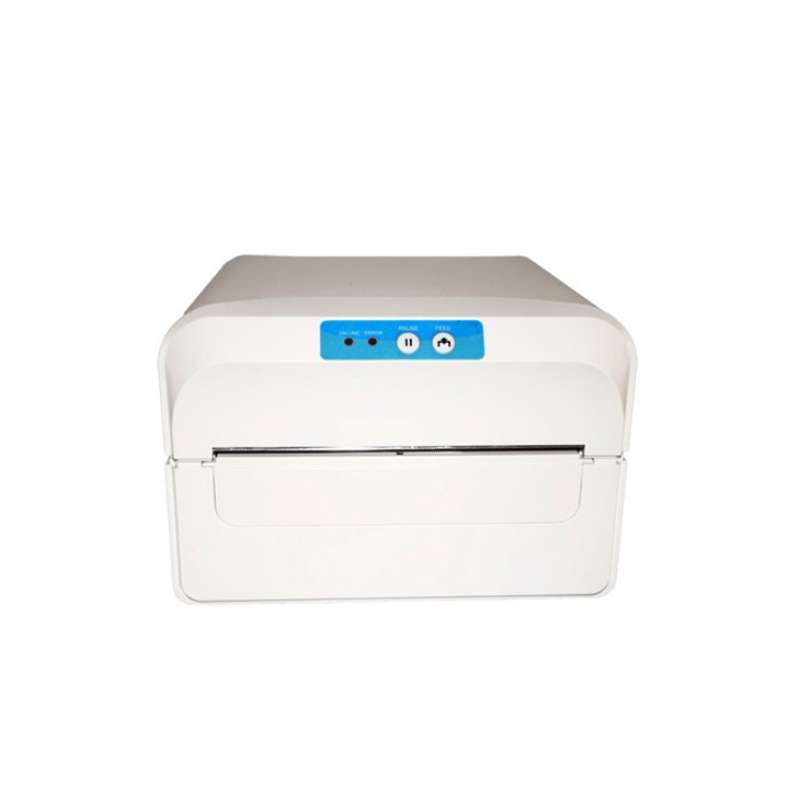

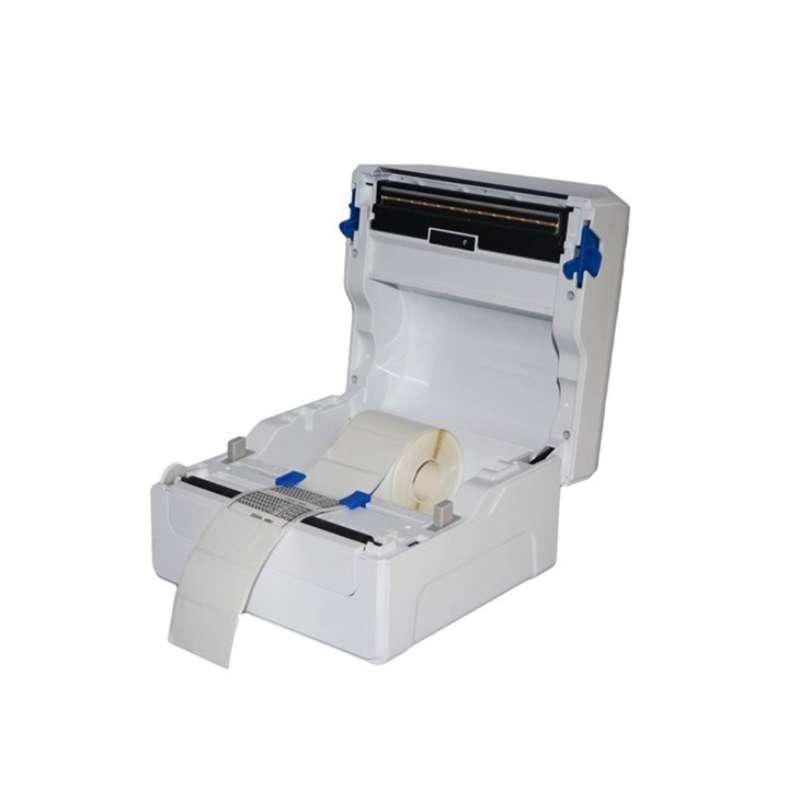

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| 6 inch label printer |
3.5 |
4 pcs/carton |
16 |
67*28*49 |
