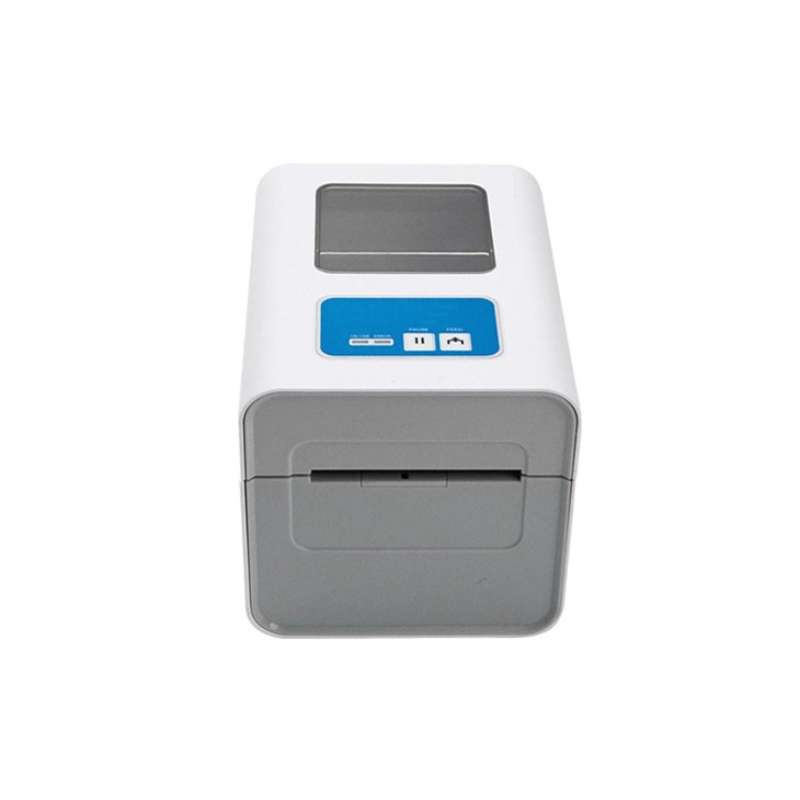

2833D Thermal Barcode Printer
Model: 2833D
Description: barcode label printer, barcode printer
Key parameter: 3 inch width (80mm)
USB, USB+Bluetooth, USB+Serial+Etherenet
2~8inch/sec
Features:
• High-speed printing: 2833D thermal barcode printer has an optimal speed of up to 200mm/s.
• First page rewind: Automatic paper detection and first page rewind feature to minimize paper waste.

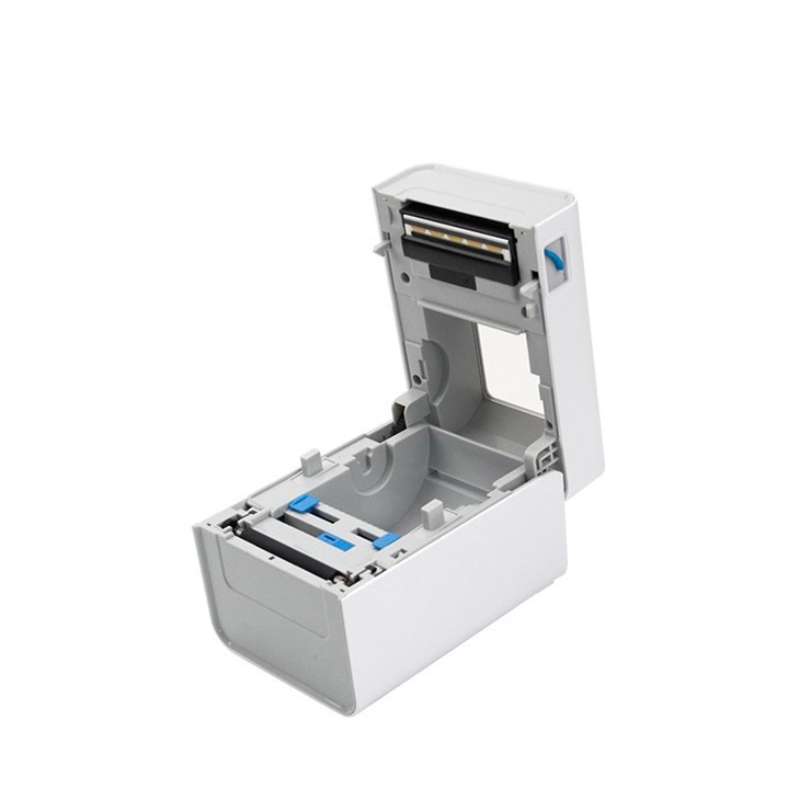

• User-friendly design: Top-pull cover design with smooth opening and closing, preventing hand injuries.
• Visual window: Provides real-time information about paper consumption.
• Appearance: Elegant curved side design, concave exit tray, and simplistic appearance.
Specification
|
Printer |
Print Method |
Direct thermal |
|
Resolution |
203 dpi |
|
|
Print Width |
80mm |
|
|
Print Speed |
2 ~ 8inch/s |
|
|

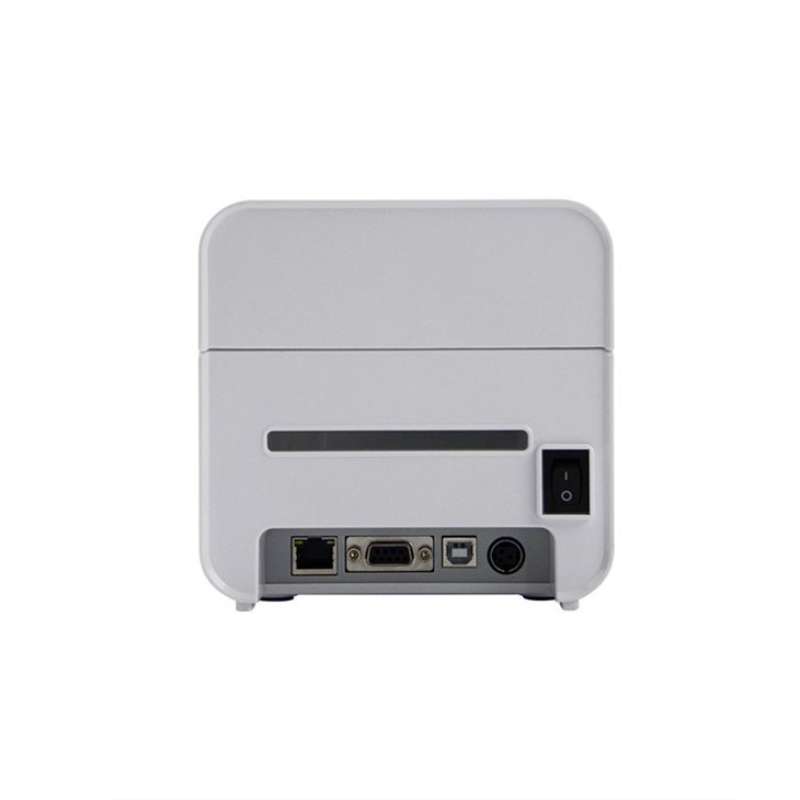

Interface |
USB, USB+Bluetooth, USB+Serial+Ethernet |
|
|
Print head temperature detect |
Thermal sensitive resistance |
|
|
Print Head Position detect |
Micro switch |
|
|
Paper sensor |
Photoelectric sensor |
|
|
Memory |
DRAM: 4M FLASH: 8M |
|
|
Command set |
TSPL |
|
| Print Reliability | 30km | |
|
Label |
Paper Type |
Thermal label, Adhesive thermal paper, sticker paper etc |
|
Paper Width |
Min.30mm(0.78"), Max.85mm(4.72") |
|
| Paper Roll Core Size | 25.4mm | |
|
Paper Diameter |
Max.100mm |
|
|
Paper Off Type |
Front paper out, tear off |
|
|
Bar Code |
Enlargement & Rotation |
1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation |
|
Character Size |
Font 0 ~ Font 8, TST24, TSS24 |
|
|
1D Barcode |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET,UPCA+2, UPCA+5, UPCE+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN16, QR code |
|
|
Graphics Processing |
Support BMP/PCX/BAS files |
|
|
Editing Software |
BarTender |
|
|
Operating |
Cash drawer Out |
24VDC/2.5A |
|
Power Supply |
AC 110V/220V, 50 ~ 60Hz, DC 24V/2A |
|
|
Work Environment |
Temperature: 5~45℃, Humidity: 20~90%RH |
|
|
Storage Environment |
Temperature: -20~55℃, Humidity: 20%~93%RH |
|
|
Physical |
Weight |
1.1kg |
| Dimension | 188*146*136 mm | |
|
Package Dimension |
295*215*185 mm |
Packing
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| 2833D Thermal Barcode Printer |
2 |
6 pcs/carton |
15 |
68*29*50 |
Application:
■ Powerful hardware configuration with a maximum print speed of 200mm/s, ensuring clear print results.
■ Automatic paper detection and first page rewind feature for fast size detection, positioning, and automatic paper rewinding.
■ Automatic paper positioning to prevent print offset.
■ User-friendly top-pull cover design with a good opening and closing feel, which is not easy to break and improves the overall user experience.
■ 3inch thermal barcode printer, paper width of 82mm, with an effective print width of 80mm.
■ High-quality print head with excellent thermal imaging, clear print effects, and long-lasting stability.
■ Visual window design to show print status at a glance.
■ 2833D Thermal Barcode Printer is widely used in various industries such as supermarkets, restaurants, bakeries, fashion, and logistics for label printing.
