6 Inch Thermal Printer
Model: 6200DC
Description: Thermal printer, sticker printer, thermal label printer
Key parameter: 160mm paper width (6 inch)
USB+Serial+LAN
5inch/sec
With auto cutter
Features:
1. 6 Inch Thermal Printer, outstanding performance print head, clearer and work better
New quality print head, 203DPI clear and outstanding.

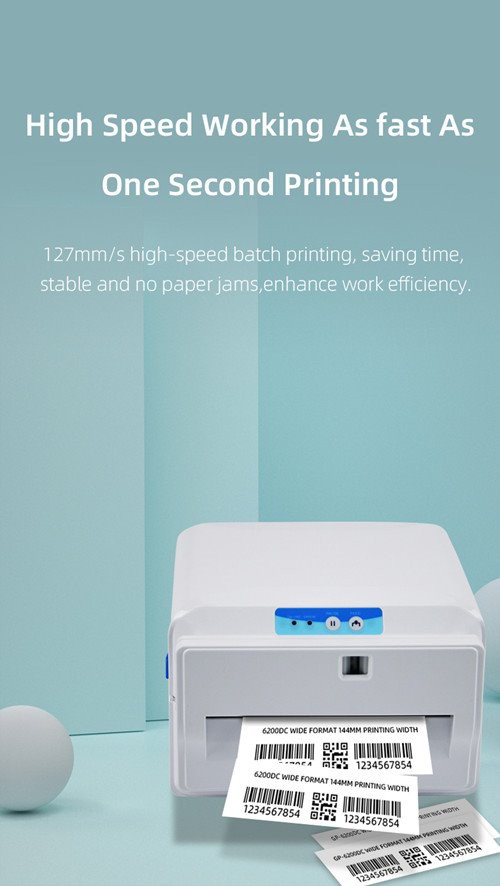

127mm/s high speed batch printing, saving time, stable and no paper jams, enhance work efficiency.
2. 6 Inch Thermal Printer, large label printer, Flat and simple style, saving space, print easily and freely at anytime anywhere
Flat integrated design, simple outside, proficient inside.

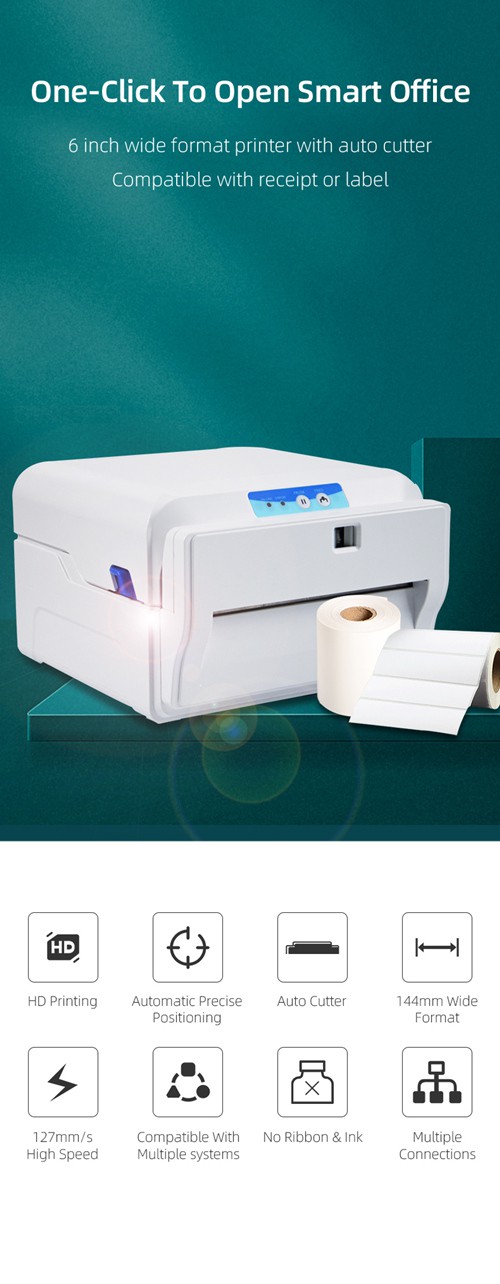

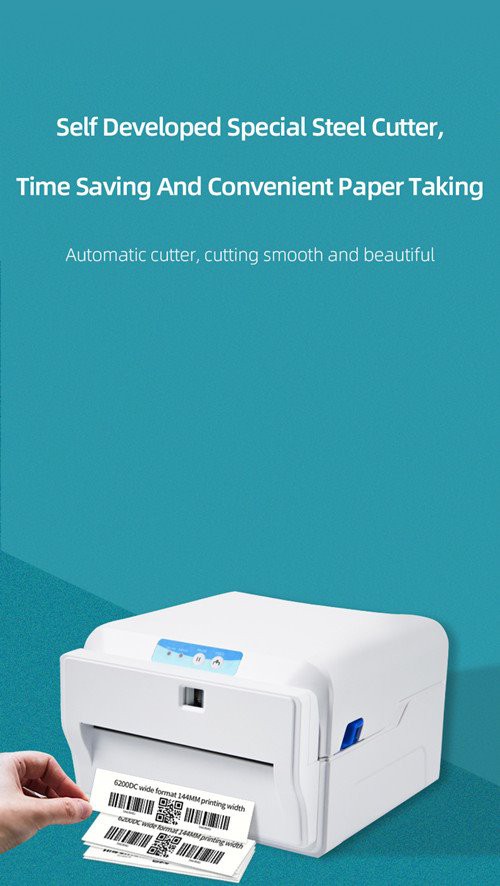

6 inch wide format printer with auto cutter, compatible with receipt and label.

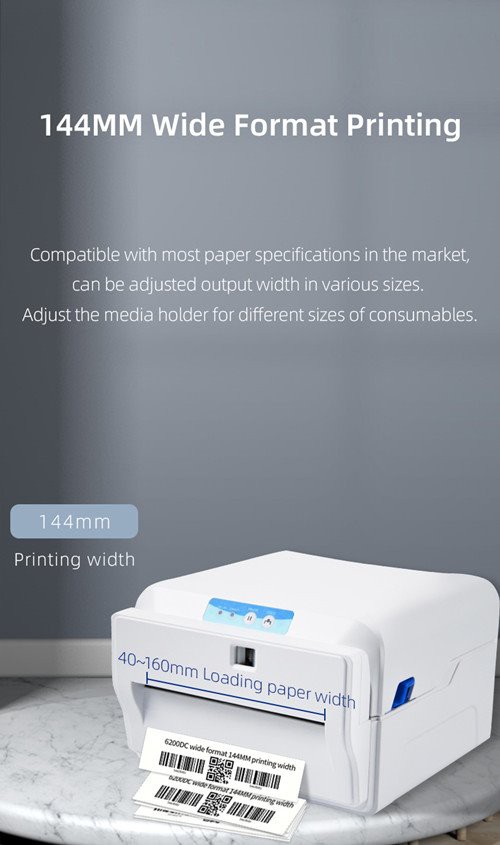

144mm wide format printing, compatible with most paper specifications in the market.
Can be adjusted output width in various sizes, adjust the media holder for different size of consumables.
3. Barcode label printer, easy printing with USB or Ethernet, easy to use

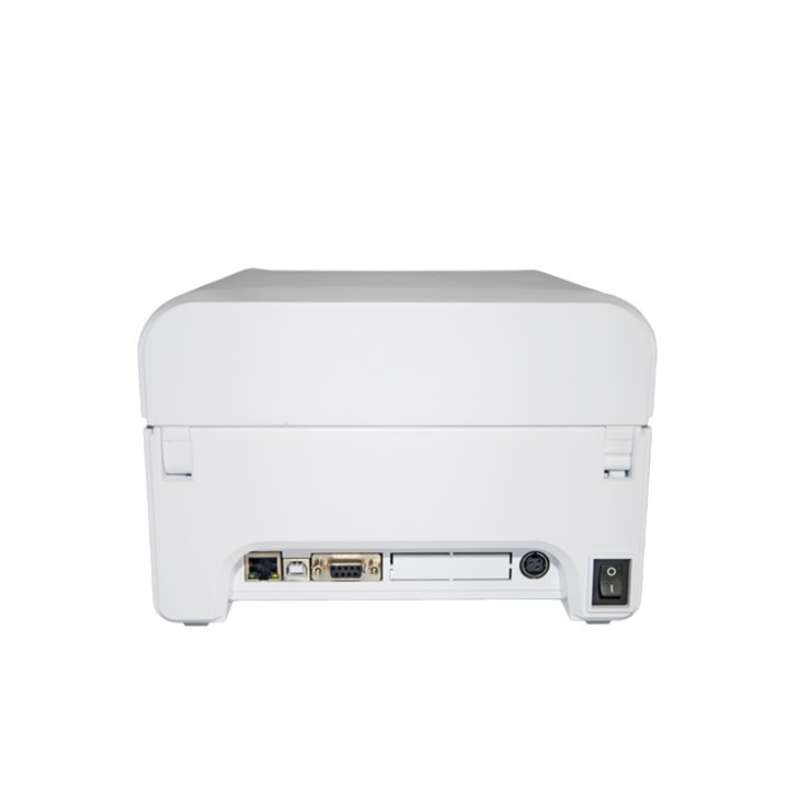

6 Inch Thermal Printer Port: USB + serial + Ethernet.
Multiple connection methods, directly connect and print, convenient and worry-free, enjoy a new experience of convenient printing.
4. Label printer, calm and efficient, suitable for major industries
Easy to deal with various industries, support for express delivery, retail, medical, service and manufacturing, especial printing shipping labels, printing medical prescriptions ect.
Specification
|
Printing |
Print Method |
Direct Thermal |
|
Command |
TSPL |
|
|
Print Resolution |
203 dpi |
|
|
Print Speed |
2~5 inch/s (51-127mm/s) |
|
|
Print head temperature detect |
Thermal sensitive resistance |
|
|
Cover open detect |
Microswitch |
|
|

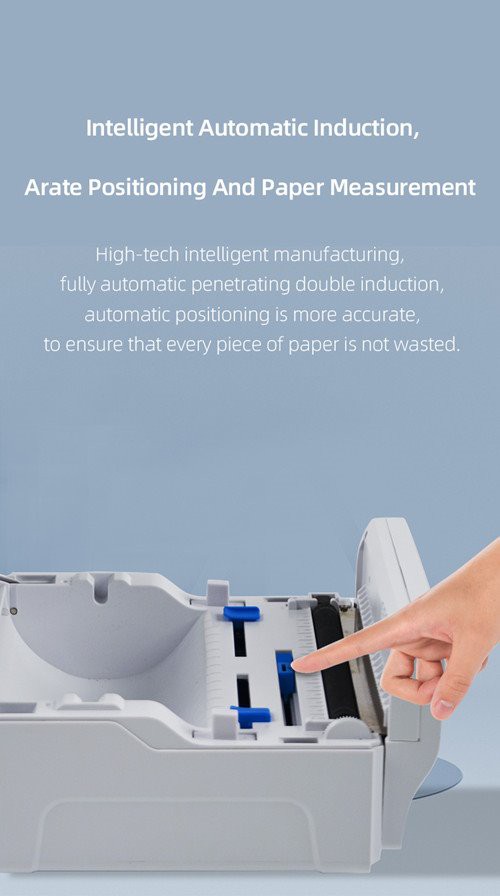

Paper sensor |
Photoelectricity |
|
|
Buffer |
DRAM:8M FLASH:4M |
|
|
Interface |
USB+Serial+Ethernet |
|
|
Thermal Paper |
Paper Width |
40mm ~ 160mm |
|
Paper Roll OD |
100mm (Max.) |
|
|
Paper Type |
Continuous, black mark, gap, punched hole, Fan fold and more labels |
|
|
Paper way out |
Front paper out |
|
|
Character |
Enlargement & Rotation |
1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation |
|
Character Size |
Font 0 ~ font 8 |
|
|
1D Barcode |
CODE128, EAN128, ITF, CODE39, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14 |
|
|
2D Barcode |
QR code |
|
|
Graphics Processing |
Support BMP/PCX/BAS files |
|
|
Operating |
Power supply |
Input: AC 110V/240V, Output: DC24V/2.5A, 60W |
|
Air pressure |
86~160kPa |
|
|
Operation Condition |
Temperature: 5~45℃(41~113℉), Humidity: 25~85%RH |
|
|
Storage Condition |
Temperature: -10~50℃(-10~122℉), Humidity: 10%~90%RH |
|
|
Physical |
Printer Weight |
Approx. 2.5KG |
|
Package Dimensions |
370*260*235mm (WxDxH) |

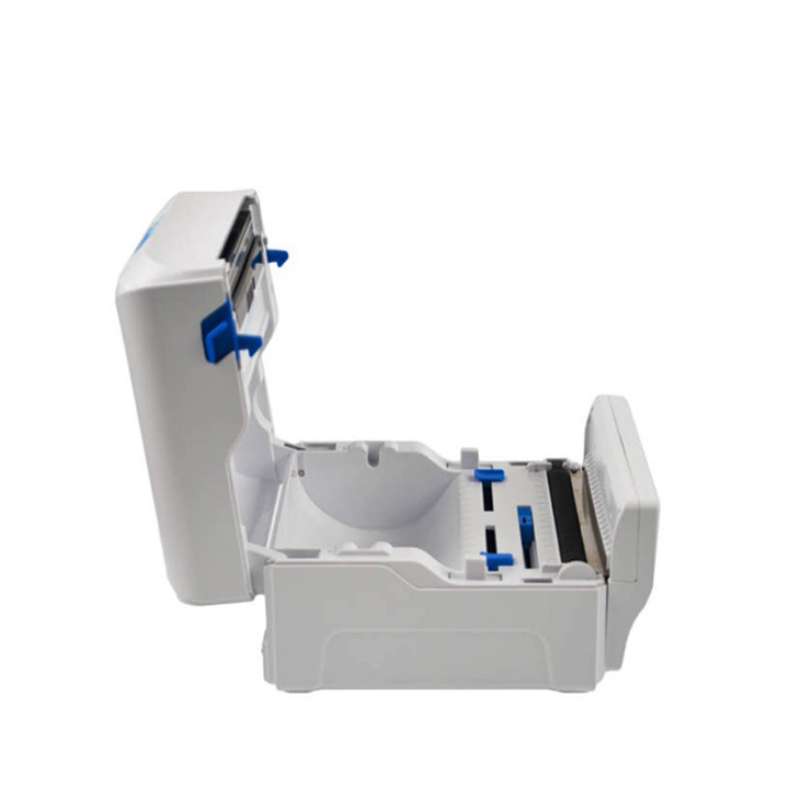

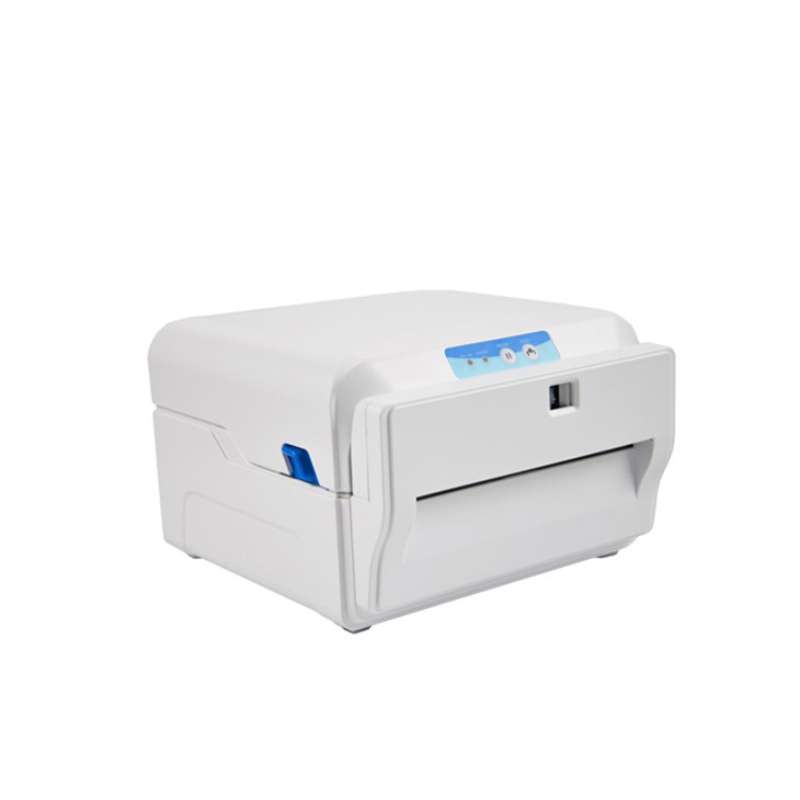

Product Show:
Application:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Sticker label printer 6200DC |
3.5 |
4 pcs/carton |
16 |
67*28*49 |
Q and A:
1. About 6 Inch Thermal Printer 6200DC sample:
Please kindly contact us by informing your requirements, we will recommend the printer model based on your request, and then send the sample by express such as DHL or FedEx or UPS immediately once the sample order confirmed.
