4 Inch Thermal Printer
Model: 1924D
Description: Barcode Printer, Shipping printer
Key parameter: 4 inch width
USB Port
2~8inch/sec
Features:
1. Barcode Sticker Printer with high quality print head
203 DPI print resolution.
2~8inch/s high speed printing.
4 Inch Thermal Printer support media width from 40mm to 120mm.
Designed for large label roll, printer inner volume is fit for 5” OD (outer diameter) paper roll.
4 Inch Thermal Printer supports 4x6 thermal labels.
2. USB label printer, a single interface, easy to use
4 Inch Thermal Printer supports common 1D barcode and 2D barcode printing.
BarTender software for label editing easily.
Automatic paper calibration.
Automatic temperature control for durable printing.
Modular designs will satisfy different Customers' demands.
User-friendly control.
Specification
|
Printing |
Print mode |
Direct Thermal |
|
Print Resolution |
203 dpi |
|
|
Print Speed |
2~8 inch/s |
|
|
Print Length |
Max. 2286mm (90") |
|
|
Dot Density |
203dots/inch (8dots/mm) |
|
|
Dot Size |
0.125x0.125mm (1mm=8dots) |
|
|
Print Head life |
50KM |
|
|
Interface |
USB |
|
|
Thermal Label roll |
The Max. capacity of internal paper roll diameter |
127mm (5") OD |
|
Paper Type |
Thermal paper, Thermal label, Adhesive thermal paper, continuous paper |
|
|
Paper Rolling Up Method |
Printing side outward rolling |
|
|
Paper Width |
Max.120mm Min.40mm |
|
|
Paper Thickness |
Max. 0.254mm (10mil) Min. 0.06mm (2.36mil) |
|
|
Paper Roll Core Size |
25.4mm~38mm (1"~1.5") |
|
|
Paper Gap |
Min. 2 mm (0.09") |
|
|
Label Length |
10~2286mm (0.39"~90") |
|
|
Character |
Enlargement & Rotation |
1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation |
|
Character Size |
Font 0 ~ font 8 |
|
|
Barcode |
Code39, Code93, Code128 subsets A, B, C, Codebar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, china POS, ITF14, QR code |
|
|
Graphics Processing |
Support BMP/PCX/BAS files |
|
|
Editing Software |
BarTender UltraLite |
|
| Power |
Power supply |
Input: AC 110V/240V Output: DC24V/2.5A, 60W |
|
Physical |
Printer Dimensions |
285*210*180mm (WxDxH) |
|
Printer Weight |
Approx. 2.1KG |

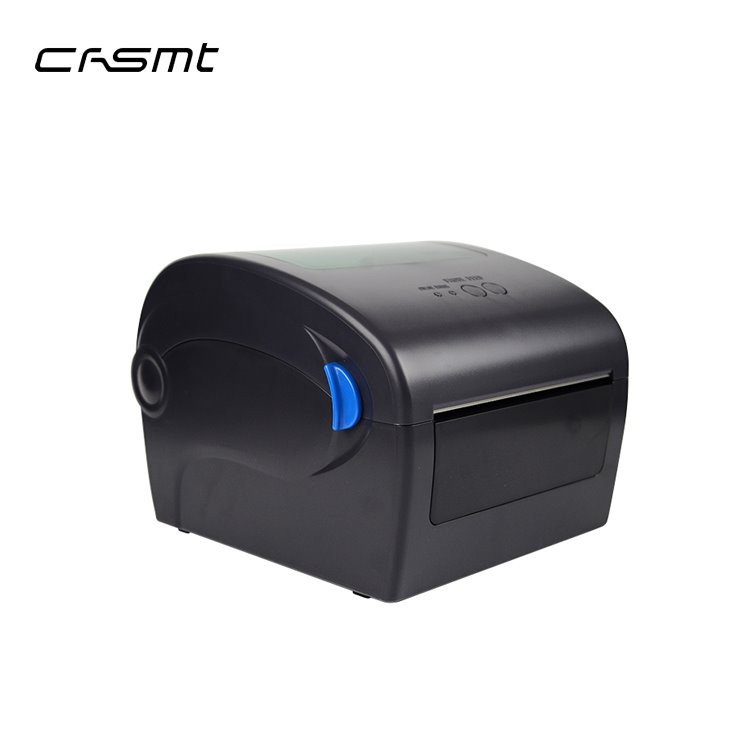

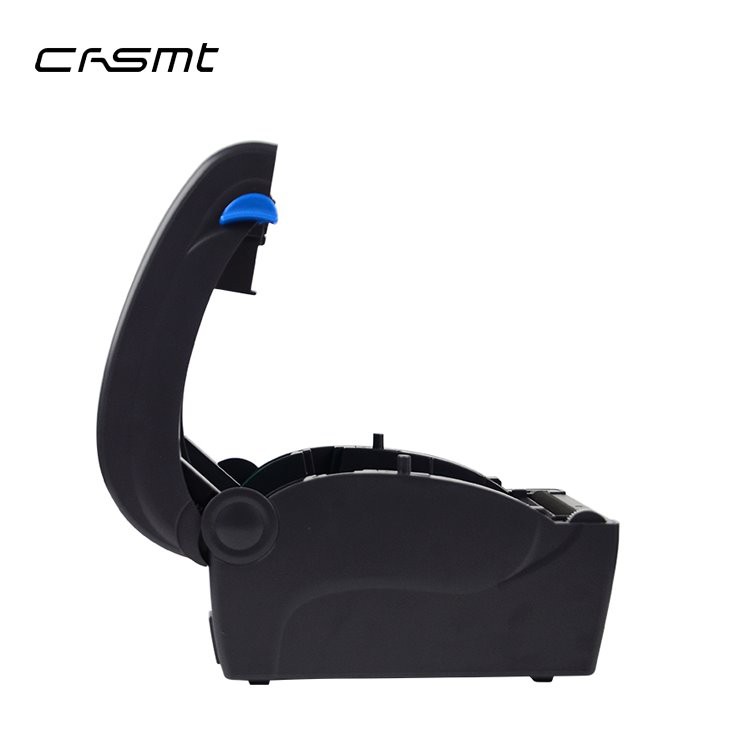

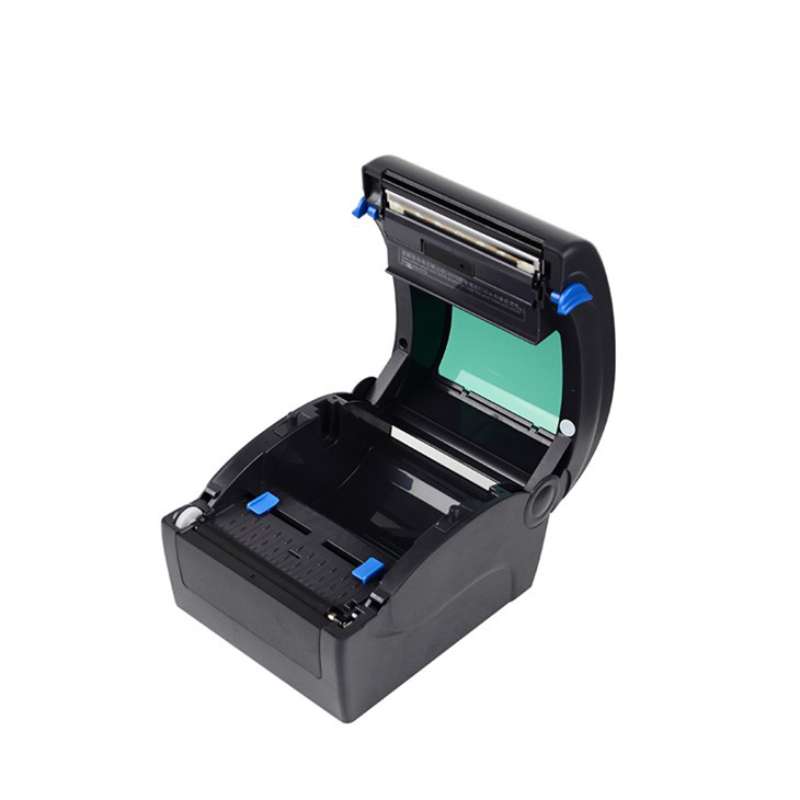

Product Show:
Application:
Thermal label printer 1924D is designed for real-time and batch label printing, which are applicable in the field of transportation, logistics, post, retail sale etc.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Shipping label printer 1924D |
2.3 |
6 pcs/carton |
15 |
73*34*49 |
Q and A:
About 4 Inch Thermal Printer 1924D sample:
Please kindly contact us by informing your requirements, we will recommend the printer model based on your request, and then send the sample by express such as DHL or FedEx or UPS immediately once the sample order confirmed.
