Thermal Shipping Printer
Model: 9220
Description: Shipping label printer, Thermal label printer
Key parameter: 110mm paper width (4inch)
USB, USB+LAN, USB+Bluetooth，(USB+WiFi, USB+LAN+WiFi, USB+Bluetooth+WiFi for option)
160mm/s
Features:

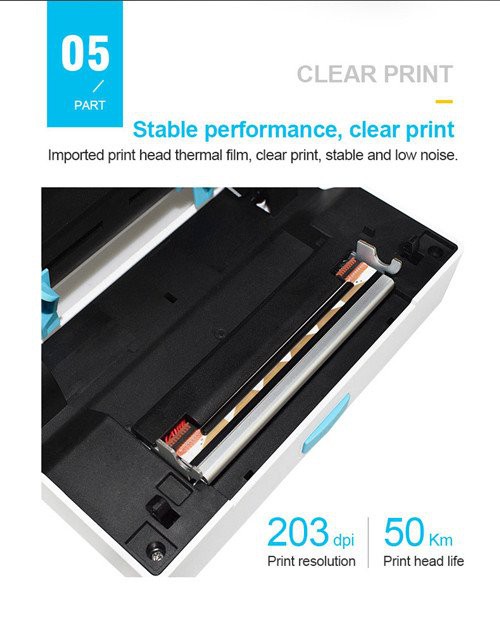

1. Label printer, stable performance, clear print, large width printed
With imported pint head thermal film, high print resolution, print clearly, stable and low noise.

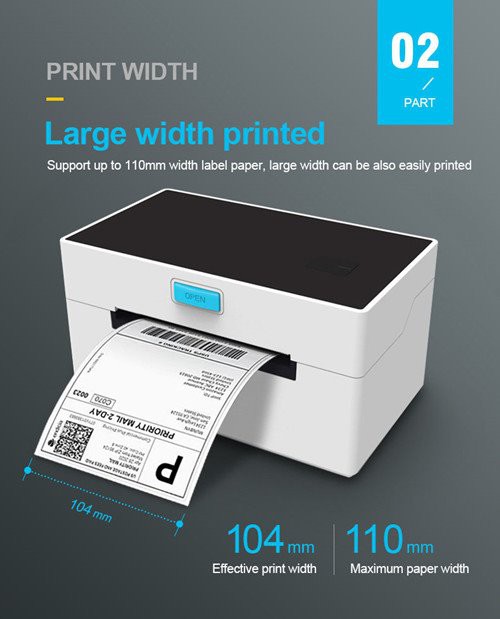

Thermal Shipping Printer supports up to 110mm width label paper.

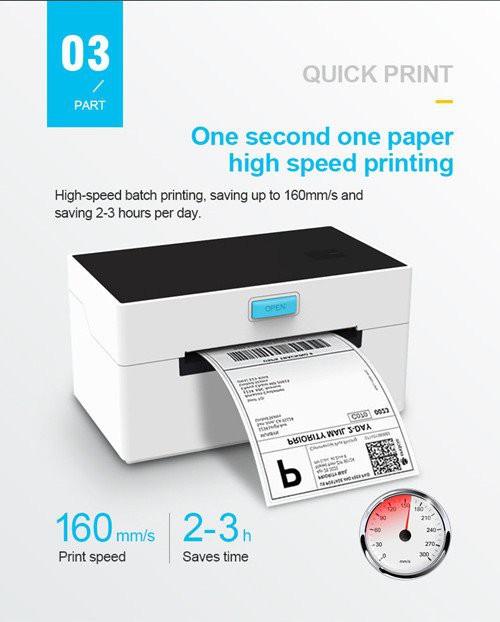

160mm/s high speed batch printing.

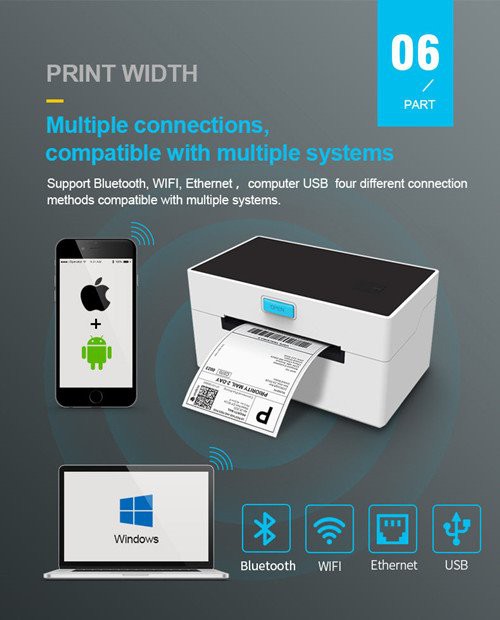

2. Wireless thermal label printer, multiple connections, compatible with multiple systems
Bluetooth, Ethernet, computer USB for connection way option, support android, iOS and windows system.
3. Sticker printer, automatic paper measurement, more accurate positioning

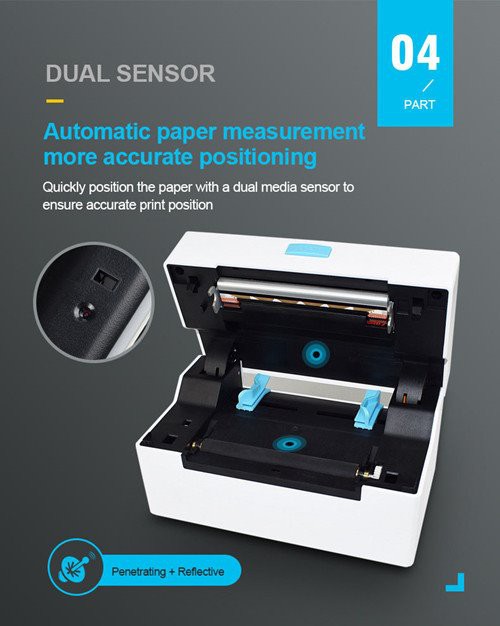

Quickly position the paper with a dual media sensor to ensure accurate print position.

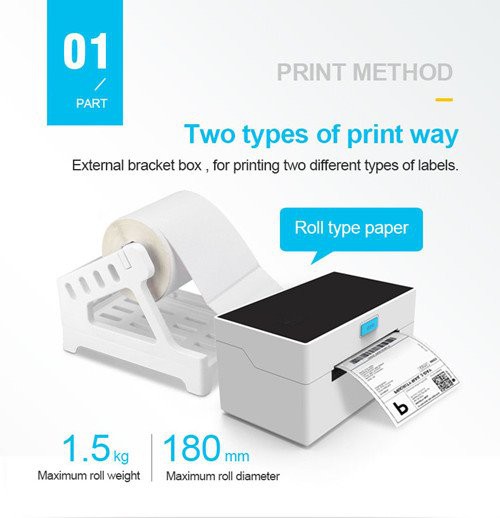

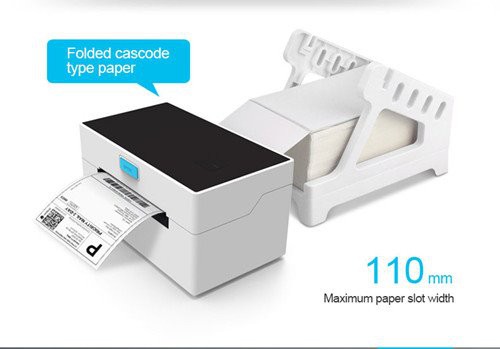

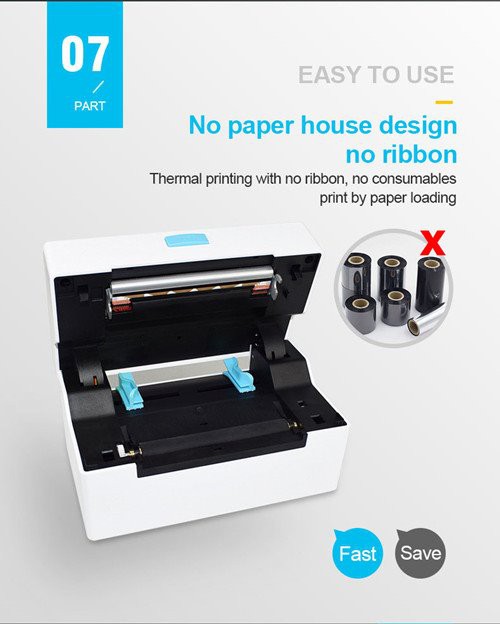

Two types of thermal paper roll: folded type, and roll type.
Thermal Shipping Printer supports express electronic waybill, self-adhesive label, 1D barcode, QR code, PDF417.
Specification
|
Printing |
|
|
Interfaces |
USB, USB+LAN, USB+Bluetooth， (USB+WiFi, USB+LAN+WiFi, USB+Bluetooth+WiFi for option) |
|
Print Command |
TSPL (CPCL, ESC/POS compatible) |
|
Print Method |
Direct Thermal |
|
Print Speed |
160mm/sec Max. |
|
Max Resolution |
203DPI |
|
Sensor |
Transmissive and Reflective |
|
Logo |
Support downloading and printing |
|
Font |
ASCII: 8*12, 9*17, 12*20, 12*24, 14*10, 14*25, 16*24, 21*27, 24*32, 32*48 |
|
GB18030: 24*24 |
|
|
Big5: 24*24 |
|
|
Barcode |
1D: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128 |
|
2D: QR CODE,PDF417 |
|
|
OS supported |
Win2003, WinXP, Win7, WIN8, WIN10, MACOS, Support IOS, Android |
|
Thermal head (LIFE) |
about 50km or 100millions pulses |
|
Thermal paper rolls |
|
|
Type |
continuous paper, label paper, folded paper, tag paper |
|
Width |
110mm |
|
Roll Diameter |
100mm |
|
Paper Thickness |
0.06-0.30 mm |
|
Physical |
|
|
Dimension |
20*11.5*11cm |
|
Unit Weight |
980g |
|
Pieces Per CTN |
12 Pieces |
|
Color |
White and Black |
|
CTN Dimension |
45 x 40 x 42cm |
|
Carton Weight |
20kgs |
|
Environmental |
|
|
Temperature |
Working: +0°C~ 50°C(no condensation) |
|
Humidity |
Working: 20% ~ 85% RH (no condensation) |
|
Warranty |
12 months at least |
|
Accessories |
|
|
Data Cable |
1 x USB Cable |
|
CD Driver |
1 Piece |
|
Adapter |
1 Piece |
|
Manual |
1 Piece |
|
Power Cable |
1 Piece |

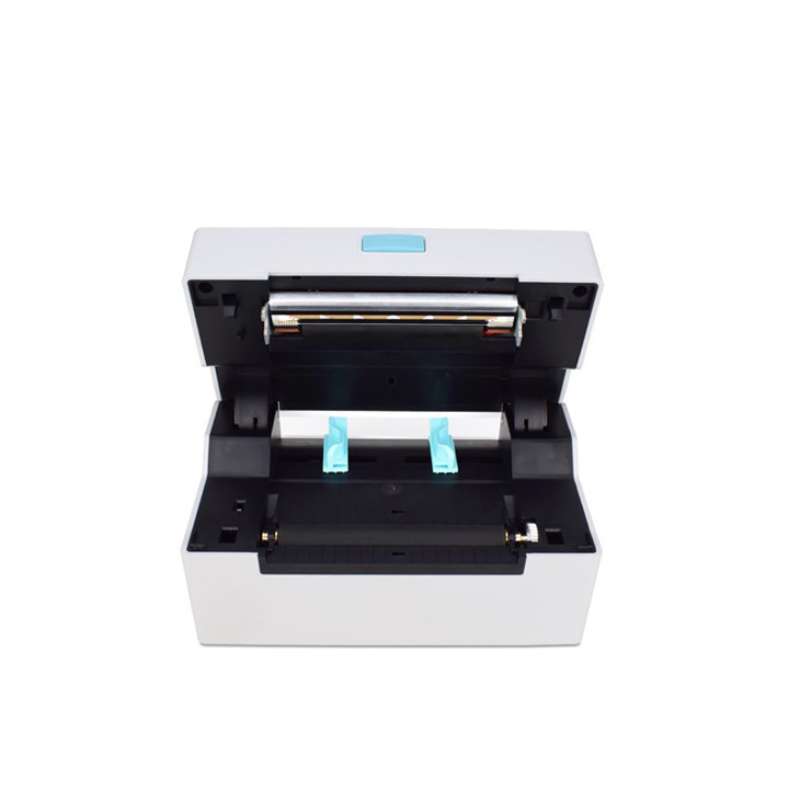

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Barcode Label printer 9220 |
1.6 |
12 pcs/carton |
20 |
45*40*42 |
Application:
Thermal Shipping Printer 9220 which is adapted to kinds of express electronic waybills, built-in size templates, and supports different types of label paper for clear print results.
