8300TC Barcode Printer
Model: 8300TC
Description: Thermal Barcode Printer, Thermal Label printer
Key parameter: 3 inch width (80mm)
With auto cutter
Label and receipt printing
USB+serial , USB+Serial+Bluetooth, USB+serial+WiFi
127mm/sec
Features:

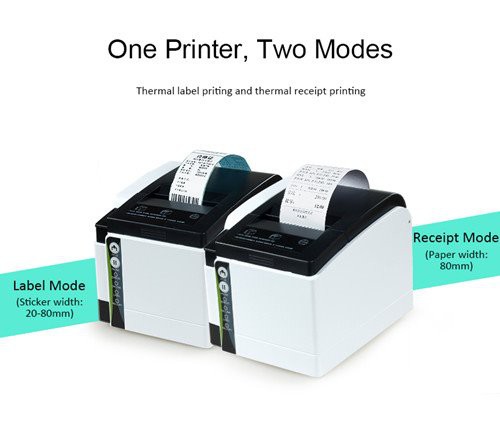

The 8300TC Barcode Printer is a versatile 2-in-1 device that combines the functions of both a label printer and a receipt printer. This smart printer is designed to make your business more efficient by simplifying the printing process. It is compatible with both ESC/POS and TSPL command sets, which means that it can easily integrate with your existing system.
The 8300TC Barcode Printer is a highly effective and efficient device that comes with an automatic cutter, making printing and cutting a breeze. With the label and receipt auto-cut function, you can produce clean and easy-to-read prints every time.
This printer is designed to handle a wide range of printing media with a width of 25mm to 80mm. This feature ensures that it can accommodate a variety of label and receipt sizes and make operations easier and more convenient. Additionally, the printer operation is user-friendly, and it is easy to set up and use, even for those who are new to the world of printing technology.
In summary, the 8300TC Barcode Printer is a must-have device for any business that requires quick and efficient printing, cutting, and labeling. Its compatibility with various command sets and its smart design make it a highly effective and convenient tool for businesses in need of streamlined printing solutions.
Specification
|
8300TC Barcode Printer |
Label mode |
Receipt mode |
|
Printing method |
Thermal |
|
|
Dot density |
203DPI |
|
|
Print width |
80mm (max.) |
72mm (max.) |
|
Print speed |
127mm/sec (max) |
160mm/sec |
|
Interface |
Serial+USB, Serial+USB+Bluetooth, Serial+USB+WiFi |
|
|
Label size Max |
80mmx200mm |
Unlimited |
|
Buffer |
DRAM:128KB FLASH:128KB |
NV FLASH:60KB |
|
Command |
TSPL |
ESC |
|
Barcode type |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODEBAR, UPC_AUPCA+2, UPCA+5UPC_E, UPCE+2, UPC_E+5, QR Code |
UPC_A, UPC_E, JAN13(EAN13), JAN8(EAN8), CODE39, CODEBAR, ITF, CODE93, CODE128, QR Code |
|
Character font |
GB18030, simplified, BIG5, Korean, Japanese, ANK Character |
GB18030, simplified, BIG5, Korean, Japanese, ANK Character |
|
Font and character |
Font 1：1x1.5mm（8x12dot） |
ANK Font A：1.5x3.0mm（12x24dot） |
|
Font 2-8: refer to the progarmming manual |
Font B：1.1x2.1mm（9x17dot） |
|
|
simplified/traditional Chinese: 3.0x3.0mm（24x24dot) |
GB18030, simplified/traditional Chinese, Korean: 3.0x3.0mm（24x24dot） |
|
|
Image |
Single color PCX, BMP image file can be download into Flash |
Support different dot density bitmap and download bitmap to print |
|
Paper type |
Thermal paper roll, adhesive thermal paper |
Thermal paper roll |
|
Paper width |
25~80mm (including backing paper) |
80mm |
|
Paper diameter |
80mm max. |
|
|
Paper cutting way |
Top paper out, auto cut (full cut when label width less than 45mm, others partial cut) |
Partial cut |
|
Input |
DC24V/2A |
|
|
Cash drawer output |
DC12V/1A |
|
|
Power |
Input：AC 110V/220V,50～60Hz, Output：DC 24V/2A |
|
|
Dimension |
192mm*145mm*147mm (LxWxH) |
|
|
Weight |
1.4kg |
|

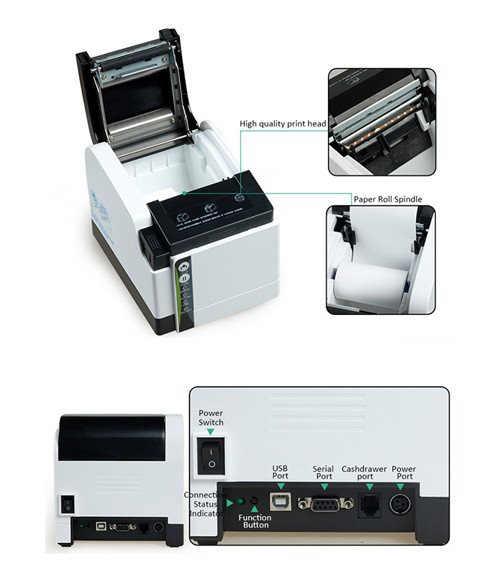

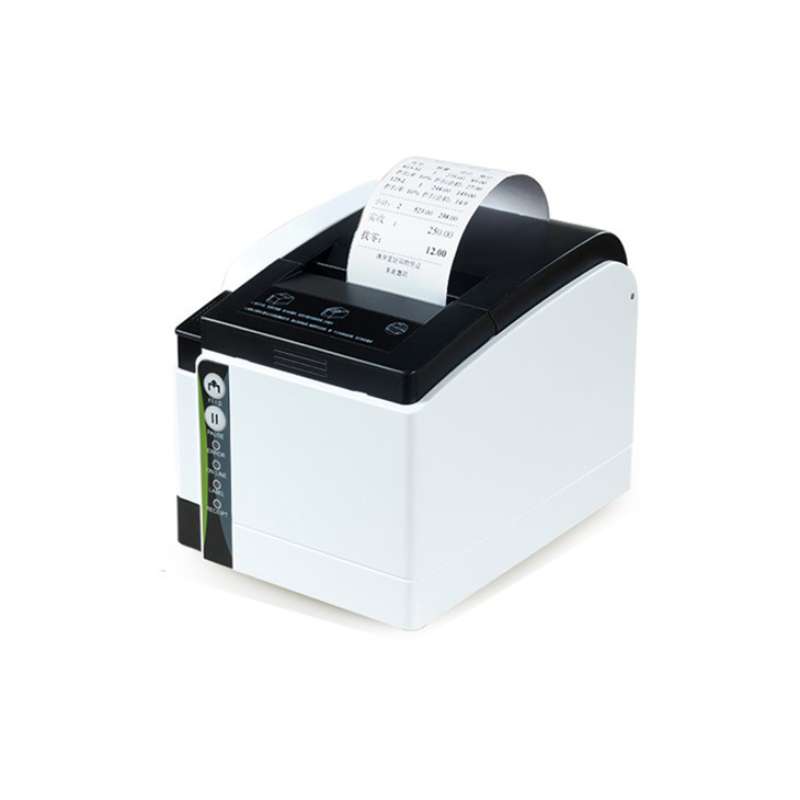

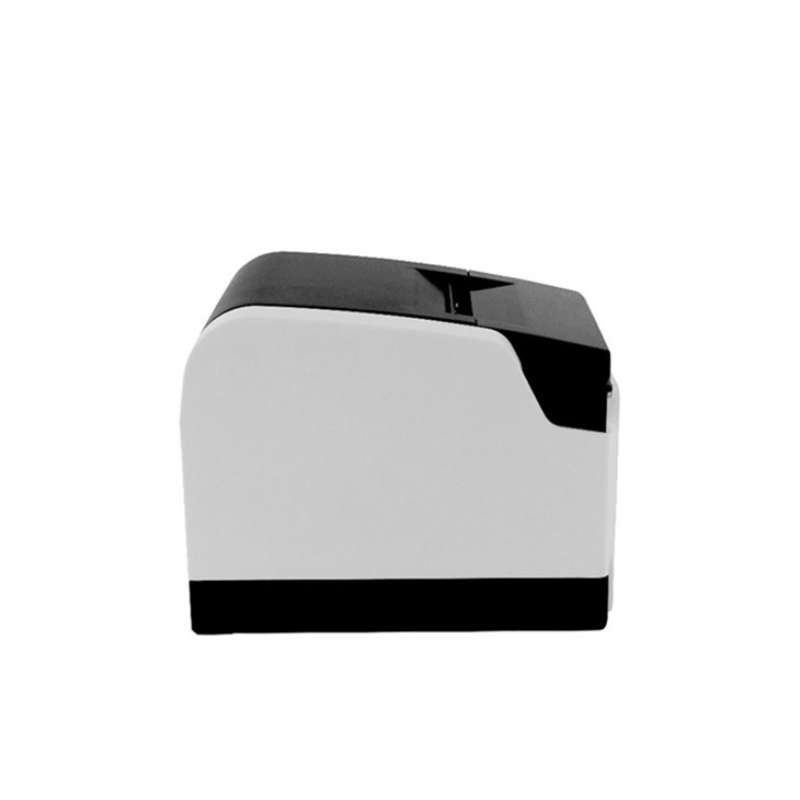

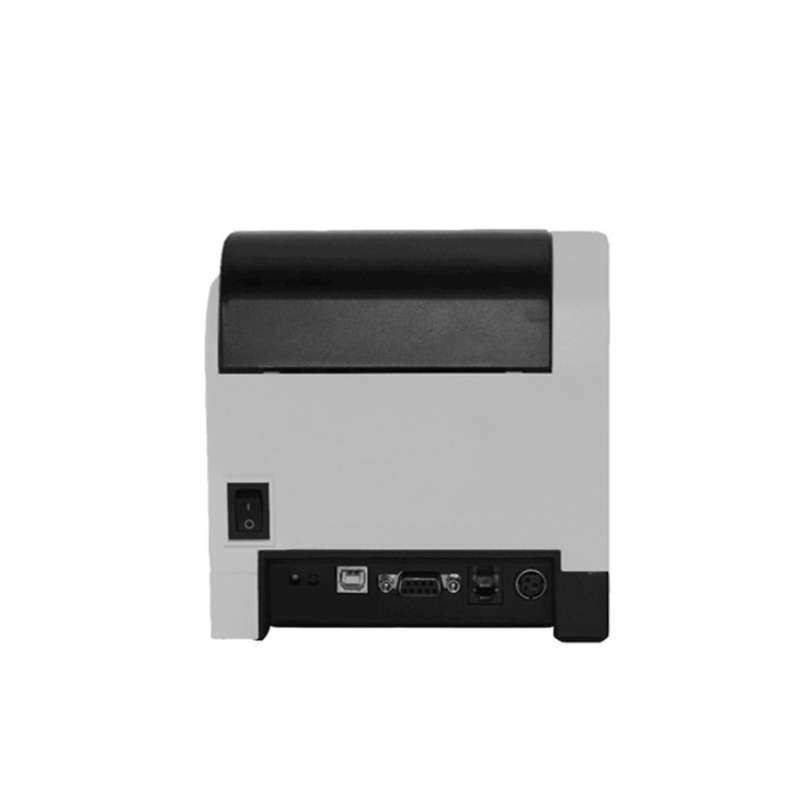

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
QR code sticker printer 8300TC |
2.3 |
6 pcs/carton |
15 |
69*34*41 |
Q and A:
About 8300TC Barcode Printer to print self-test page:
1. 8300TC Barcode Printer usefulness: showing the printer itself information, including version and the current configuration; and inspecting the printer if work or not.
2. 8300TC Barcode Printer operation: Turn off the printer power. Press and hold on FEED button, and then turn on the printer power, after printing out the self-test page, release FEED button.
