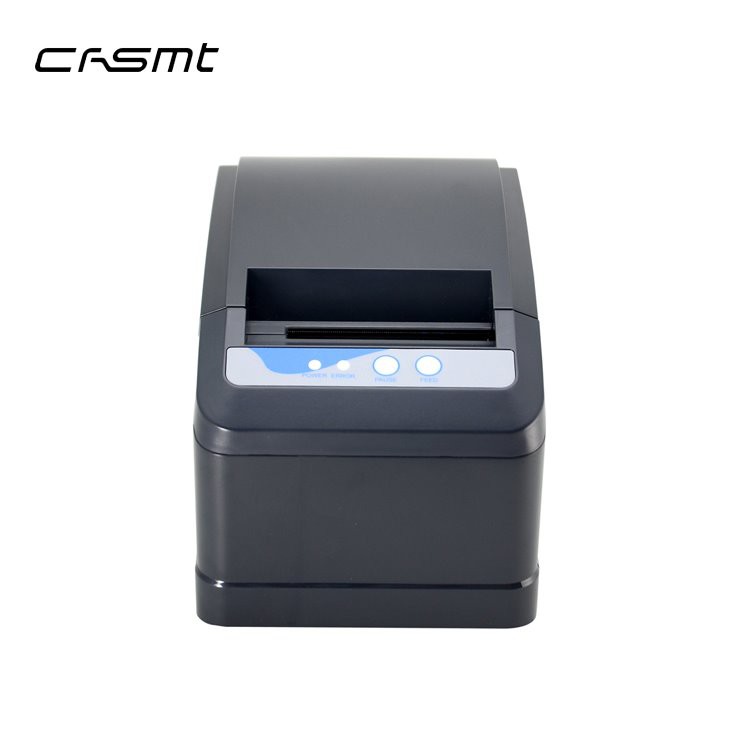

Thermal Label Printer

3120TUB Barcode Printer

Model: 3120TUB
Description: Thermal label printer, Barcode label printer
Key parameter: 80mm paper width (3 inch)
USB port
5inch/sec

Features:

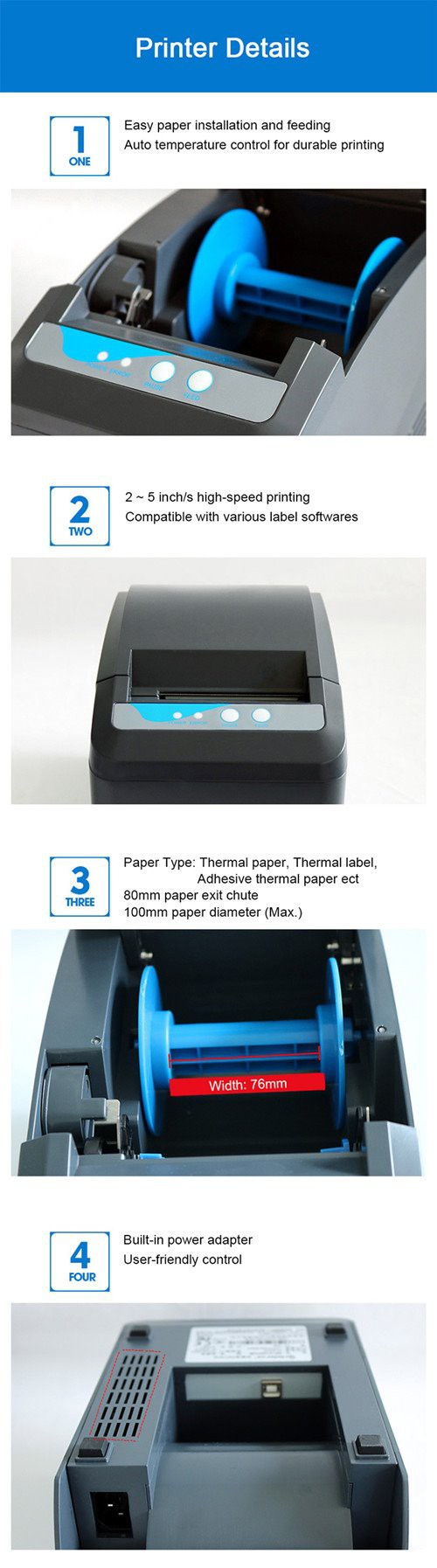

1. Thermal label printer, 203DPI clear and outstanding, work better.

2. 5 inch/s high-speed printing.

3. 3120TUB Barcode Printer is compatible with various label software.

4. 80mm paper exit chute.

5. 100mm paper diameter.

6. Label tear off mode.

7. 3120TUB Barcode Printer supports BMP/PCX/BAS files download.

8. 3120TUB Barcode Printer supports English, Chinese and Korean languages etc.

9. Auto temperature control for durable printing.

10. Built-in power adapter design, space saved, user-friendly control.

Specification

Printing	Print Method	Direct thermal line
	Resolution	203 dpi
	Print Speed	2 ~ 5inch/s
	Interface	USB
	Print head temperature detect	Thermal sensitive resistance
	Print Head Position detect	Mircoswitch
	Paper sensor	Photoelectric sensor
	Memory	DRAM: 8M FLASH: 4M
	Command set	TSPL
Label roll	Paper Type	Thermal paper, Thermal label, Adhesive thermal paper
	Label Width	25-82mm
	Label Diameter	25 ~ 100mm
	Paper Off Type	Tear off
Fonts	Enlargement & Rotation	1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation
	Character Size	Font 0 ~ Font 8
	1D Barcode	Code39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, china POS, ITF14
	Graphics Processing	Support BMP/PCX/BAS files
	Editing Software	BarTender
Operating	Cash drawer Out	24VDC/2A
	Power Supply	AC 110V/220V, 50 ~ 60Hz, DC 24V/2A
	Work Environment	Temperature: 5 ~ 45℃, Humidity: 20 ~ 80%
	Storage Environment	Temperature: -40 ~ 55℃, Humidity: 10 ~ 93%
Physical	Weight	1.5kg
Physical	Dimension	227x152x143mm
