Direct Thermal Label Printer
Model: 2120TF
Description: Thermal label printer, thermal barcode printer, Sticker printer
Key parameter: 2 inch width (58mm)
Label and receipt printing
USB+Serial, USB+Serial+LAN, USB+Serial+Bluetooth
127mm/sec
Features:
Direct Thermal Label Printer 2120TF is designed for real-time and batch label printing, which is applicable in the field of transportation, logistics, post, retail sale, and etc. The thermal sticker printer 2120TF can be connected with other equipment with various interface cards, such as Serial, USB Bluetooth. It supports different paper media, including thermal paper roll, thermal label paper and sticker paper.
The Direct Thermal Label Printer 2120TF provides direct thermal printing at selectable printing speed of 2.0, 3.0, 4.0 and 5.0 inches per second. It accepts roll feed, die-cut and fan-fold labels. All common bar code formats are available. Font and bar codes can be printed in 4 directions and in 1 to 10 times enlargement size. High performance and efficiency of label printing save your time!
Barcode label printer 2120TF is a multifunctional printer which is combined label printer and receipt printer 2-in-1 and with U-disk function. There is software inside U-disk for easy installation. It is widely supplied to various application field such as supermarket, hospital, restaurant, bank, gas station, toll station ect as the good point of easy operation and reasonable price itself.
1. Direct Thermal Label Printer supports thermal sticker, direct thermal labels, thermal paper, and receipt paper ect.

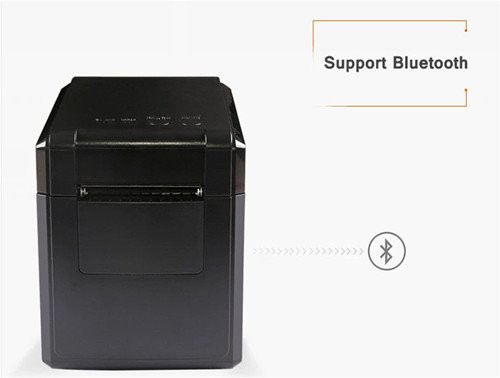

2. Three kinds of interface for option: USB+Serial, USB+Serial+LAN, USB+Serial+Bluetooth.
3. Direct Thermal Label Printer 2120TF supports the 110mm diameter of paper roll.
4. Support label roll width from 25mm to 58mm.

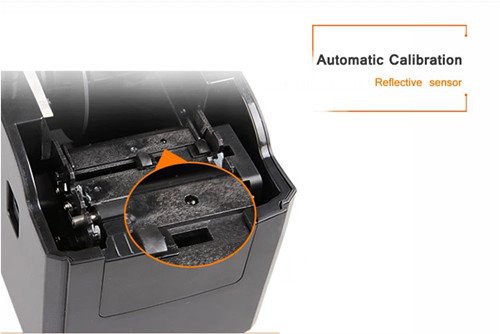

5. Automatic paper calibration.
6. Automatic temperature control for durable printing.
7. Over-temperature protection function.
8. Support label mode and receipt mode.
9. Compatible with ESC/POS and TSPL command sets.
10. Supports common 1D barcode and QR code printing.
11. BarTender software for label editing easily.
Specification
|
Printing mode |
Thermal Label Printing |
Thermal Receipt Printing |
|
Dot density |
203DPI |
203DPI |
|
Print speed |
101~ 127mm/sec |
90mm/sec |
|
Buffer |
Flash: 60K |
Flash: 60K |
|
Print head temperature detect |
Thermal sensitive resistance |
Thermal sensitive resistance |
|
Print head position detect |
Microswitch |
Microswitch |
|
Paper sensor |
Photoelectricity |
Photoelectricity |
|
Interface |
USB+Serial, USB+Serial+LAN, USB+Serial+Bluetooth |
USB+Serial, USB+Serial+LAN, USB+Serial+Bluetooth |
|
Barcode type |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODEBAR, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5， QR code |
UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39, CODEBAR, ITF, CODE93, CODE128, QR code |
|
Character font |
Font 0 ~ Font 8 |
ASCII font: Font A: 12x24dot; Font B: 9x17 dot Chinese(simplified and traditional): 24x24dot |
|
Character |
110 times enlargement in horizontal and vertical directions; Rotation printing (0°, 90°, 180°, 270°, 360°) |
1-8 times enlargement in horizontal and vertical directions; Rotation printing, inversion printing |
|
Image |
Single color PCX, BMP image file can be download into Flash and Dram |
Support different dot density bitmap and download bitmap to print |
|
Paper type |
Thermal paper roll / adhesive thermal paper |
Thermal paper roll |
|
Paper width |
20~60mm |
57.5±0.5mm |
|
Paper diameter |
110mm max. |
110mm max. |
|
Paper cutting way |
Tear off |
Tear off |
|
Input |
DC12V/4A |
DC12V/4A |
|
Cash drawer output |
DC12V/1A |
DC12V/1A |
|
Dimension |
220x110x160mm (LxWxH) |
220x110x160mm (LxWxH) |
|
Weight |
1.1kg |
1.1kg |

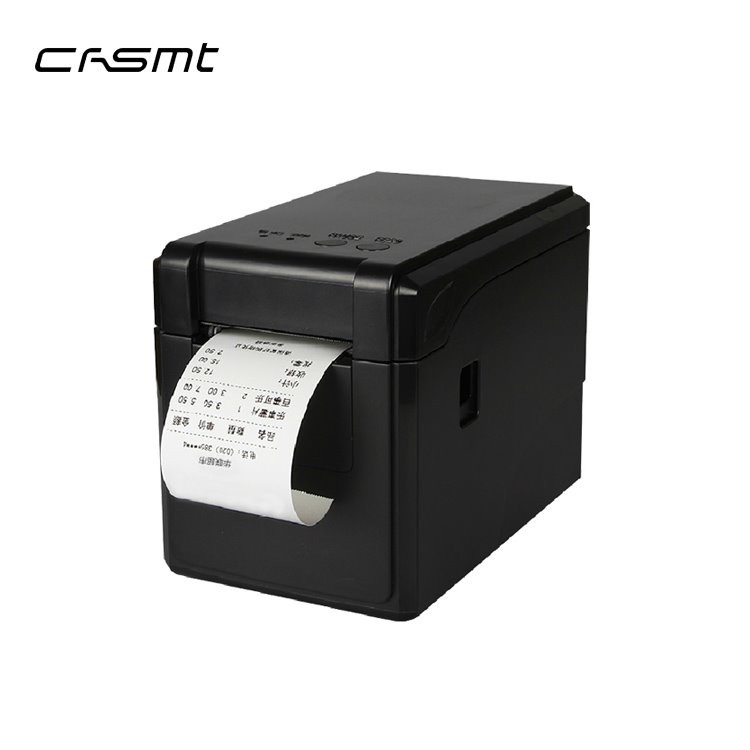

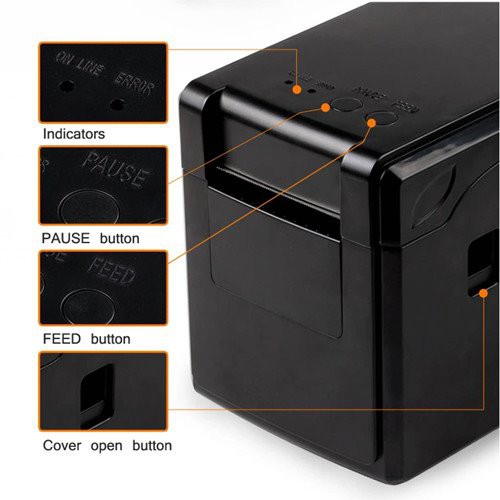

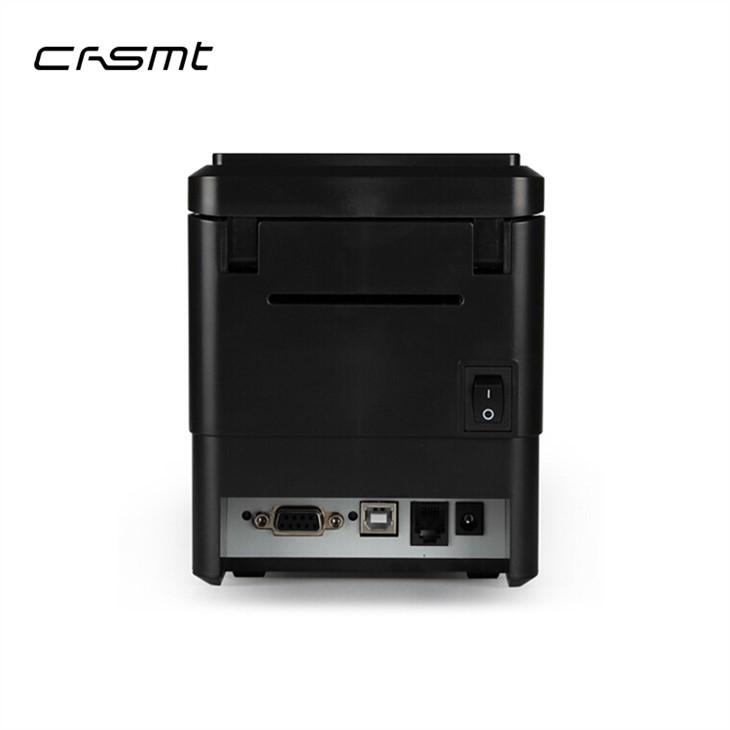

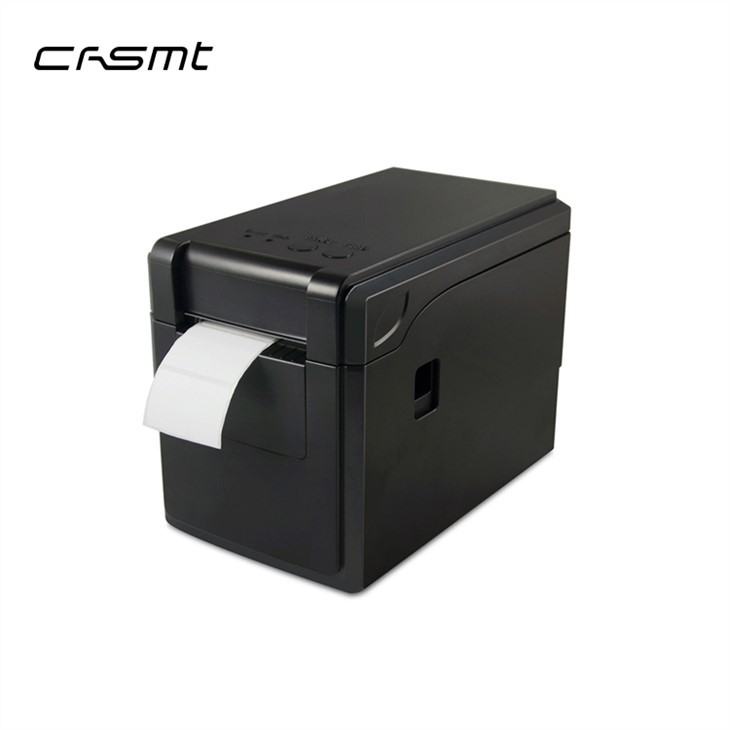

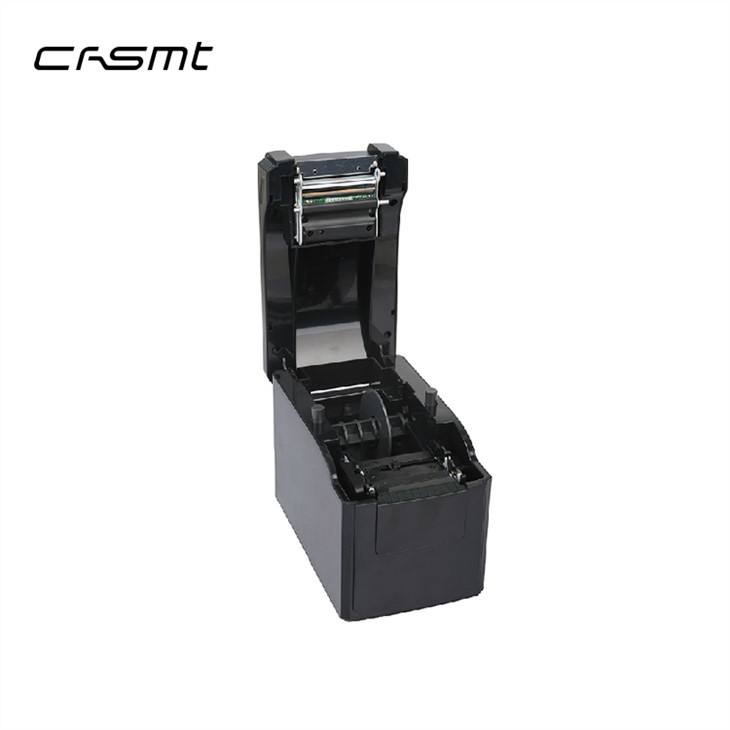

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Label and sticker printer 2120TF |
2 |
6 pcs/carton |
14 |
69*34*41 |
