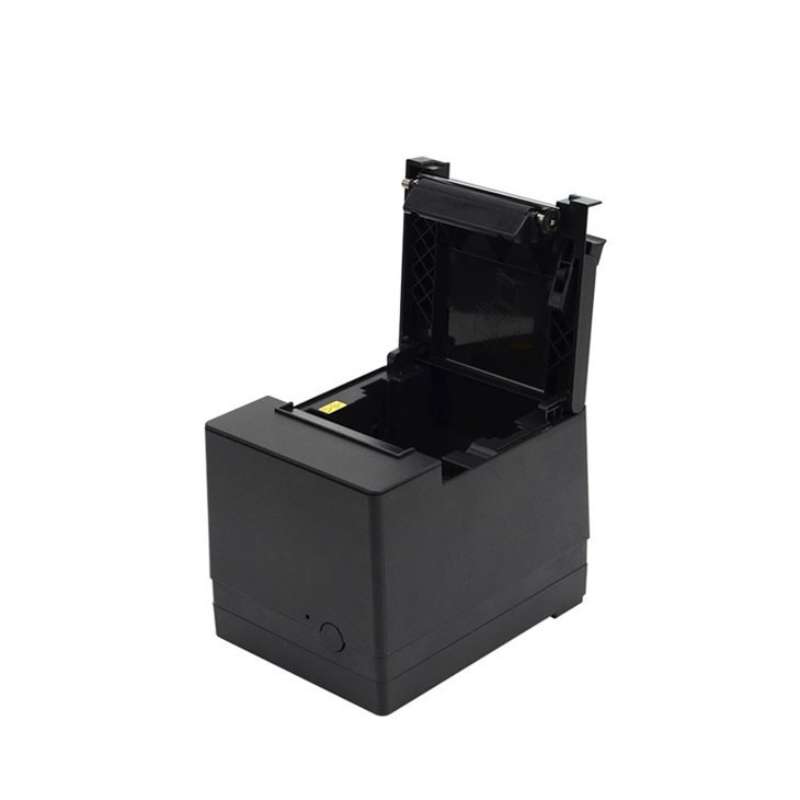

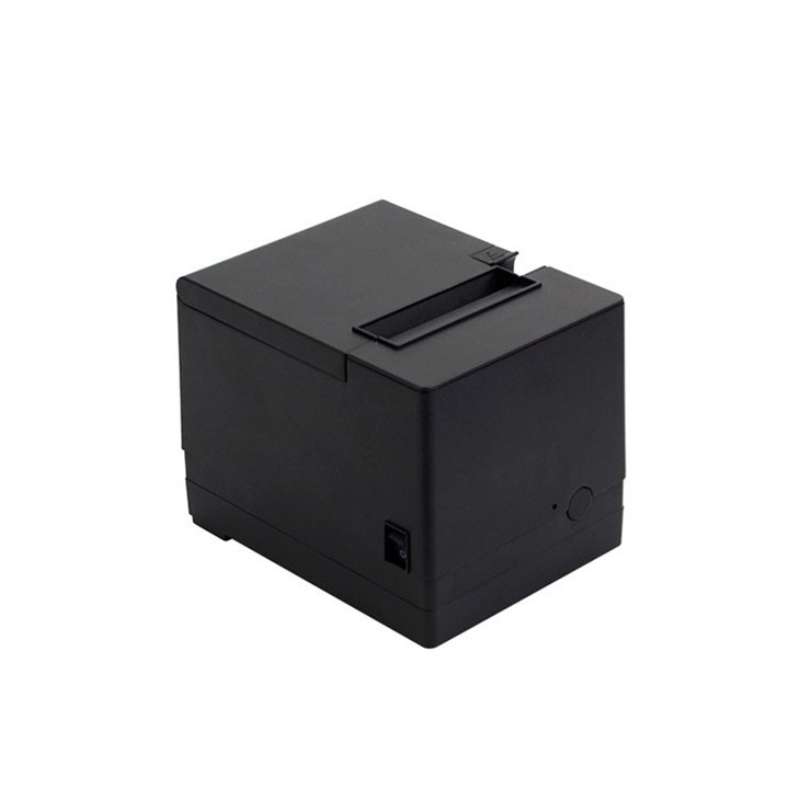

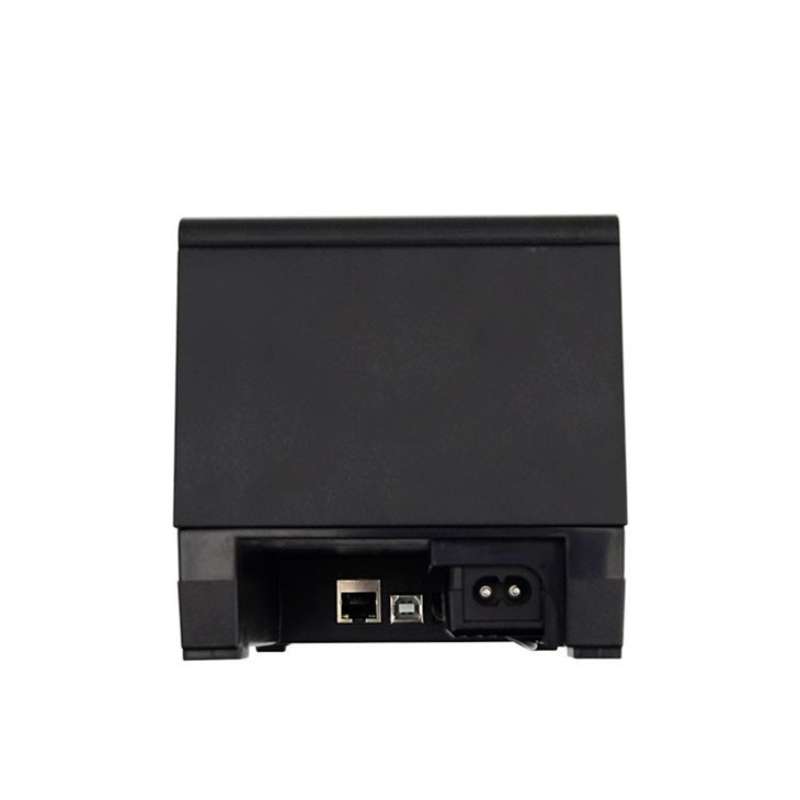

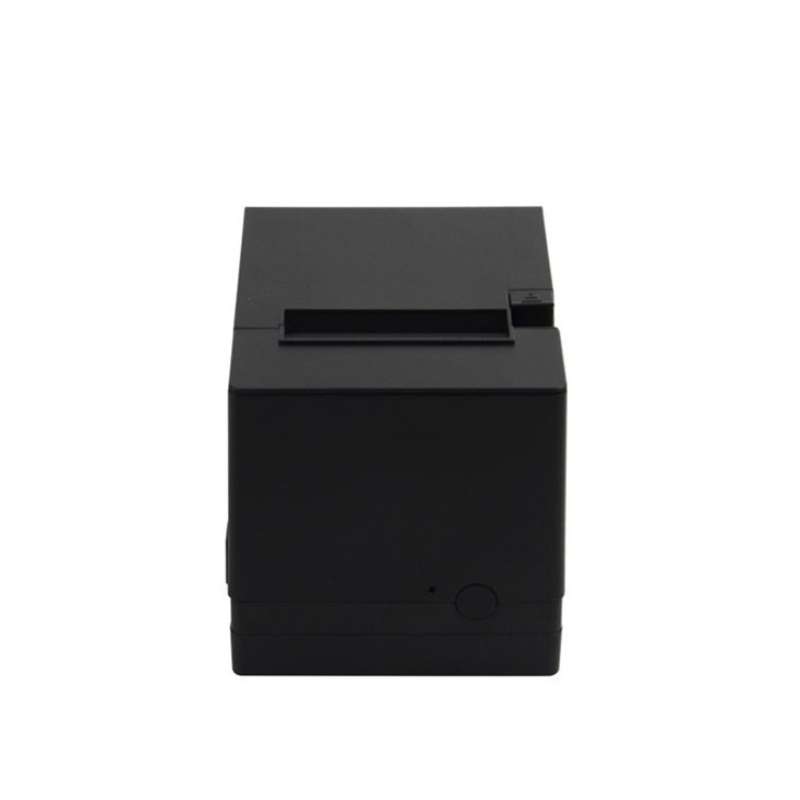

Thermal Receipt Printer
Model: S-80G
Description: pos receipt printer, pos thermal printer, usb receipt printer
Key parameter: 80mm paper width (3inch)
82mm paper diameter
USB+Ethernet, USB+cash drawer port, USB+bluetooth+cash drawer port, USB+WiFi+cash drawer port
200mm/s
Features:
* Thermal receipt printer, Simple design, compact body, suitable for small counter space
* 200mm/sec high print speed
* 82mm large paper bin, to avoid frequent paper changes and improve work efficiency
* Automatic cutter: 1.5 million times
* Can print content up to 720,000mm in length per hour
* IP42 protection level
* Dustproof, waterproof and insect-proof design to increase product reliability
* Built-in power supply saves space
* Order reminder function to avoid missing orders due to lack of paper
* Thermal receipt printer applications: restaurants, hotels, supermarkets, retail chains, medicine, clothing, fresh fruit stalls, libraries, queue management
Specification
|
Printing |
Print method |
Direct thermal line |
|
Commands |
Compatible with ESC/POS |
|
|
Resolution |
203DPI |
|
|
Print speed |
200mm/s |
|
|
Print head temperature detect |
thermal sensitive resistance |
|
|
Print head position detect |
Microswitch |
|
|
Paper sensor |
Reflection sensor |
|
|
Flash |
4MB |
|
|
Interface |
USB+Ethernet (standard) |
|
|
USB+Cash drawer port (Optional) |
||
|
USB+Bluetooth+Cash drawer port (Optional) |
||
|
USB+WiFi+Cash drawer port (Optional) |
||
|
Paper |
Paper Type |
Thermal paper roll |
|
Paper |
Width：79.5±0.5mm, Paper diameter：Φ82mm Max. |
|
|
Paper thickness |
0.06~0.08mm |
|
|
Paper way out |
Top paper out, half-cut |
|
|
Barcode, Fonts, |
Barcode mode |
1D: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), ITF, CODABAR, CODE39, CODE93, CODE128 2D: QRCODE |
|
Fonts |
GB18030 |
|
|
Enlargement & Rotation |
1~8 times enlargement in horizontal and vertical direction. Rotation in 0°, 90°, 180°, 270°. |
|
|
Power |
Cash drawer out |
DC 24V/0.5A |
|
Power Input |
DC 24V/1.25A |
|
|
Physical properties |
Weight |
0.9kg |
|
Dimension |
130x167x132mm |
|
|
Environment |
Work environment |
Temperature: 0~45℃, Humidity:20-90% |
|
Storage environment |
Temperature: -20~55℃ Humidity:20~93% |
|
|
Reliability |
Mechanism |
150km |
|
Auto cutter |
1.5 million cuts |
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Thermal receipt printer |
1.2 |
18 pcs/carton |
23 |
57*33*50 |
