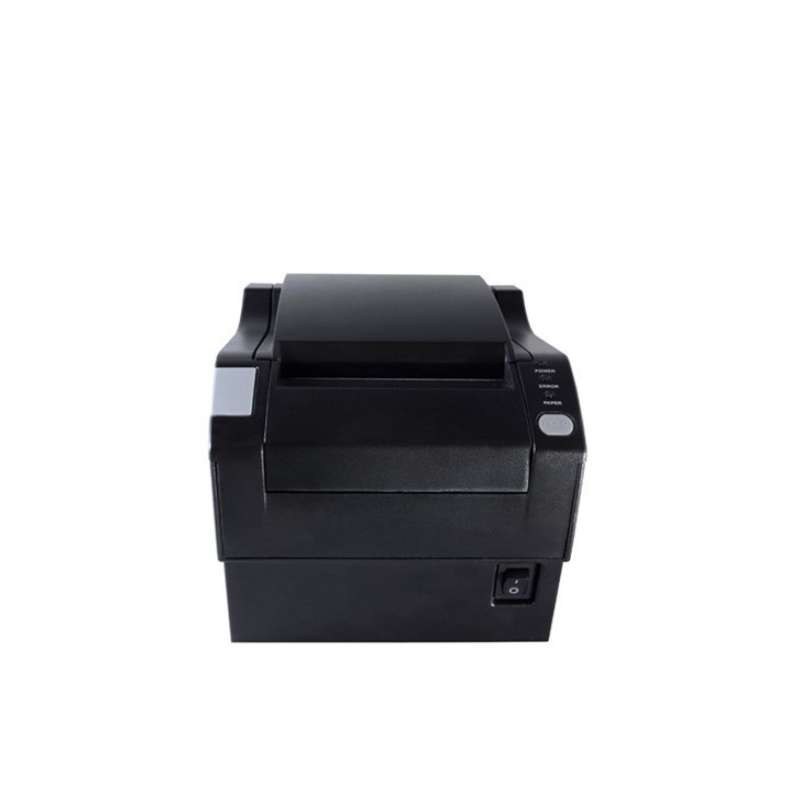

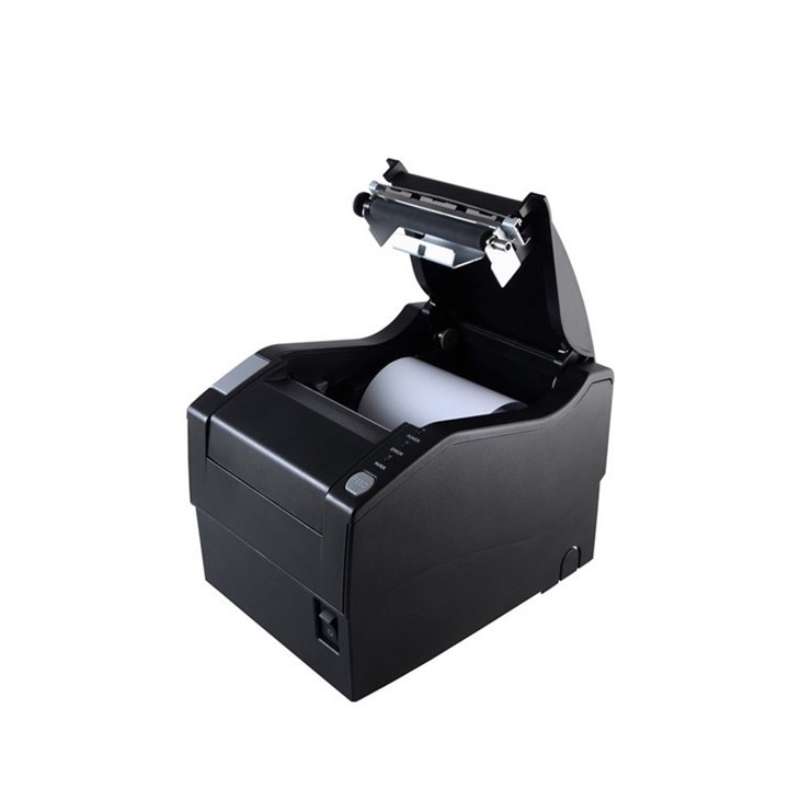

S-U804 Receipt Printer
Model: S-U804
Description: POS printer 80mm, 80 mm printer,
Thermal receipt printer
Key parameter: 80mm paper width (3inch)
83mm paper diameter
USB+Serial+Ethernet
300mm/s
QR code Printing
Features:
●S-U804 Receipt Printer, high speed printing, function stable and reliable
300mm/s high speed printing
Size 180*139*127mm（L*W*H）
Weight 1.23kg
Support character sets GB18030 and various international languages
Built-in data buffer (data receiving available when printing)
Support character enlargement, bold, underline, line spacing and character spacing
Support different density bitmap and download graphics printing
Built-in WEB page to set up printer directly
Support printer identification, software binding and high speed driver mode
S-U804 Receipt Printer supports Ethernet printing status monitor, support more printers working in the same network
Compatible with ESC/POS emulation, characters per line and fonts are optional (adjust by DIP switch)
●Thermal Printer, design for kitchen environment
Low power consumption, low operating cost
3-in-1 interfaces (Serial+USB+100M Ethernet)
USB virtual serial port mode, while supporting OPOS applications
Faster connection by 100M Ethernet port to avoid receipt misprinting
High speed driver printing mode, 66% improvement in print speed via Serial port
S-U804 Receipt Printer supports 2D barcode printing function (optional)
Auto-recovery printing after internet disconnection
Specification
|
Printing
|
Print method |
Direct thermal line |
|
Print width |
64 / 72mm |
|
|
Dot Density |
512 / 576dot/line |
|
|
Print speed |
300mm/s |
|
|
Interface |
USB+Serial+LAN |
|
|
Paper |
Width：79.5±0.5mm, Paper diameter：Φ83mm |
|
|
Line space |
3.75mm (can be adjustive) |
|
|
Commands |
Compatible with ESC/POS, STAR |
|
|
Columns |
Font A-42/48columns;Font B-56/64columns;Simplified /Traditional 21/24columns |
|
|
Character Size |
ANK character, Font A：1.5×3.0mm(12×24dot) |
|
|
Font B：1.1×2.1mm（9×17dot） |
||
|
Simplified/Traditional Chinese：3.0×3.0mm (24×24dot) |
||
|
Barcode
|
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai) |
|
Barcode mode |
UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / |
|
|
Fonts |
GB18030 |
|
|
Buffer
|
Data |
128K bytes |
|
NV Flash |
256K bytes |
|
|
Power |
Cash drawer out |
DC 24V/1A |
|
Power adaptor |
Input：AC 110V/220V, 50~60Hz Output：DC 24V/2A |
|
|
Power supply |
DC 24V/2A |
|
|
Physical properties
|
Weight |
1.23kg |
|
Dimension |
180×139×127mm (L×W×H) |
|
|
Environment
|
Work environment |
Temperature: 0~45℃, Humidity:10-80% |
|
Storage environment |
Temperature: -10~60℃ Humidity:10~90% |
|
|
Reliability |
Mechanism |
150km |
|
Auto cutter |
1.5 million cuts |
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| S-U804 Receipt Printer |
2.2 |
6 pcs/carton |
14.5 |
68*29*50 |
