Embedded Thermal Printer
Thermal embedded printer
embedded-thermal-printer02564961934

Embedded Thermal Printer

Model: 80MI
Description: Thermal Printer embedded, thermal embedded printer, kiosk printer, kiosk thermal receipt printer embedded
Key parameter: 80mm paper width (3inch)
USB+Serial
160mm/s

Send Inquiry

Features:

Kiosk thermal printer, 80mm thermal paper roll
Kiosk receipt printer, 160mm/s high speed printing
Compatible with ESC/POS commands.
150km mechanism lifespan
Embedded Thermal Printer with auto cutter, 1.0 million times Cutter lifespan

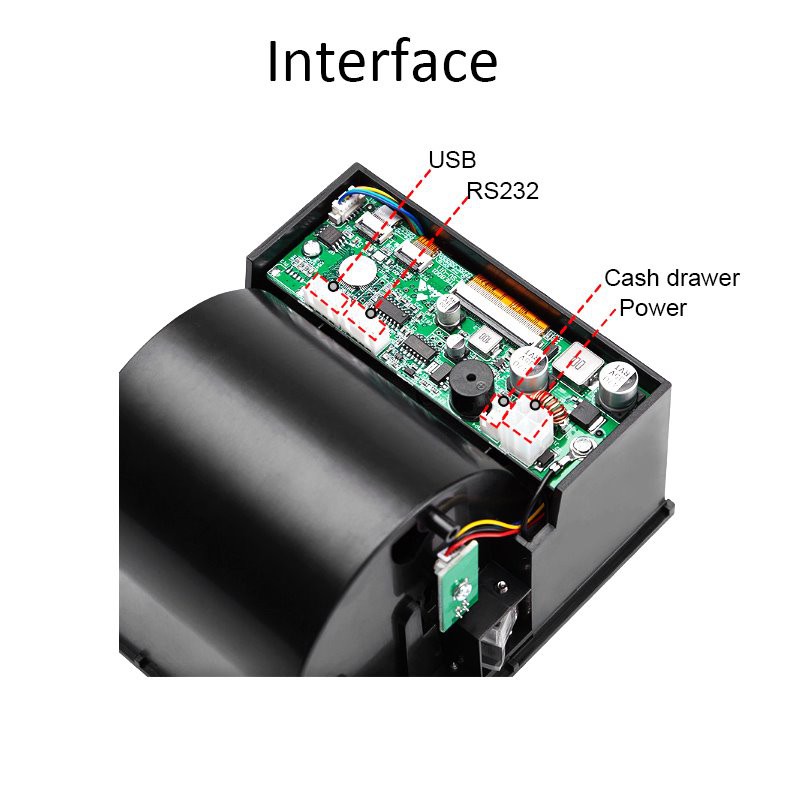

Embedded Thermal Printer Interface: USB+Serial+ Cash drawer
Built-in data buffer, support to receive data during printing
Embedded Thermal Printer supports to print different density bitmap and download graphics

Specification

Printing	Print method	Direct thermal line
	Print width	72mm
	Dot Density	576 dot/line (203DPI)
	Print speed	160mm/s
	Interface	Printer: RS232/TTL (COM), USB2.0
	Interface	Cash drawer: RJ-11, 24/1A
	Paper	Width:79.5±0.5mm, Paper diameter:Φ80mm
	Line space	3.75mm=30/203inch (can be adjustive)
	Commands	Compatible with ESC/POS
	Detection	Paper sensor: Photo electricity
		Print head temperature detection: thermal sensitive resistance
		Print head position detection: Micro switch

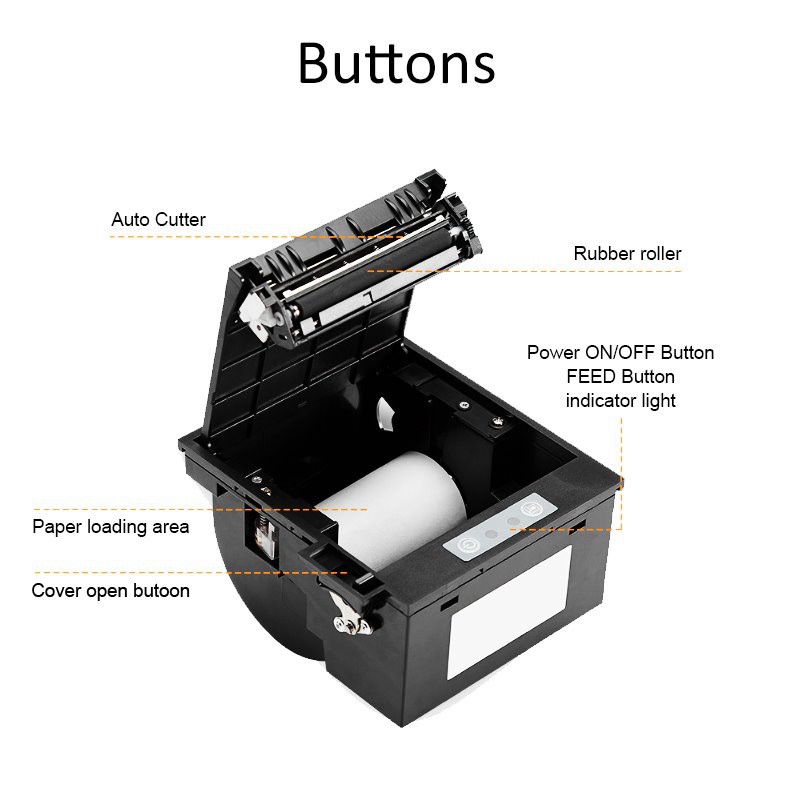

	Buttons	FEED button, Power indicator, Status indicator, Buzzer
Barcode	Code page	PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai), etc
	Barcode mode	1D code: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
	Barcode mode	2D code: QRCODE (option)
	Fonts	GB18030
Buffer	Data	4K bytes
Buffer	NV Flash	60K bytes
Power	Cash drawer out	DC 24V/1A
Power	Power supply	DC 12V/4A
Physical	Weight	0.35 kg

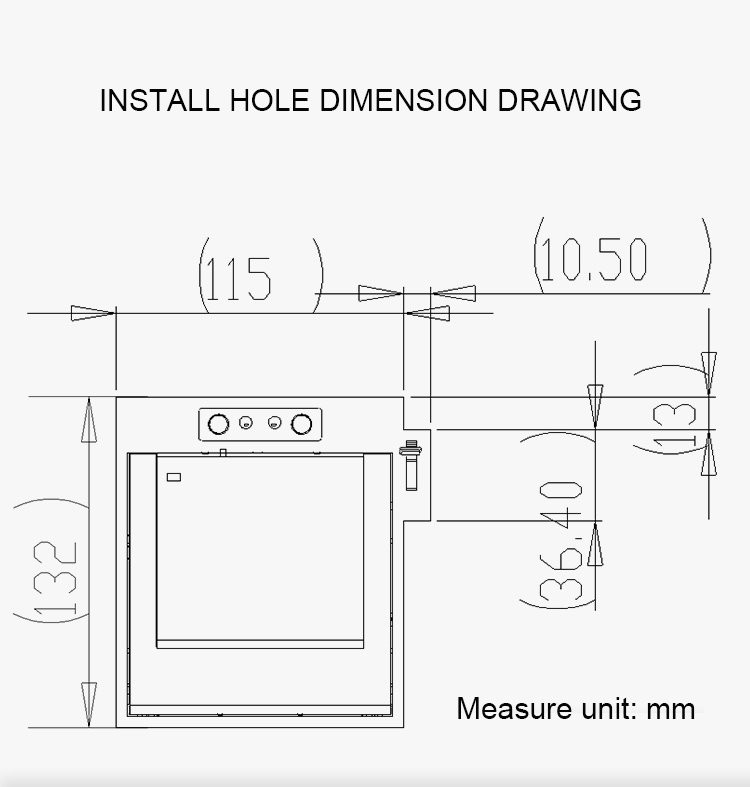

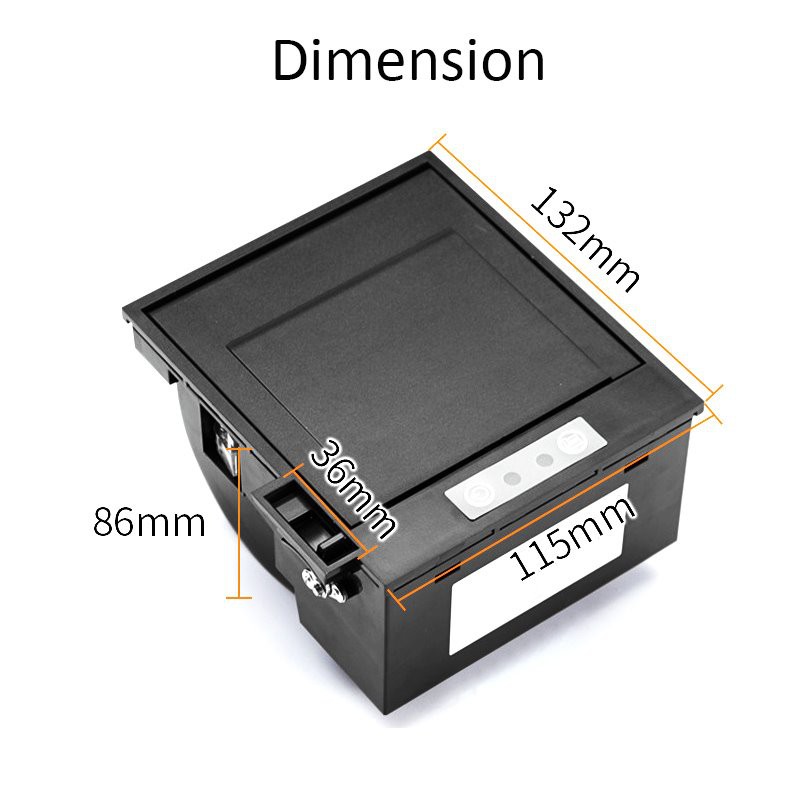

Physical	Dimension	115×132×86mm (L×W×H)
Environment	Work	Temperature: 0~50℃, Humidity:20-85%
Environment	Storage	Temperature: -20~60℃ Humidity:5~95%
Reliability	Mechanism	150km
Reliability	Auto cutter	1.0 million cuts

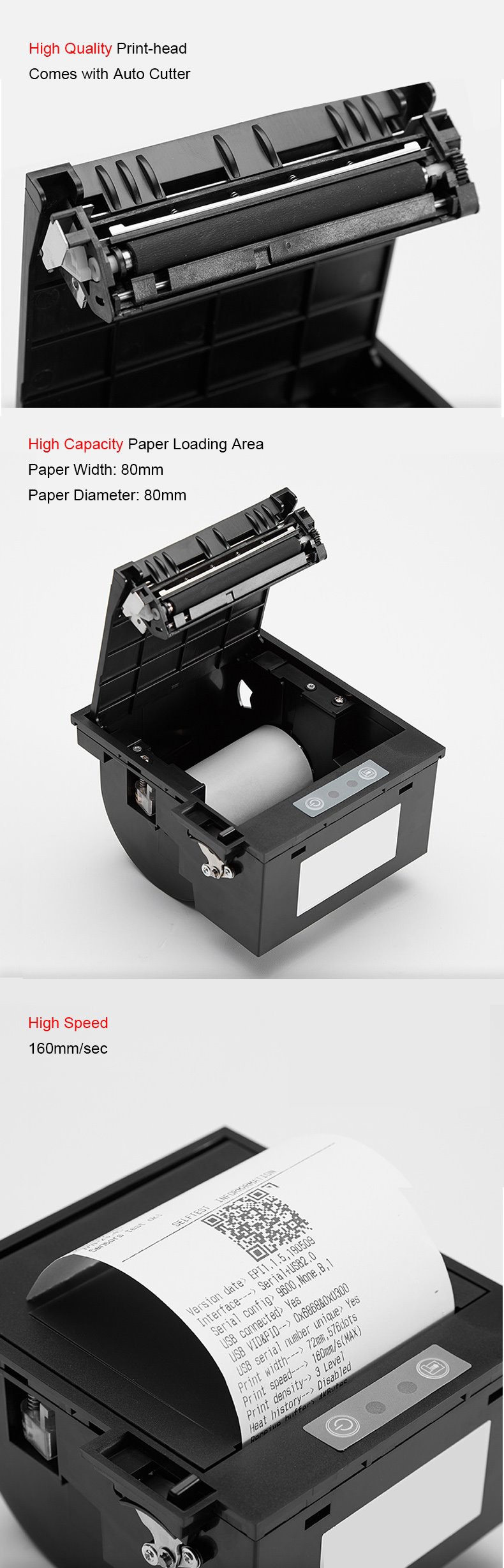

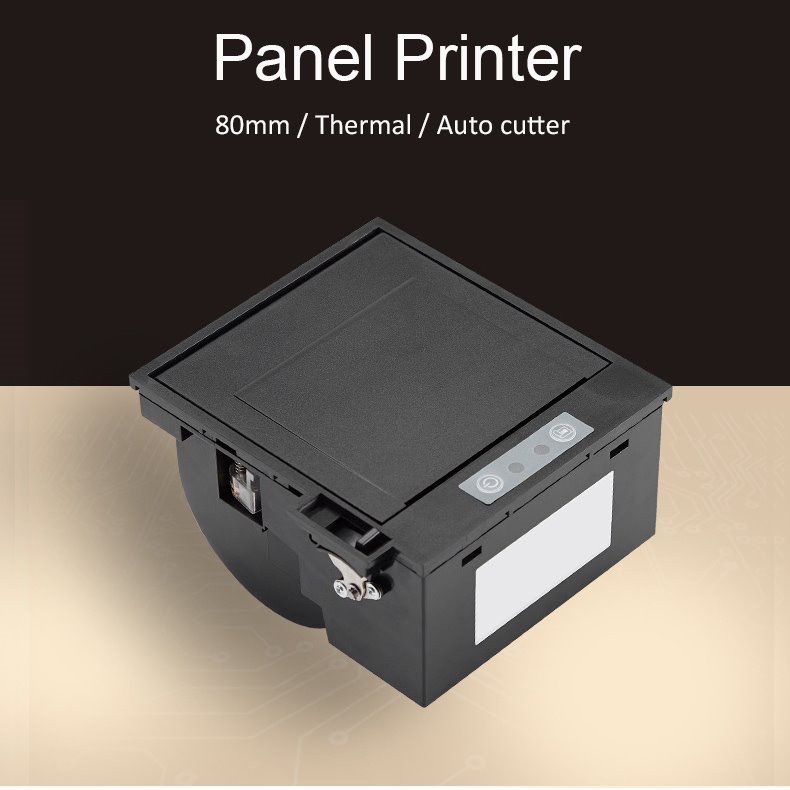

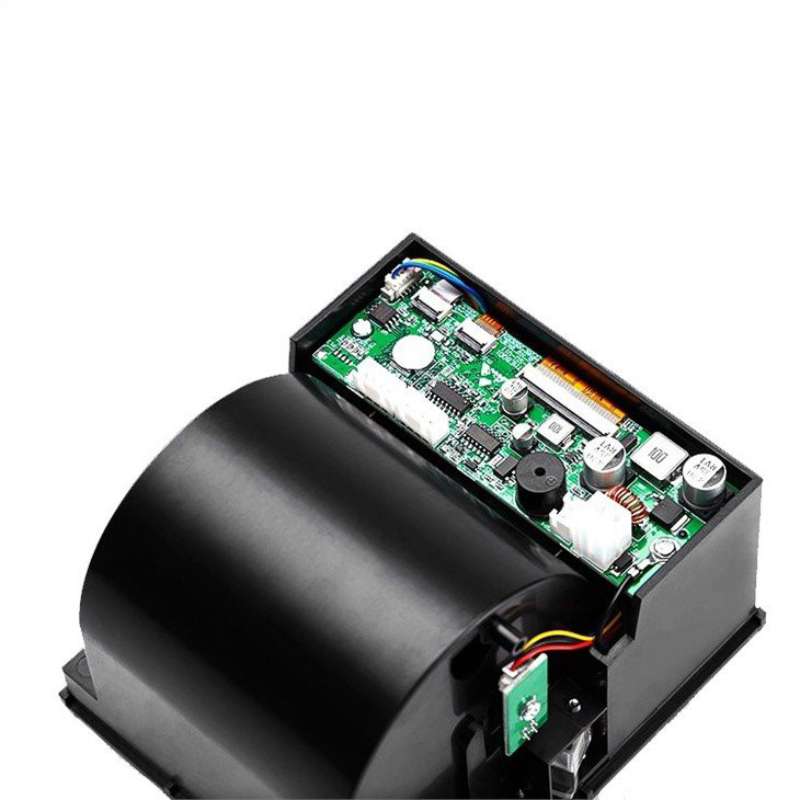

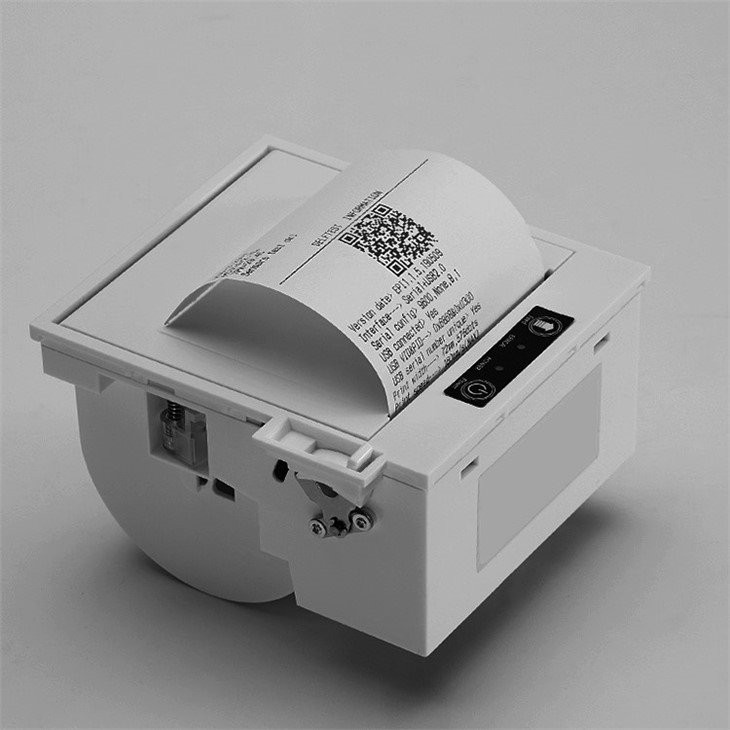

Product Show:

$F:\\57\57\\panel thermal printer$

$F:\\57\57\\thermal panel printer$

$F:\\57\57\\embeded thermal printer$

$F:\\57\57\\android embedded$

$F:\\57\57\\receipt printer kiosk$

$F:\\57\57\\embeded 80mm thermal printer$

$F:\\57\57\\embeded printer 80mm$

Application:

Embedded printer is widely used in all kinds of retail POS systems (Android or Windows), catering, Self-service Terminal, medical Industry, Station, Parking, queuing and calling system, Bank, insurance industry, industrial control systems ect.

$F:\\57\57\\embeded 80mm printer$
