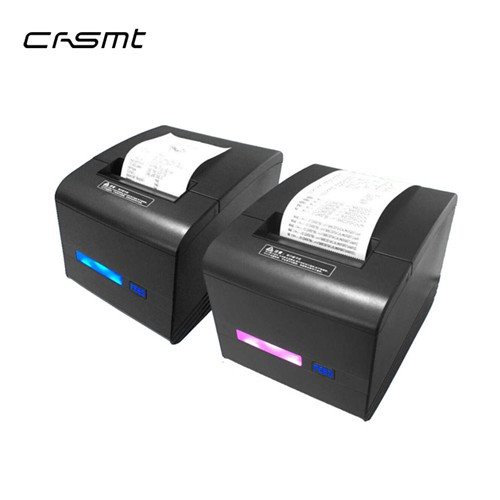

3 Inch Thermal Printer
Model: S-L253
Description: POS printer, direct thermal printer
Key parameter: 80mm paper width (3inch)
83mm paper diameter
USB+Serial+LAN
250mm/s
Features:
1. POS printer 80mm width, high speed printing
High-speed processor for fast speeds of up to 250mm/s, clear and stable printing.
2. Kitchen Printer, design for noise catering environment
Built-in loudspeaker, big alarm for receipt notification and error indication.
Longer front light tube for obvious receipt printing and error indication.
3 Inch Thermal Printer supports detection and reminding function when receipt is not taken away.
3. Thermal receipt printer, various Interfaces for more connection options
3-in-1 interfaces (Serial+USB+100M Ethernet) and inverted design of motherboard.
Faster connection by 100M Ethernet port to avoid receipt misprinting.
Auto-recovery printing after internet disconnection.
3 Inch Thermal Printer supports Ethernet printing status monitor.
Specification
|
Printing |
Print method |
Direct thermal line |
|
Paper width |
80mm |
|
|
Paper diameter |
Φ83mm (Max.) |
|
|
Paper thickness |
0.06~0.08mm |
|
|
Dot Density |
512 / 576dot/line |
|
|
Print speed |
250mm/s |
|
|
Interface |
USB+Serial+LAN |
|
|
Line space |
3.75mm (can be adjustive) |
|
|
Commands |
Compatible with ESC/POS |
|
|
Character Size |
ANK character, Font A：12x24dot |
|
|
Font B：9x17dot |
||
|
Simplified/Traditional Chinese：24x24dot |
||
|
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai) |
|
|
Barcode mode |
UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8)CODE39, ITF, CODABAR, CODE93, CODE128, QR code |
|
|
Fonts |
GB18030 |
|
|
Buffer |
Data |
32K bytes |
|
NV Flash |
60K bytes |
|
|
Power |
Cash drawer out |
DC 24V/1A |
|
Power adaptor |
Input：AC 110V/220V, 50~60Hz Output：DC 24V/2A |
|
|
Power supply |
DC 24V/2A |
|
|
Physical |
Weight |
1.40kg |
|
Dimension |
200x146x138mm |
|
|
Environment |
Work environment |
Temperature: 5~45℃, Humidity: 10-80% |
|
Storage environment |
Temperature: -10~60℃ Humidity: 10~90% |
|
|
Reliability |
Mechanism |
150km |
|
Auto cutter |
1.5 million cuts |
Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
3 Inch Thermal Printer S-L253 |
2.1 |
6 pcs/carton |
13.5 |
68*50*29 |
