80mm Printer
Model: 80300II
Description: Restaurant printer, POS 80 thermal Printer
Key parameter: 80mm paper width (3inch)
83mm paper diameter
USB+Serial+LAN
300mm/s
Features:
1. Receipt paper roll: 80mm width.
2. POS receipt printer with 300mm/s high speed printing.
3. 80mm Printer is compatible with ESC/POS commands.
4. 80mm Printer supports QR code barcode printing.
5. 150km mechanism lifespan; 1.5 million times Cutter lifespan.
6. Interface for option: USB+Serial+LAN, USB+Serial+LAN+Bluetooth (Optional), USB+Serial+LAN+WiFi (Optional).
7. Built-in data buffer, support to receive data during printing.
8. Support for printing different density bitmap and download graphics.
9. Faster connection by 100M Ethernet port to avoid receipt misprinting.
10. 80mm Printer supports character enlargement, bold, underline, line spacing and character spacing.
Specification
|
Printing |
Print method |
Direct thermal |
|
Receipt Paper roll |
Width：79.5±0.5mm, diameter：Φ83mm |
|
|
Dot Density |
576 dots/line (203DPI) |
|
|
Print speed |
300mm/s |
|
|
Interface |
USB+Serial+LAN (Standard) |
|
|
USB+Serial+LAN+Bluetooth (Optional) |
||
|
USB+Serial+LAN+WiFi (Optional) |
||
|
Line space |
3.75mm (can be adjustive) |
|
|
Commands |
Compatible with ESC/POS |
|
|
Character Size |
ANK character, Font A：12x24dot |
|
|
Font B：9x17dot |
||
|
GB18030/BIG5：24x24dot |
||
|
Barcode |
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151, 1251, PC747, WPC1257, Vietnam, PC864, PC1001, Uygur, Thai and more |
|
Barcode mode |
UPC-A , UPC-E , JAN13 (EAN13) , JAN8 (EAN8) , CODE39 , ITF, CODABAR, CODE93, CODE128 , QR CODE |
|
|
Fonts |
GB18030 |
|
|
Buffer |
Data Buffer |
100K bytes |
|
NV Flash |
128K bytes |
|
|
Power |
Cash drawer out |
DC 24V/1A |
|
Power adaptor |
Input：AC 100~240V, 50~60Hz Output：DC 24V/1.5A |
|
|
Power supply |
DC 24V/1.5A |
|
|
Physical |
Weight |
1.1kg |
|
Dimension |
191x145x145mm (LxWxH) |
|
|
Environment |
Work |
Temperature: 5~45℃, Humidity:10-80% |
|
Storage |
Temperature: 5~50℃ Humidity:10~90% |
|
|
Reliability |
Mechanism |
150km |
|
Auto cutter |
1.5 million cuts |

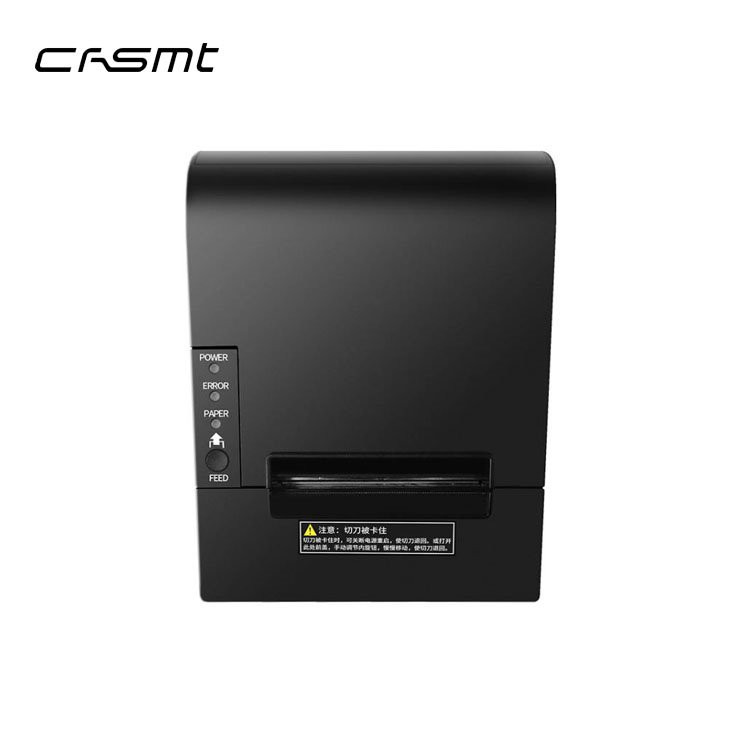

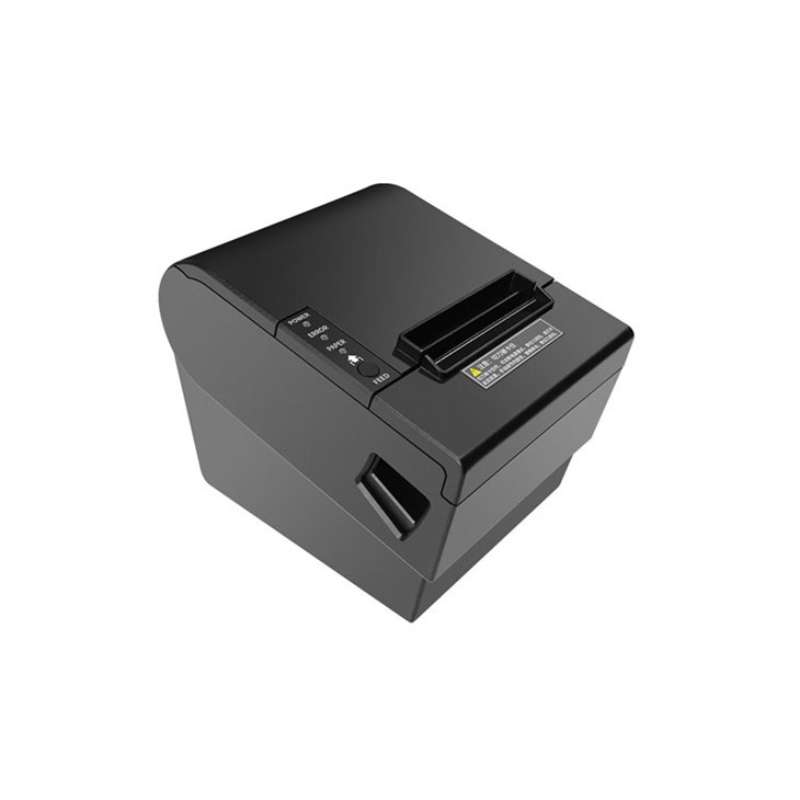

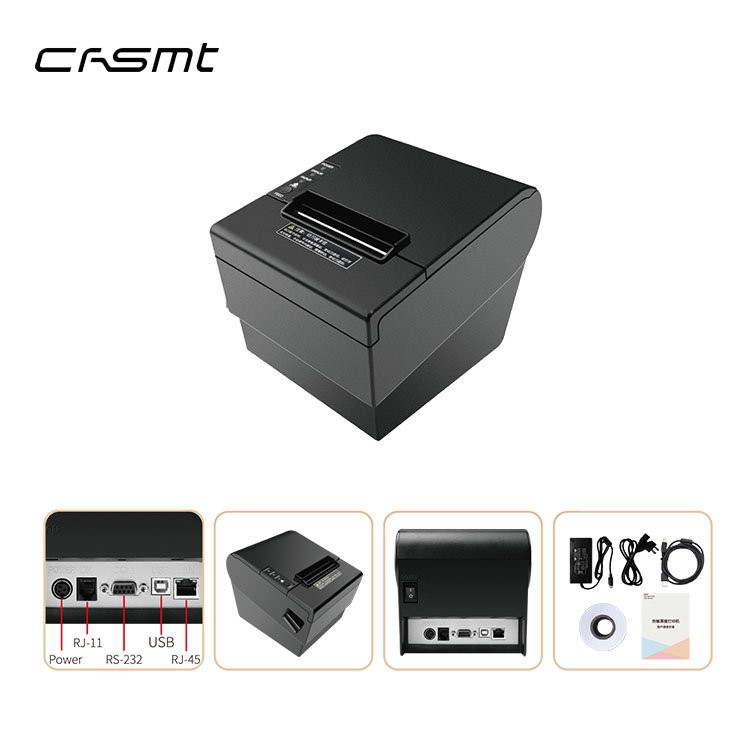

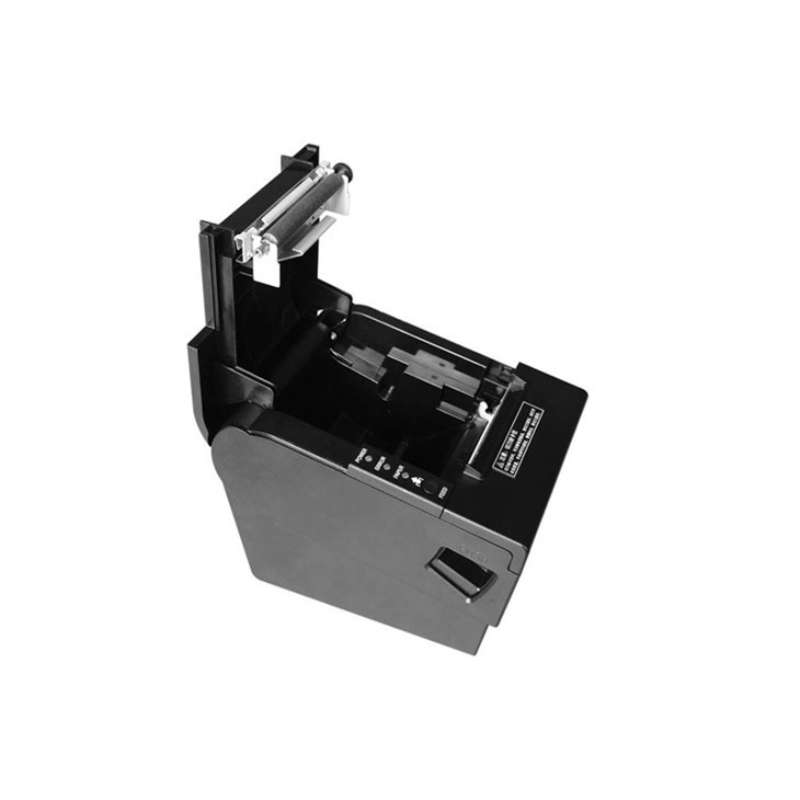

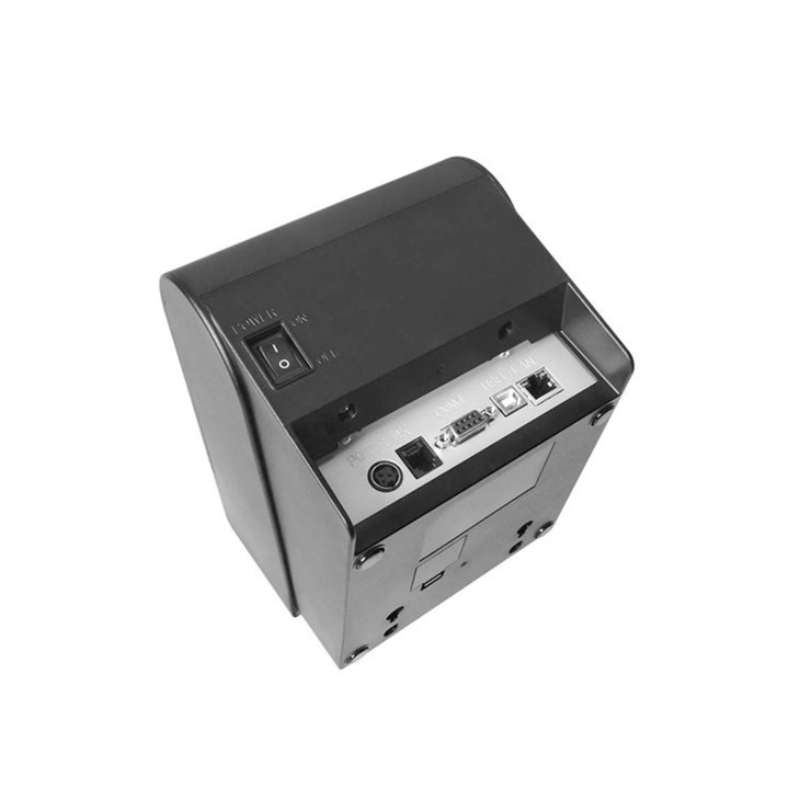

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Kitchen Printer 80300II |
2.0 |
12 pcs/carton |
25 |
60*55*41 |
