80mm Thermal Printer
Model: D802
Description: wireless thermal printer, wireless receipt printer
Key parameter: 80mm paper width (3inch)
83mm paper diameter
USB+Ethernet, USB+Ethernet+Bluetooth, USB+Ethernet+WiFi
250mm/s
Features:
1. 80mm Thermal Printer, fast printing
Low power consumption, low operating cost, 250mm/sec high print speed, wall hanging supported.
2. Thermal receipt printer with multiple interfaces, easy to control
2-in-1 interfaces (USB+100M Ethernet) and inverted design of motherboard, ideal for kitchen.
Faster connection by 100M Ethernet port to avoid receipt misprinting.
Built-in WEB page to set up printer directly and easily.
80mm Thermal Printer supports Ethernet printing status monitor, support more printers working in the same network.
Auto-recovery printing after internet disconnection.
3. POS receipt printer, powerful functions
Compatible with ESC/POS command set.
Support 2D barcode printing function.
Support character sets GB18030 and various international languages.
Support character enlargement, bold, underline, line spacing and character spacing.
Support different density bitmap and download graphics printing.
80mm Thermal Printer supports printer identification, software binding and high speed driver mode.
Built-in data buffer (data receiving available when printing).
Specification
|
Printing |
Print method |
Direct thermal |
|
Receipt Printer Paper |
Width: 79.5±0.5mm, diameter: Φ80mm, thickness: 0.06~0.08mm |
|
|
Dot Density |
512 / 576dot/line |
|
|
Print speed |
250mm/s |
|
|
Interface |
USB+Ethernet, (standard) USB+Ethernet+Bluetooth (Optional) USB+Ethernet+WiFi (Optional) |
|
|
Line space |
3.75mm (can be adjustive) |
|
|
Commands |
Compatible with ESC/POS |
|
|
Print head temperature detect |
Thermal sensitive resistance |
|
|
Print head position detect |
Mircoswitch |
|
|
Paper sensor |
Photoelectricity |
|
|
Character Size |
ANK character, Font A：12x24dot |
|
|
Font B：9x17dot |
||
|
Simplified/Traditional Chinese：24x24dot |
||
|
Barcode |
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai) |
|
Barcode mode |
UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8)CODE39, ITF, CODABAR, CODE93, CODE128, QR CODE |
|
|
Fonts |
GB18030 |
|
|
Buffer |
Input Buffer |
800KB~1MB |
|
NV Flash |
256K bytes |
|
|
Power |
Cashdrawer out |
DC 24V/1A |
|
Power adaptor |
Input：AC 110V/220V, 50~60Hz Output：DC 24V/2.5A |
|
|
Power supply |
DC 24V/2.5A |
|
|
Physical |
Weight |
1.50kg |
|
Dimension |
204x147x138mm |
|
|
Environment |
Work environment |
Temperature: 5~45℃, Humidity:10-80% |
|
Storage environment |
Temperature: -10~50℃ Humidity:10~90% |
|
|
Reliability |
Mechanism |
150km |
|
Auto cutter |
1.5 million cuts |

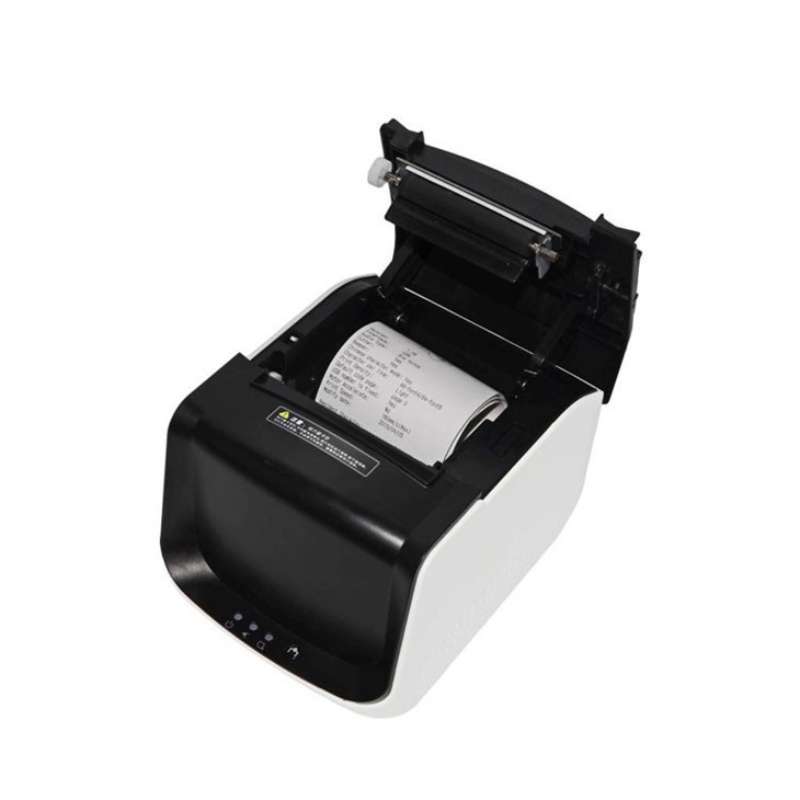

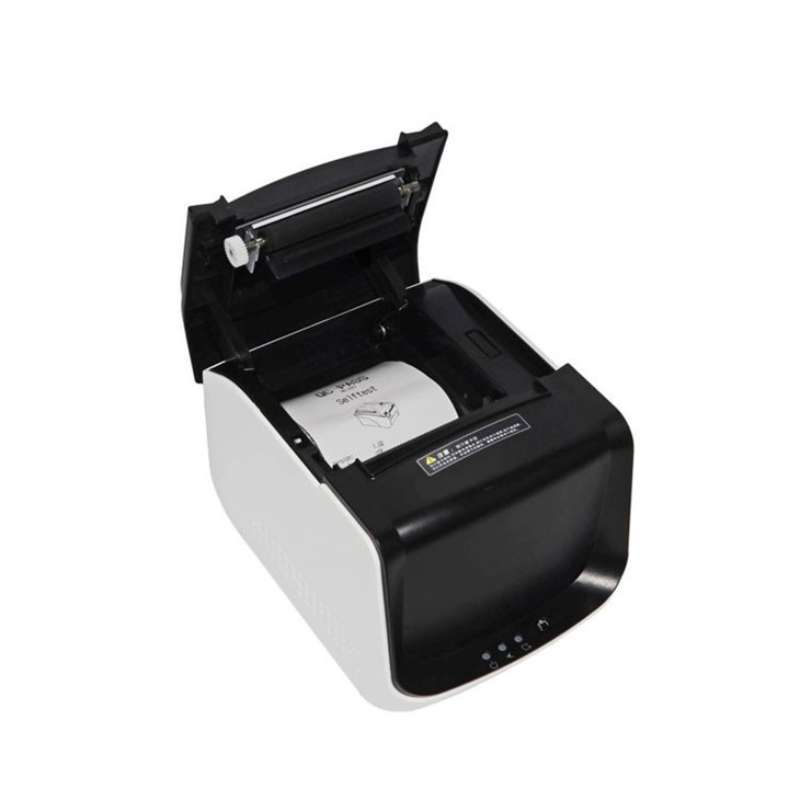

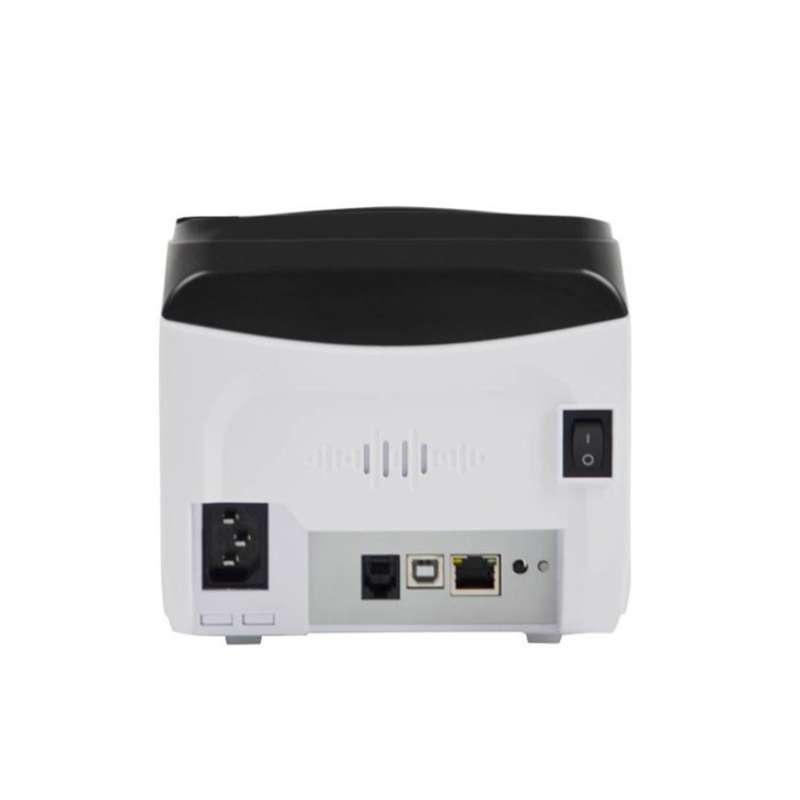

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Thermal Printer D802 |
2.0 |
6 pcs/carton |
13.5 |
68*50*29 |
Application:
The Thermal Printer D802 is a highly versatile and widely utilized device that has found its application in a diverse range of industries such as catering, squares, supermarkets, warehouses, shopping malls, retail stores, medical facilities, and many more.
It is a smart and efficient printer that employs advanced technology to deliver high-quality, clear, and easy-to-read printed material. Its compact design and user-friendly interface make it an ideal choice for businesses that rely on accurate and fast printing capabilities for their day-to-day operations. Whether it's printing receipts, invoices, or tickets, the Thermal Receipt Printer D802 has become a staple device in many industries due to its reliability and durability. Its features include a speedy printing process, automatic paper cutting, and high durability on long-term use.
The 80mm Thermal Printer D802 is a must-have device for businesses that seek reliable and efficient printing solutions.
