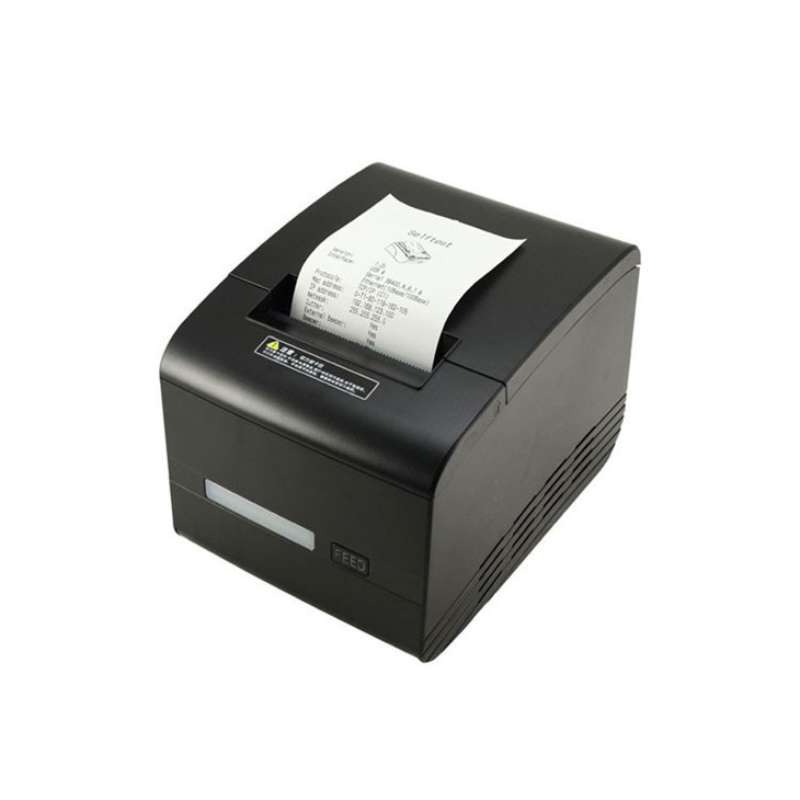

Bluetooth Thermal Receipt Printer
Model: 8160C
Description: WiFi receipt printer, Bluetooth thermal printer
Key parameter: 80mm paper width (3inch)
80mm paper diameter
USB+Serial, USB+Bluetooth, USB+WiFi
160mm/s
Features:
1. Wireless receipt printer, wireless connection, great compatibility

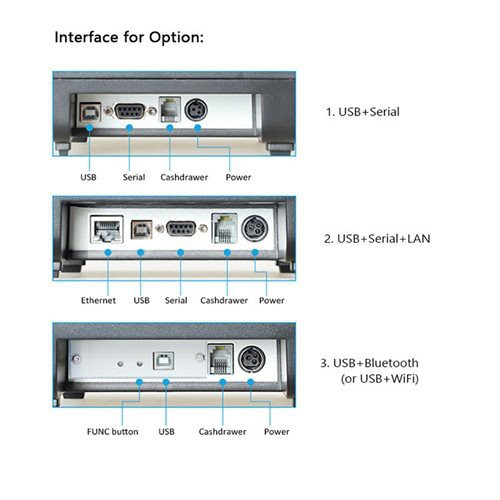

Bluetooth Thermal Receipt Printer Interface for option: USB+Serial, USB+Bluetooth, USB+WiFi.
Thermal printer Wi-Fi mode: AP, STA, AP+STA.

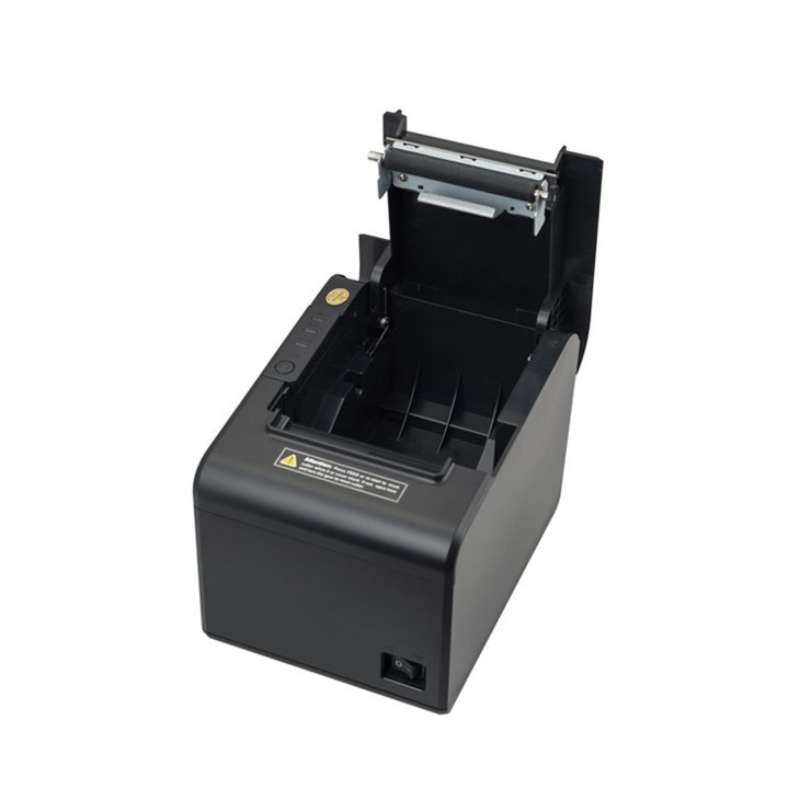

2. POS thermal printer with large capacity paper storage, easier to reload paper
Thermal paper roll: 80mm width, 80mm diameter, easier to reload paper.
Specification
|
Printing |
Print method |
Direct thermal |
|
Receipt Printer Paper |
Width: 79.5±0.5mm, diameter: Φ80mm, thickness: 0.06~0.08mm |
|
|
Dot Density |
512 / 576dot/line |
|
|
Print speed |
160mm/s |
|
|
Interface |
USB+Serial, (standard) USB+Bluetooth (Optional) USB+WiFi (Optional) |
|
|
Line space |
3.75mm (can be adjustive) |
|
|
Commands |
Compatible with ESC/POS |
|
|
Character Size |
ANK character, Font A：12x24dot |
|
|
Font B：9x17dot |
||
|
Simplified/Traditional Chinese：24x24dot |
||
|
Barcode |
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai) |
|
Barcode mode |
UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8)CODE39, ITF, CODABAR, CODE93, CODE128, QR CODE |
|
|
Fonts |
GB18030, Korean, Simplified/Traditional Chinese |
|
|
Buffer |
Input Buffer |
4K bytes |
|
NV Flash |
60K bytes |
|
|
Power |
Cashdrawer out |
DC 24V/1A |
|
Power adaptor |
Input：AC 110V/220V, 50~60Hz Output：DC 24V/2A |
|
|
Power supply |
DC 24V/2A |
|
|
Physical |
Weight |
1.60kg |
|
Dimension |
190.5x146.7x140.5mm (LxWxH) |
|
|
Environment |
Work |
Temperature: 0~45℃, Humidity:10-90% |
|
Storage |
Temperature: -10~50℃ Humidity:10~90% |
|
|
Reliability |
Mechanism |
150km |
|
Auto cutter |
1.5 million cuts |
Product Show:
Application field:
1. Catering:
Food take-away O2O, delivery O2O, Online service O2O.
Mall, super market, kitchen.
2. Retail:
POS system.
EFT POS system.
3. Public services:
Gym, Post, hospital, civil aviation system.
Inquiry, queuing, service system.
Instrument test.
Tax collection.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
RS232 thermal printer 8160C |
2.3 |
6 pcs/carton |
15 |
69*34*41 |
Q and A:
About POS printer to print self-test page:
1. Bluetooth Thermal Receipt Printer usefulness: showing the printer itself information, including version and the current configuration; and inspecting the printer if work or not.
2. Bluetooth Thermal Receipt Printer Operation: Turn off the printer power. Press the FEED button and turning on the printer power simultaneously, wait for red indicator dims, release the FEED button, the self-test page prints out.

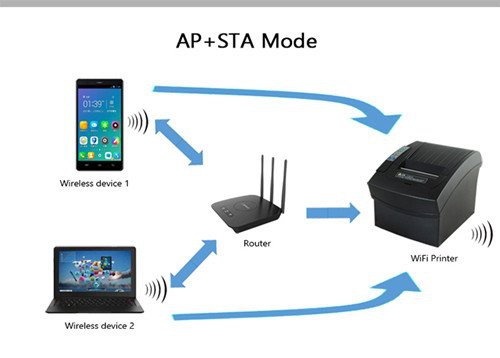

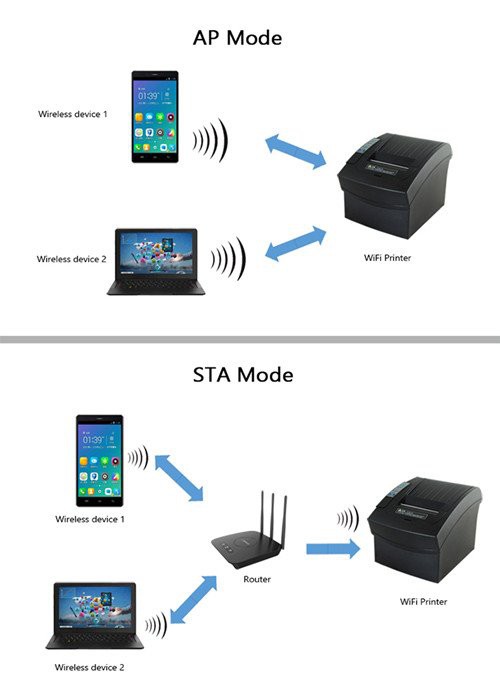

About WiFi mode:
Three modes: AP mode, STA mode, AP+STA mode.
