80mm Thermal Receipt Printer
Model: 8330
Description: WiFi receipt printer, Bluetooth thermal printer
Key parameter: 80mm paper width (3inch)
80mm paper diameter
USB+Serial, USB+Bluetooth, USB+WiFi
160mm/s
Features:
1. Thermal receipt printer, User-friendly Design
Compact and lightweight, beautiful appearance.
80mm Thermal Receipt Printer, easy paper structure, reasonable structure, convenient operation and maintenance.
Anti-jam guide.
Stand-alone or space-saving wall-mount use.
Small power consumption, low operating cost (no ribbon, no ink).
2. POS thermal Printer, multiple interface choice
Interface of high integration, USB, serial port, network port three kinds of interface integrated on the same board (single interface for optional).
3. POS receipt printer, powerful Printing Performance
Built in data buffer (to receive print data during printing).
The character can be enlarged and printed, and can adjust the distance between the lines.
80mm Thermal Receipt Printer supports for different density map and download graphics printing.
80mm Thermal Receipt Printer supports raster bitmap printing.
In the print driver (way) to achieve a high speed and hard call font print.
Compatible with ESC/POS print instruction set, a variety of modes can be adjusted (adjusted DIP switch).
More real for the kitchen menu printing, support one-dimensional code, two-dimensional code printing.
Specification
|
Printing |
|
|
Interfaces |
USB, USB+LAN, USB+LAN+RS232,USB+BT, USB+WiFi |
|
Print Command |
ESC/POS |
|
Print Method |
Thermal Line Printing |
|
Print Speed |
220mm/sec |
|
No. of Total Dots |
512 dots/Line |
|
Max Resolution |
203DPI |
|
Auto Paper Cutter |
Full or Partial cut |
|
Auto-cutter (LIFE) |
1 million cuts |
|
Thermal head (LIFE) |
100KM |
|
Print Font |
12 x 24; 24x 24 |
|
Safety standards |
EMC, LVD, ROSH CCC |
|
Character Set |
Alphanumeric /Chinese Kanji |
|
Data Buffer |
UP to 5K bytes |
|
Compatible OS |
Win9X/Win2000//Win2003/Win Vista/ Win 7/Window XP /win 8/win8.1/linux |
|
Thermal paper rolls |
|
|
Type |
Roll Paper |
|
Width |
79.5±0.5mm |
|
Roll Diameter |
83mm |
|
Paper Thickness |
0.06-0.08mm |
|
Physical |
|
|
Dimension |
18.6*14.5*13.6cm |
|
Unit Weight |
1.35kgs |
|
Pieces Per CTN |
8 Pieces |
|
Color |
Black |
|
CTN Dimension |
52 x 49 x 38cm |
|
Carton Weight |
20kgs |
|
Environmental |
|
|
Temperature |
Working: 0 to 45 Degrees |
|
Humidity |
Working: 10%-80% |
|
Warranty |
12 months at least |
|
Other Features |
Bold printing / character adjusting / line spacing setting supported/1D & QR Barcode Print |
|

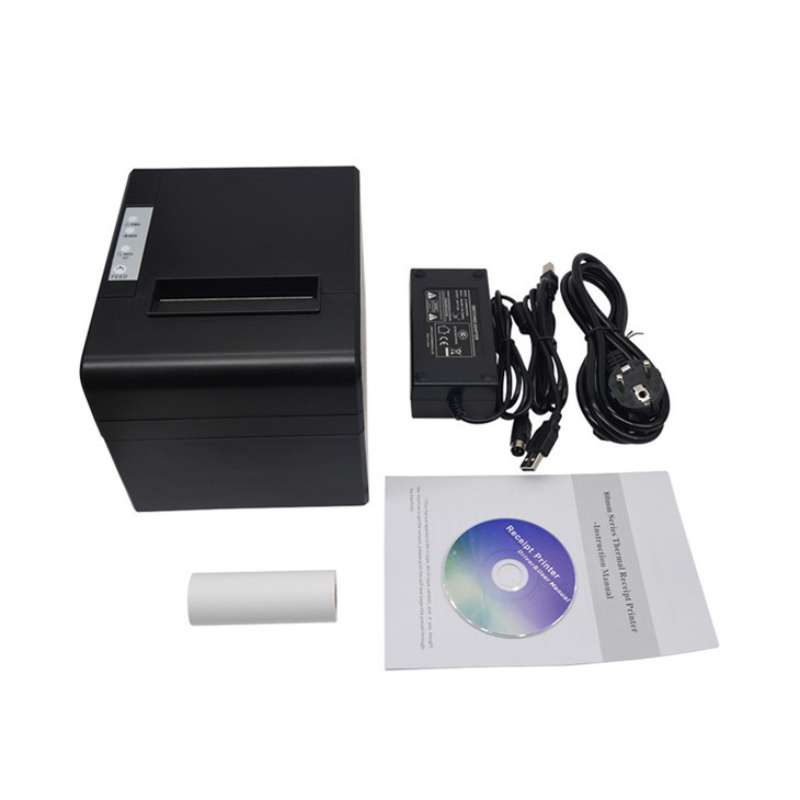

Accessories |
|
|
USB Cable |
1 x 1M Cable |
|
CD Driver |
1 Piece |
|
Adapter |
24V /2.5A |
|
Thermal Roll |
1 Piece |
|
Manual |
1 Piece |
|
Power Cable |
1 Piece |

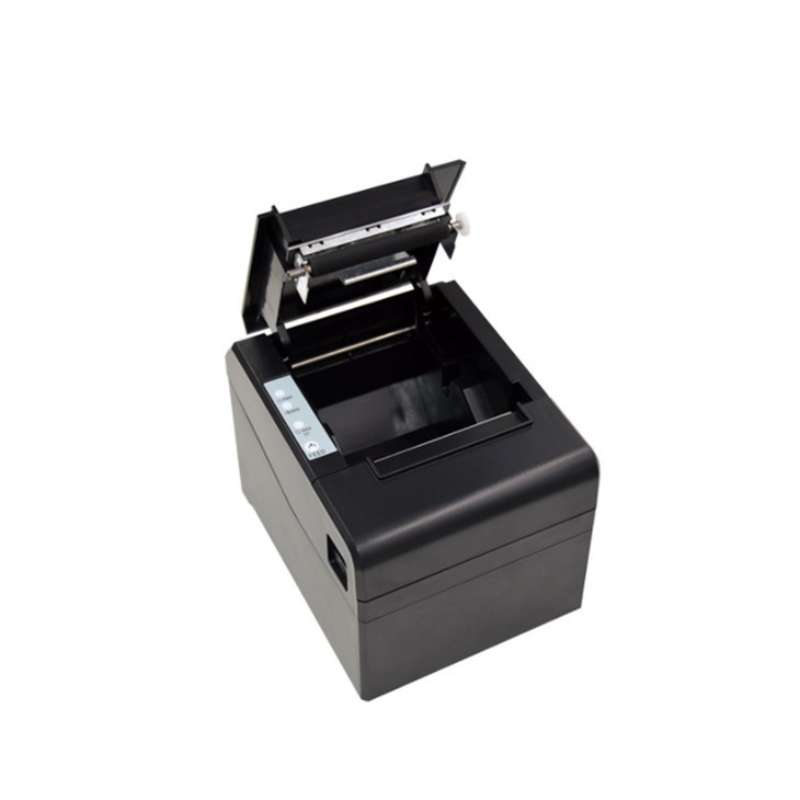

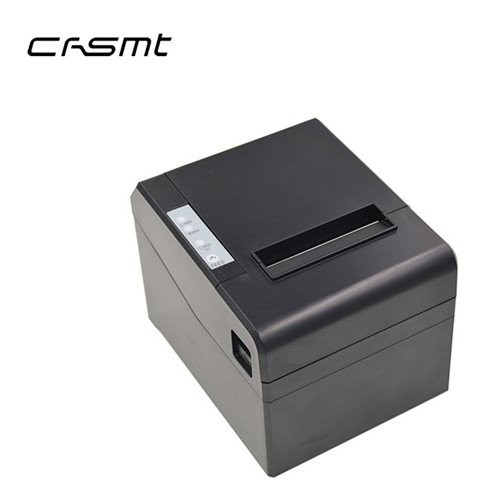

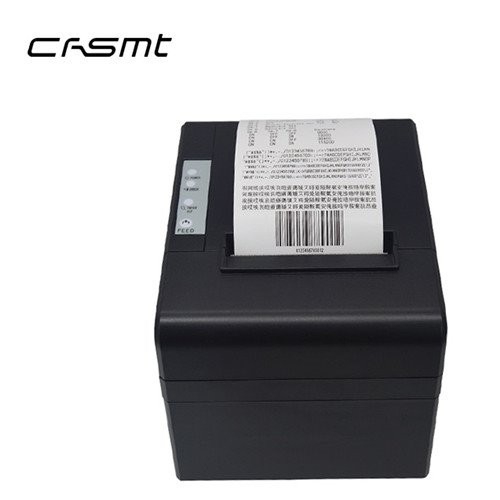

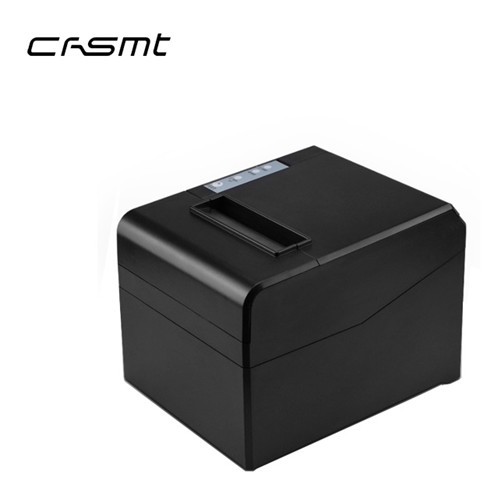

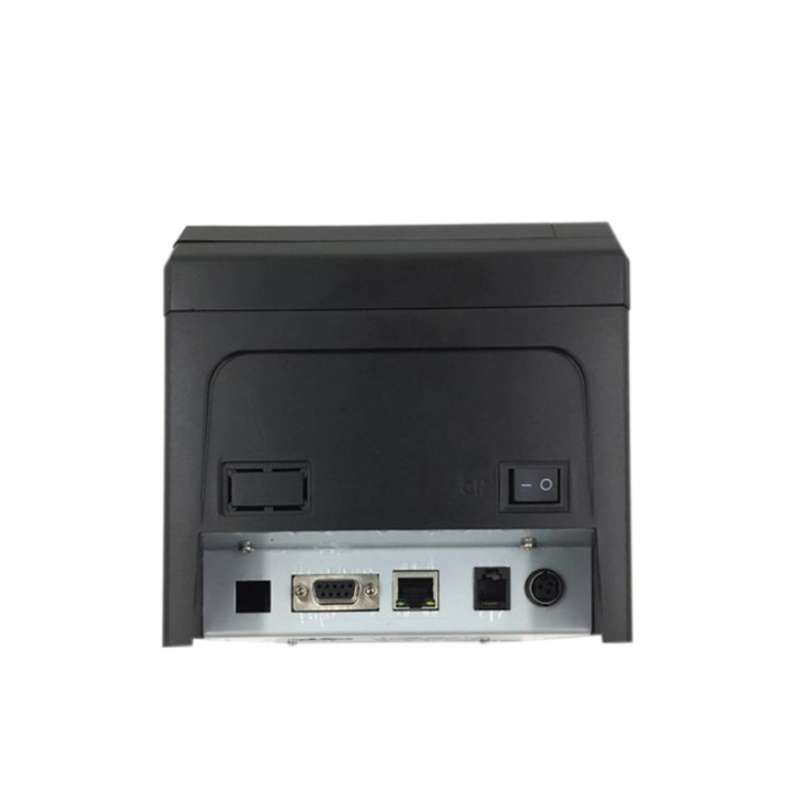

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Cashier printer 8330 |
1.4 |
8 pcs/carton |
20 |
52*49*38 |
Application:
80mm Thermal Receipt Printer is adapted to all kinds of retail POS systems, catering system, industrial control systems and other fields.
