Wireless Shipping Label Printer
Model: G7401
Description: Smart thermal printer, smart wireless printer
Key parameter: Single display
7 inch touch screen
Android 7.1
Qualcomm CPU
1G+8G
Built-in 4 inch thermal printer
NFC
Features:
1. Smart label printer with 7 inch IPS touch screen, 1280*800 resolution, multi-touch.
2. Wireless Shipping Label Printer runs Android 7.1.2 OS, Qualcomm msm8909 CPU, 1G+8G.
3. WiFi label printer with multiple communication ways: 4G, Wi-Fi, Bluetooth, Ethernet, OTG ect.
4. Built-in NFC, 2W loudspeaker.
5. Wireless Shipping Label Printer Supports to scan 1D barcode and QR code with camera.
6. Built-in 4inch thermal barcode printer, compatible with TSPL commands, smart print labels.
7. Large print width 104mm, supports to print 4x6 thermal labels.
8. Automatic paper calibration control.
9. Easy paper feeding and user-friendly control.
10. Offer SDK freely for development.
Specification
|
Control component |
Display |
7 inch touch screen , resolution: 1280*800 |
|
Operation |
Multi-Touch, Capacitive Touch Panel |
|
|
OS |
Android 7.1.2 |
|
|
CPU |
Qualcomm msm8909 Quad-core 1.1GHz |
|
|
RAM |
DDR-III 1GB |
|
|
ROM |
Built-in 8G |
|
|
TF Card |
Supports TF card (32GB) |
|
|
Camera |
8M AF front camera |
|
|
NFC |
Supports 14443A, 14443B, MIFAREIK/4K, MIFARE DESFire, Sony Felica |
|
|
Network |
4G |
|
|
Wi-Fi |
Built-in WiFi (IEEE 802.11 b/g/n) |
|
|
Bluetooth |
Built-in BlueTooth (Bluetooth 4.1） |
|
|
Port |
USB, Ethernet |
|
|
Printing |
Printer |
Built-in 4" thermal barcode printer |
|
Printing mode |
Direct thermal |
|
|
Resolution |
203 DPI |
|
|
Print width |
104mm (Max) |
|
|
Print speed |
127mm/sec |
|
|
Buffer |
DRAM: 8M, FLASH: 4M |
|
|
Print head temperature detect |
thermal sensitive resistance |
|
|
Print head position detect |
Microswitch |
|
|
Paper sensor |
Photoelectricity |
|
|
Interface |
USB |
|
|
Command |
TSPL |
|
|
Barcode type |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODEBAR, POSTNET, UPC_A, UPCA+2, UPCA+5, UPC-E, UPC-E+2, UPC-E+5, CPOST, MSI, PLESSEY, ITF14, EAN14, QR Code |
|
|
Font |
FONT 0 ~ FONT 8 |
|
|
Character |
1~10 times enlargement in horizontal and vertical directions; Rotation printing (0°, 90°, 180°, 270°) |
|
|
Image |
Single color PCX, BMP image file can be downloaded into Flash |
|
|
Paper |
Paper type |
Sticker, Thermal paper roll, adhesive thermal paper ect |
|
Paper width |
115±0.5mm |
|
|
Paper diameter |
External paper roll |
|
|
Paper way out |
Front paper out |
|
|
Paper cutting way |
Tear off |
|
|
Power |
Power supply |
Input: AC100V~240V, 50~60Hz, Output: DC 24V/2.5A |
|
Physical |
Dimensions |
218*135*138mm (WxDxH) |
|
Weight |
Approx. 1.58KG |
|
|
Environment |
Work |
Temperature 5~45℃; Humidity 25~85%RH |
|
Storage |
Temperature -10~50℃; Humidity 10~90%RH |
|
|
Accessories |

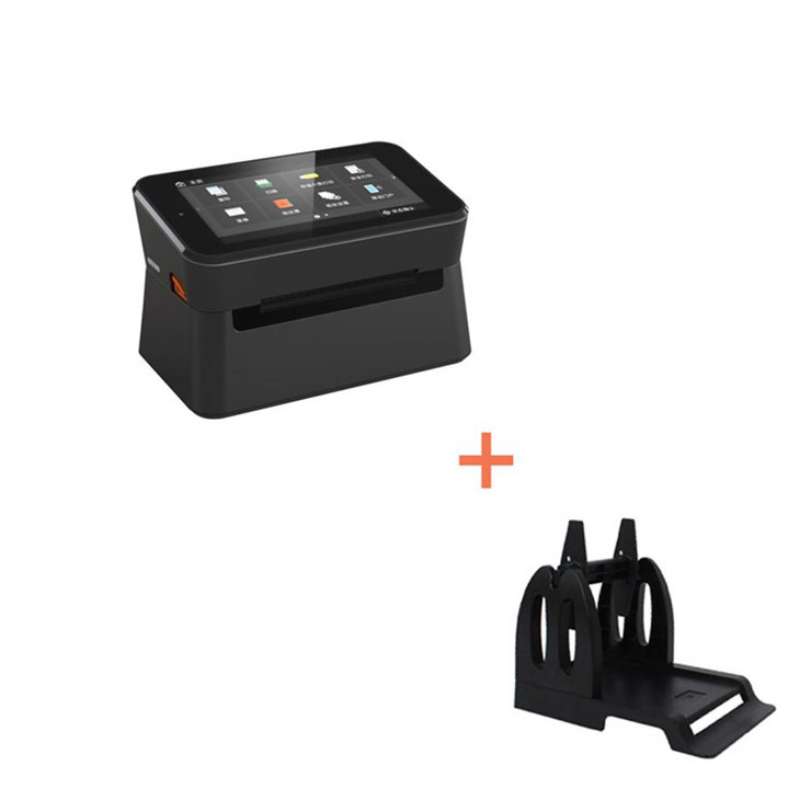

External Media stand/Holder |
Optional |

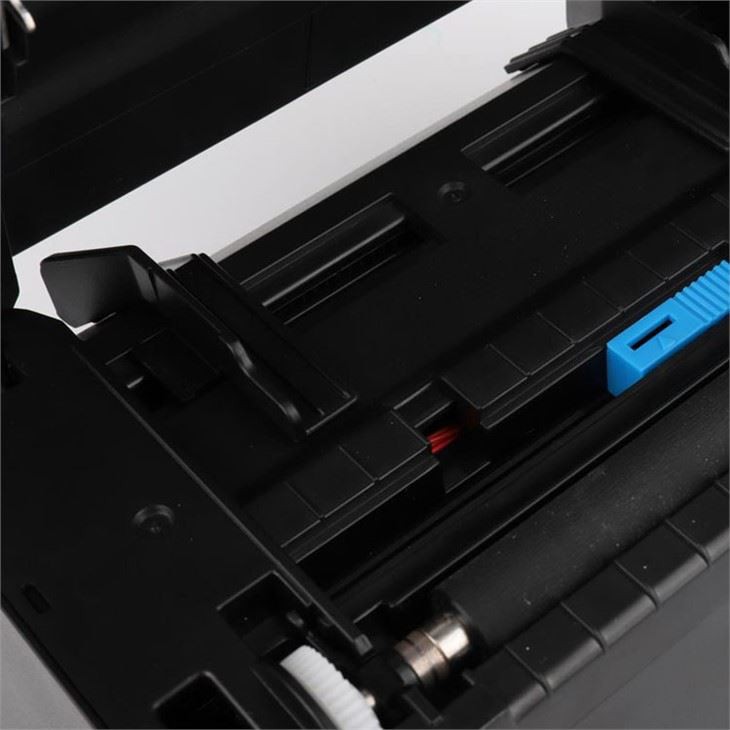

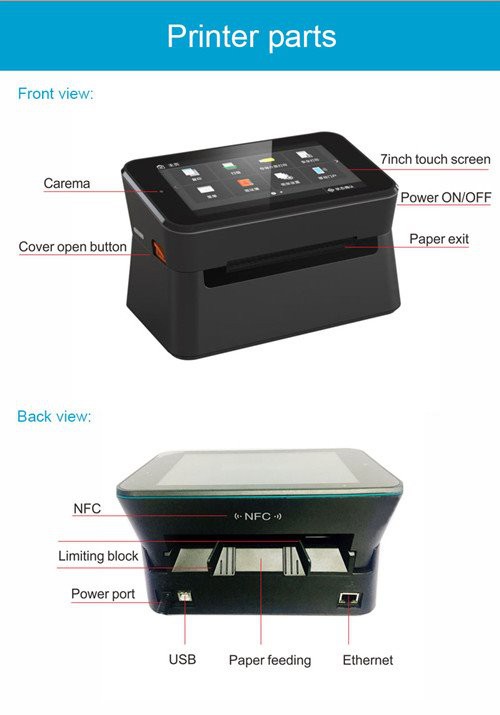

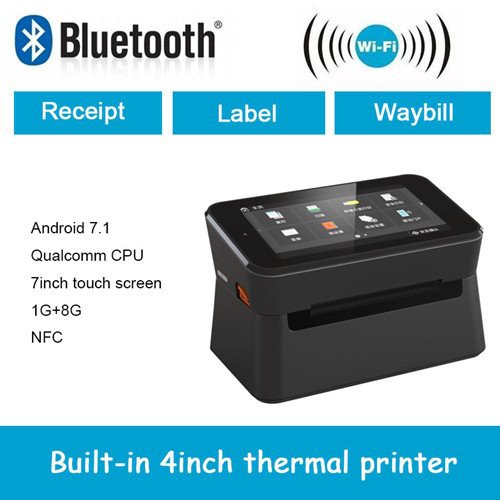

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| Wireless Shipping Label Printer |
2.7 |
4 pcs/carton |
12 |
67*28*49 |
