Touch Screen Printer
Model: AR-920I
Description: Android Printer, all in one smart printer
Key parameter: Single display
10.1 inch touch screen
1366*768 resolution
Android 8.1
RK3288 Quad Core
Built-in 58mm thermal printer
RTC function
The all-in-one smart printer with a 10.1 inch display, touch screen and built-in 2 inch thermal printer is an advanced device designed to make printing more efficient and convenient. It offers features like label and receipt printing, all in one compact design.
The 10.1 inch display provides clear and vivid visuals, allowing users to navigate the printer easily. The touch screen is responsive, user-friendly, and easy to navigate, providing smooth operation with fewer errors. The display also provides real-time status updates, allowing users to monitor their printing jobs in real-time.
The built-in 2 inch thermal printer offers both label and receipt printing, addressing the printing needs of various industries like retail stores, restaurants, and small businesses. The thermal printing technology ensures high-quality prints, making it a reliable device for businesses that require high-quality printing.
Touch Screen Printer is designed to be versatile, with features that cater to multiple industries. For instance, it can be used to print receipts in a restaurant, shipping labels for an eCommerce business, or barcode labels for a retail store. It's also an excellent device for on-the-go printing needs, thanks to its compact design.
Touch Screen Printer AR-920I is also easy to set up and customize. It integrates seamlessly with existing systems, making it an ideal solution for businesses that require quick and easy installation. The printer comes with a user-friendly interface, allowing for easy configuration and customization.
Overall, the Touch Screen Printer with a 10.1-inch display, and built-in 2 inch thermal printer is a versatile and reliable device designed to address the printing needs of various industries. With its real-time status updates, high-quality prints, and easy setup, it's definitely worth considering for businesses looking to upgrade their printing capabilities.
Features:
1. Android printer with 10.1 inch LCD display, touch screen, 1366*768 resolution.
2. Tablet label printer runs Android 8.1 OS, RK3288 Quad Core CPU, 1.6GHz.
3. Suitable for 20~60mm width of paper roll, flexible and convenient.

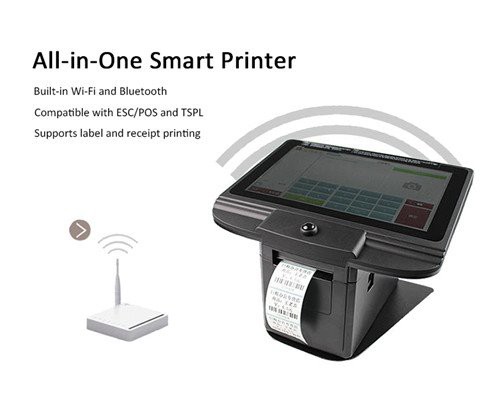

4. Touch Screen Printer with built-in Wi-Fi and Bluetooth, wireless connection.

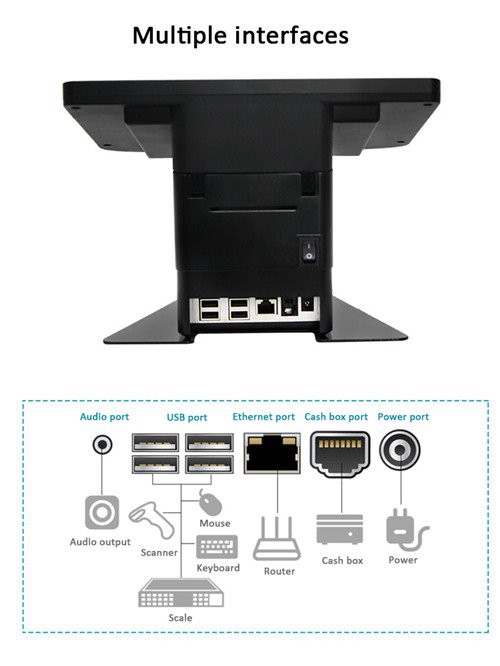

5. 4*USB DSB OTB 2.0 to connect multiple USB interface devices at the same time.
6. Android smart printer, compatible with ESC/POS and TSPL command set, label and receipt printing supported.
7. 1D barcode and QR code printing supported.
8. Cash drawer function supported.
9. Touch Screen Printer comes with built-in speaker and provide external audio jack, designed for noise environment, convenient to remind, more humanized.
10. RTC function to print real time.
Specification
|
Printing mode |
Thermal Label Mode |
Thermal Receipt Mode |
|
Display |
10.1" IPS screen , resolution: 1366*768 |
|
|
Operation |
Five-Touch ,Capacitive Touch Panel |
|
|
Operation system |
Android 8.1 |
|
|
CPU |
RK3288 Quad-core |
|
|
RAM |
2GB |
|
|
ROM |
8GB |
|
|
TF card |
1-32G |
|
|
Ethernet |
RJ45, 100M (IEEE 802.3u) |
|
|
USB |
4*USB 2.0/DSB/OTG 2.0 |
|
|
WI-FI |
Built-in WIFI (2.4G，IEEE 802.11 b/g/n) |
|
|
Bluetooth |
Built-in Bluetooth (Bluetooth 4.2) |
|
|
Cash drawer Port |
RJ12 |
|
|
Audio port |
3.5mm |
|
|
Speaker |
Double track ,4Ω/3W |
|
|
Printing method |
Direct thermal |
|
|
Resolution |
203 DPI |
|
|
Print speed |
127mm/s |
90mm/s |
|
Command |
TSPL |
ESC/POS |
|
Paper cutting way |
Tear off, front paper out |
|
|
Barcode type |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, QR Code |
UPC-A , UPC-E , JAN13(EAN13) , JAN8(EAN8) , CODE39 , CODABAR , ITF , CODE93 , CODE128 , QR Code |
|
Paper type |
Thermal paper roll, adhesive thermal paper, Sticker |
Thermal paper roll, adhesive thermal paper |
|
Paper width |
20mm～60mm (upper & bottom paper) |
58mm |
|
Paper diameter |
110mm max. |
|
|
Print head temperature |
thermal sensitive resistance |
|
|
Print head position |
Microswitch |
|
|
Paper detect |
Photoelectricity sensor |
|
|

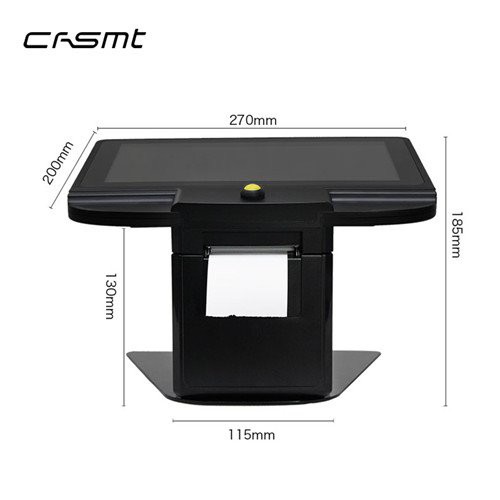

Dimension |
204mmx270mmx192mm (HxWxL) |
|
|
Weight |
2.2kg |
|
|
Cash drawer output |
DC 12V/1A |
|
|
Power supply |
Input: AC110V~220V, 50~60Hz, Output: DC 12VDC/5A |
|
|
Work |
Temperature 5~45℃; Humidity 20~80%RH |
|
|
Storage |
Temperature -10~50℃; Humidity≤93%RH（40℃） |
|
Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| Touch Screen Printer AR-920I |
3.5 |
4 pcs/carton |
16 |
59*42*59 |
Q and A:

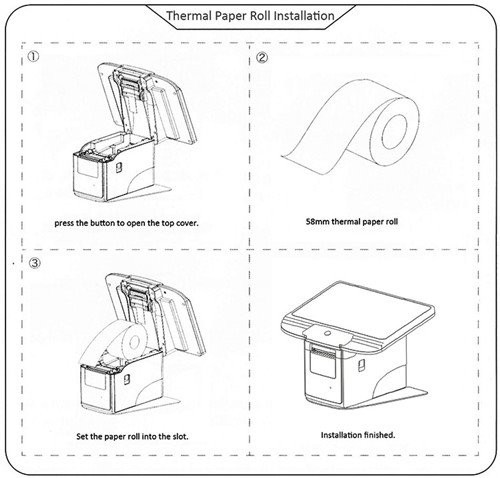

How to install thermal paper roll?

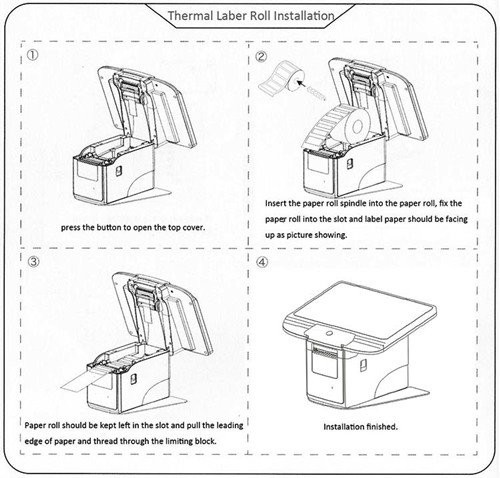

How to install thermal label roll?
