Android Wireless Printer
Model: D750 or D740
Description: Android Printer, Android smart printer
Key parameter: Single display
Android 7.1, Qualcomm CPU
1G+8G
7 inch touch screen
720*1280 resolution
With 1500mAH battery
Built-in 4 inch thermal transfer printer
300 DPI or 203 DPI print resolution
With auto cutter
Features:

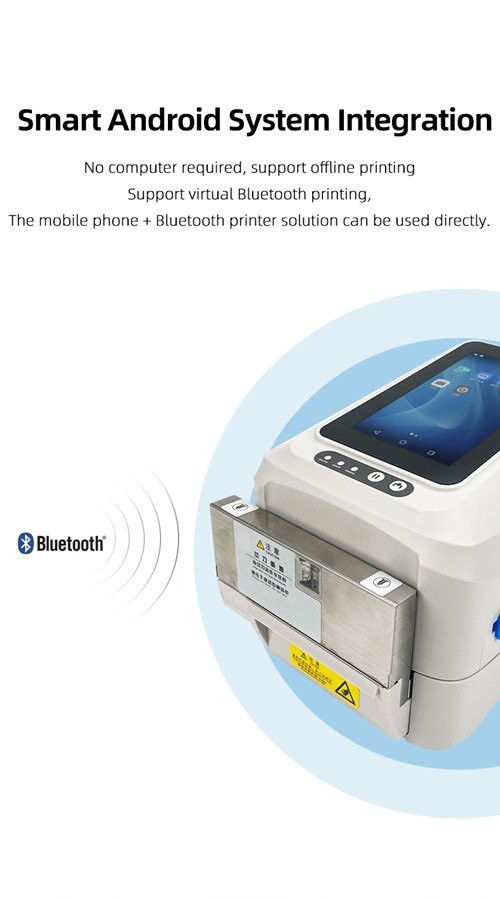

1. Android Wireless Printer, Smart Android system integration, no computer required
Android 7.1.2.
Qualcomm msm8909 Quad-core A7 (32bit) 1.1GHz.
Support offline printing, support virtual Bluetooth printing, the mobile phone + Bluetooth printer solution can be used directly.

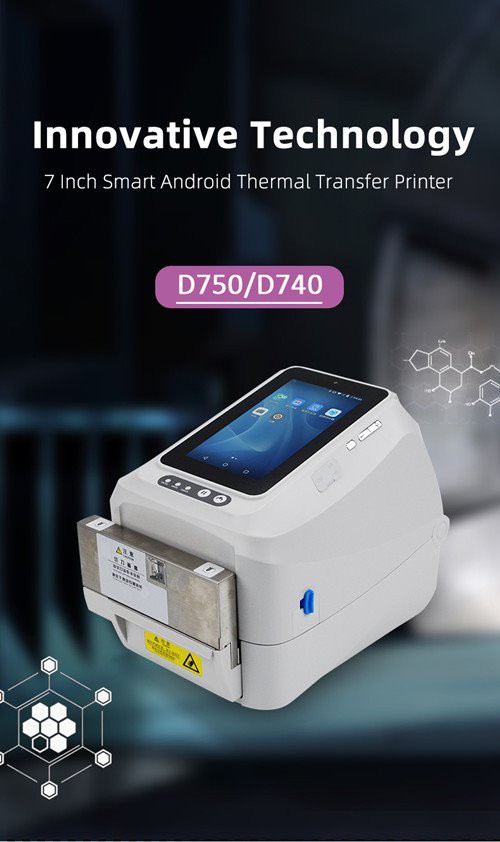

2. Thermal transfer label printer with 7 inch touch screen, visual editing, easy to control, flexible customization
Full HD large screen, five point touch capacitive screen.
Gravity sensor, sensitive touch.
3. Android Wireless Printer with dual printing mode, Automatic positioning, intelligent calibration

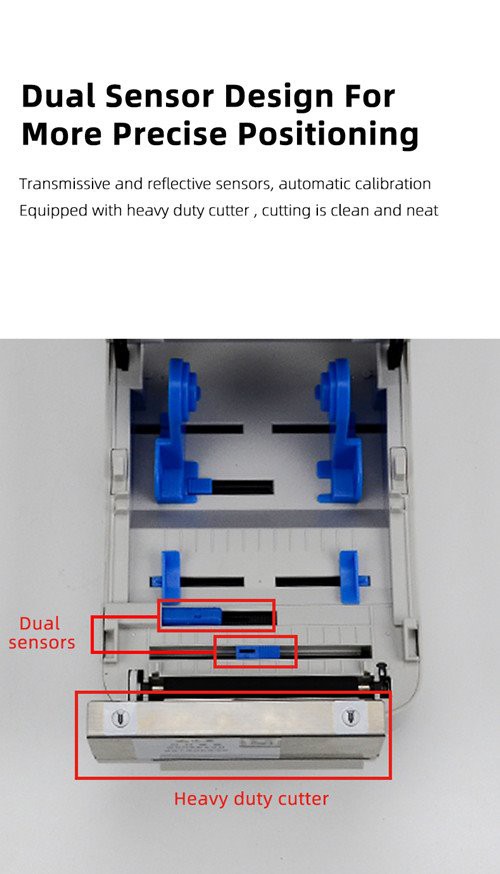

Transmissive and reflective sensors for automatic calibration.
Automatic positioning labels position, smart calibration, to ensure that each label in the correct position.

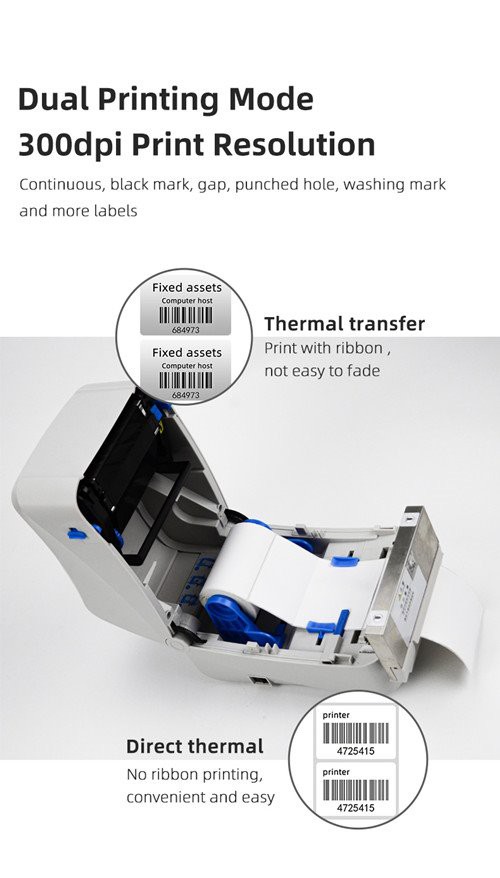

Thermal transfer and direct thermal mode, 300 DPI High resolution printing.
Compatible with TSPL commands.
Equipped with heavy duty cutter, cutting is clean and neat.
4. Android Wireless Printer, a variety of label types supported
Continuous, black mark, gap, punched hole, Fan fold, wristband, washing label, silver PET label, sticker, store shelves label, clothing tag, and more labels.
Specification
|
Printer Model |
D750 |
D740 |
||
|
Control component |
Display |
7 inch touch screen , resolution: 720*1280 IPS LCD |
||
|
Operation |
Five-Points Touch, Capacitive Touch Panel |
|||
|
CPU |
Qualcomm msm8909 Quad-core A7 (32bit) 1.1GHz |
|||
|
GPU |
A304 409, 6MHz |
|||
|
RAM |
1GB LPDDR3 533 MHz |
|||
|
ROM |
8GB eMMC |
|||
|
OS |
Android 7.1.2 |
|||
|
TF Card |
Supports TF (32GB) |
|||
|
Wi-Fi |
Built-in WiFi (IEEE 802.11 b/g/n 2.4G) |
|||
|
Network |
2G/3G/4G, B1/B3/B5/B8/B34/B38/B39/B40/B41 |
|||
|
Bluetooth |
Built-in Bluetooth （Bluetooth 4.1） |
|||
|
NFC |
Support |
|||
|
SIM |
Supports standard SIM card, 25*15mm |
|||
|
Camera |
8M AF front camera auto focus |
|||
|
Speaker |
1x1W |
|||
|

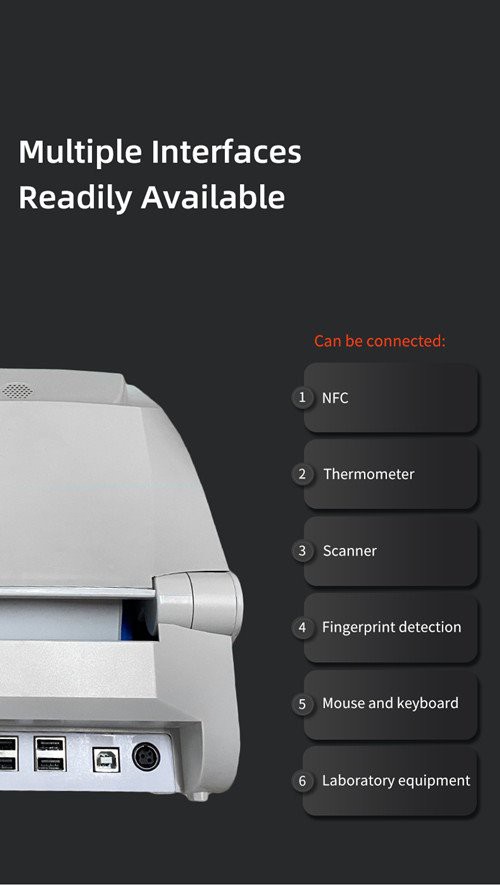

Port |

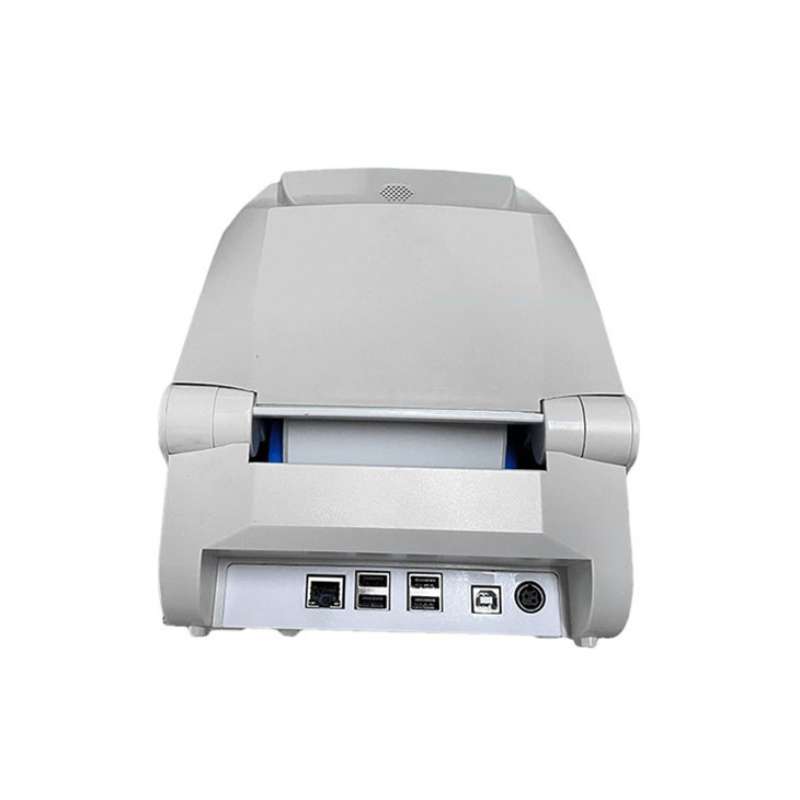

USB OTG + Ethernet + 4*USB HOST |
|||
|
Printing |
Print Method |
Thermal Transfer and Direct Thermal |
||
|
Command set |
TSPL |
|||
|
Resolution |
300 dpi |
203 dpi |
|
|
|
Print Speed |
2~4 inch/s (51-102mm/s) |
2~6 inch/s (51-152mm/s) |
||
|
Print Width |
Max. 108mm (4.25") |
Max. 104mm (4.09") |
||
|
Print Length |
Max. 2286mm (90") |
|||
|
Dot Density |
203dots/inch (8dots/mm) |
|||
|
Dot Size |
0.125x0.125mm (1mm=8dots) |
|||
|
Print head temperature detect |
Thermal sensitive resistance |
|||
|
Print head position detect |
Microswitch |
|||
|
BlackMark position detect |
Reflective sensor (adjustable) |
|||
|
Paper sensor |
Transmissive (adjustable) |
|||
|
Buffer |
DRAM: 8M FLASH: 4M |
|||
|
Interface |
USB & Virtual Bluetooth |
|||
|
Auto Cutter |
Cutting type |
Full cut, front paper out |
||
|
Cutting Media Thickness |
0.06~0.25mm |
|||
|
Ribbon |
Ribbon OD |
67mm (Max.) |
||
|
Ribbon Length |
300m (Max.) |
|||
|
Ribbon Core Size |
1 inch (25.4mm) |
|||
|
Ribbon Width |
30mm-110mm |
|||
|
Ribbon Rolling Up Method |
Outward Rolling |
|||
|
Label roll |
Type |
Continuous, black mark, gap, punched hole, Fan fold, wristband, washing label, silver PET label, sticker, store shelves label, clothing tag and more labels |
||
|
Rolling Up Method |
Printing side outward rolling |
|||
|
Width |
20mm (0.78") ~ 120mm (4.72") |
|||
|
OD |
Max.127mm (5") |
|||
|
Thickness |
0.06mm(2.36mil)-0.254mm(10mil) |
|||
|
Roll Core Size |
25.4mm(min） |
|||
|
Gap |
Min. 2 mm (0.09") |
|||
|
Graphics |
Graphics Processing |
Support BMP/PCX/BAS files |
||
|
Character Size |
ASCII: Font 0 ~ font 8 GB18030: 24x24 |
|||
|
Enlargement & Rotation |
1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation |
|||
|
Barcode |
CODE128, EAN128, ITF, CODE39, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, QR CODE |
|||
|
Editing Software |
Freely Offer SDK for building customer's own applications |
|||
|
Power |
Power supply |
Input: AC100-240V 50/60Hz 2A Output: DC24V 2.5A |
||
|
Battery |
3.7V/1500mAh |
|||
|
Battery cycle life |
400 times，≥80% |
|||
|
Operating |
Work |
Temperature: 5~40℃, Humidity: 20~90%RH |
||
|
Storage |
Temperature: -25~55℃, Humidity: 20%~93%RH |
|||
|
Physical |
Weight |
3.6kg |
||
|
Dimensions |
310mmx200mmx240mm |
|||
|
Package weight |
5kg (1pcs) |
|||
|
Package size |
420mmx275mmx300mm (1pcs) |
|||
|
Reliability |
Auto cutter |
1.5 million cuts |
||
|
Mechanism |
30km |
|||

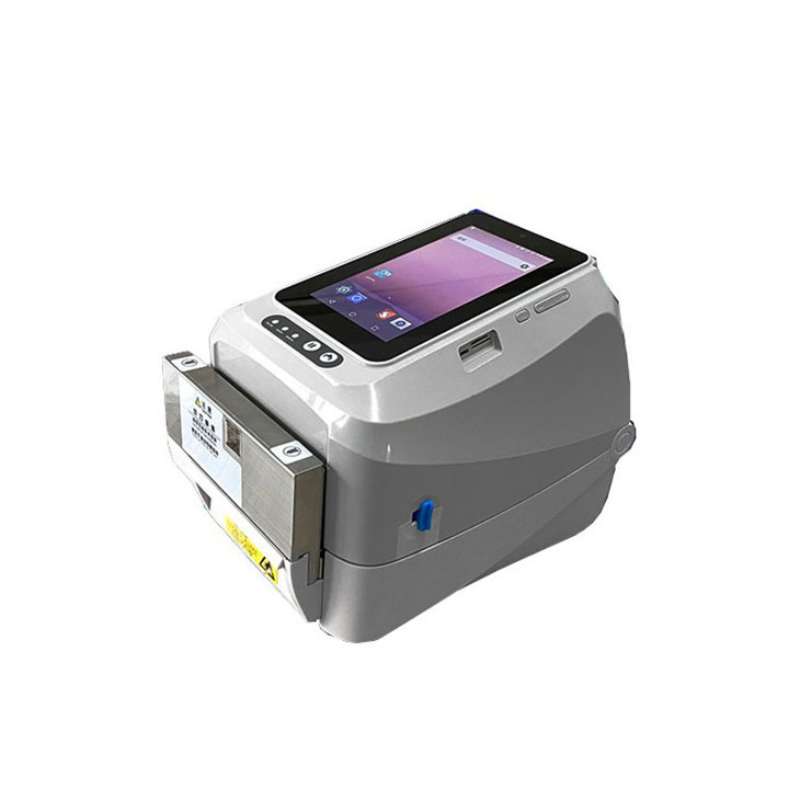

Product Show:
