Smart Label Printer
Model: AR-930II
Description: Intelligent printer, Smart printer
Key parameter: Single display
9 inch touch screen
1024*600 resolution
Android 8.1
Built-in 80mm thermal printer
RTC function
Features:
Smart Label Printer has been integrated android operation system, no need to connect computer. Operate this device as easily as operate smart phone.
1. Android printer with 9 inch LCD display, touch screen, 1024*768 resolution.
2. Quad Core CPU, 1.6GHz, fast response, editing and printing through tablet, no need to connect PC.
3. All in one smart printer, Android 8.1 OS, strong compatibility.
4. Android thermal printer, two kinds of printing mode: label printing and receipt printing.
5. Smart Label Printer supports 20~80mm width thermal paper roll and label.
6. Print head pressure adjustable, label and paper automatic recognition and calibration.
7. Smart Label Printer standard interface: 4*USB + 1* Ethernet + 1* Cash drawer.
8. Integrated Wi-Fi, Bluetooth support cash drawer connection, 3G module optional.
9. 1D barcode and QR code printing supported.
10. Multiple USB interface for mouse, keyboard, scanner connection.
11. RTC function to print real time.
12. Smart Label Printer supports smart network printing.
Specification
|
Tablet |
|
|
Display |
9" TN touch screen, Resolution: 1024*600 |
|
Operation |
Five-Touch ,Capacitive Touch Panel |
|
OS |
Android 8.1 |
|
CPU |
RK3288, Quad-core, integration GPU, 1.8GHZ |
|
RAM |
DDR3,1GB |
|
ROM |
2GB |
|
Flash |
Built-in 8G |
|
TF card |
1-32G |
|
Ethernet |
100M (IEEE 802.3u) |
|
USB |
4*USB 2.0/DSB/OTG 2.0 |
|
WI-FI |
Built-in WIFI (IEEE 802.11 b/g/n) |
|
Bluetooth |
Built-in Bluetooth (Bluetooth 2.0） |
|
Speaker |
Double track , 4Ω/3W |
|
Paper |
|
|
Paper type |
Thermal paper roll, Sticker, adhesive thermal label roll (continuous type or with gap) |
|
Paper width |
20mm～80mm (upper & bottom paper) |
|
Paper diameter |
100mm max. |
|
Printer |
|
|
Printing Method |
Direct thermal |
|
Resolution |
203 DPI |
|
Print speed |
127mm/s Max. |
|
Print width |
80mm Max. |
|
Paper cutting way |
No auto cutter, paper tear off via blade, front paper out |
|
Print head temperature |
thermal sensitive resistance |
|
Print head position |
Micro switch |
|
Paper sensor |
Photo electricity sensor |
|
Command |
TSPL and ESC/POS |
|
Barcode |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5， EAN8, EAN8+2, EAN8+5, CODABAR, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, QR Code |
|
Character font |
Font 0～Font 8, GB18030, Simplified/Traditional/Korea: 24*24dot |
|
enlargement and Rotation |
1-10 times enlargement in horizontal and vertical directions; Rotation printing (0°,90°,180°,270°) |
|
Graphic logo |
Single color PCX , BMP image file can be upload into printer |
|
Dimension |
245x150x168mm (LxWxH) |
|
Weight |
1.9kg |
|
Power |
|
|
Cash drawer output |
DC 24V/1A |
|
Power supply |
Input: AC110V~220V, 50~60Hz, Output: DC 24V/2A |
|
Environment |
|
|
Operation |
Temperature 5~45℃; Humidity 20~80%RH (No condensing) |
|
Storage |
Temperature -10~50℃; Humidity ≤93%RH（40℃） |

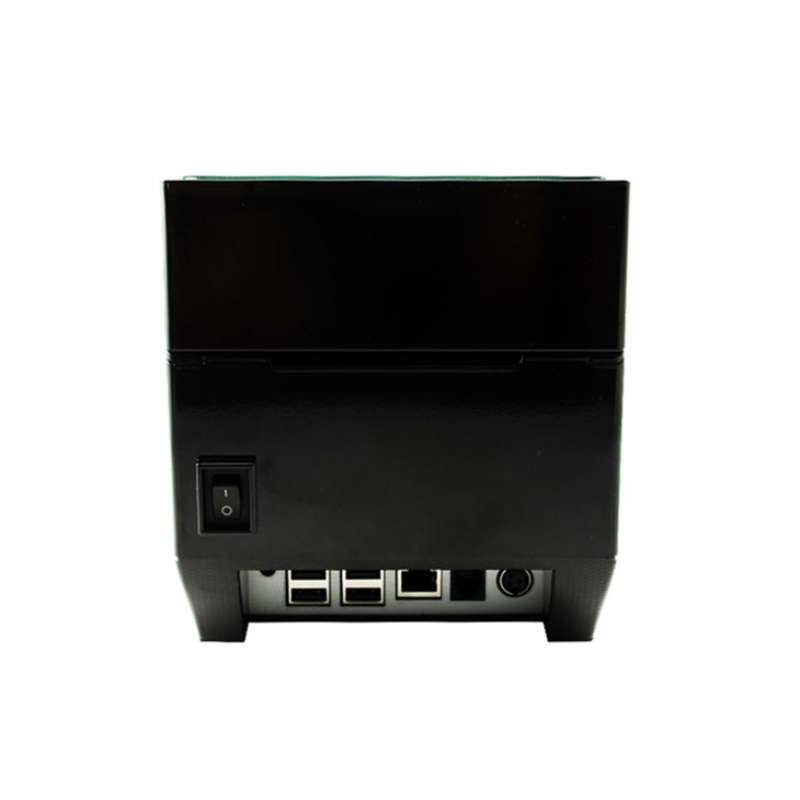

Product Show:
Note:

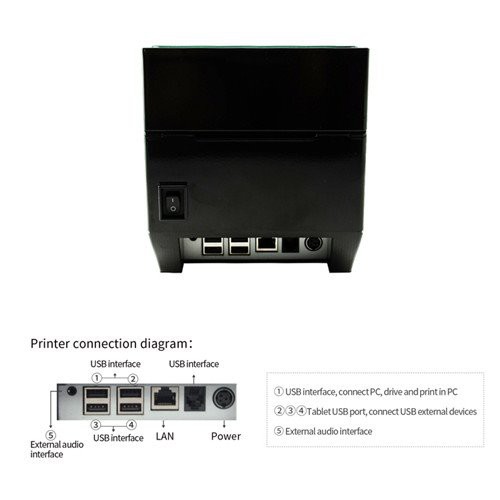

4 USB ports: support hot plug, the left top one is for computer connection to set up printer parameters when necessary, others can be connected by mouse, keyboard and scanner ect.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| Smart Label Printer |
4 |
4 pcs/carton |
16 |
59*42*59 |
Application:
Smart Label Printer is a micro commercial printer with barcode and receipt printing function which can support your safe reliable effective and practical print quality.
Tablet printer integrated android OS service platform with android application support, cable free, touch print just like you operate the mobile phone. No matter the user or developer, you would experience powerful functions both in industry applications and mobile internet with this intelligent printer. O2O mobile internet support and network administration, make different applications in different fields, self-owned cloud system makes easy upgrade of OTA.
Direct thermal printing, adjustable printing speed, two printing mode types, and built-in printing templates, it will fully be improved your print efficiency in a short time.
Smart Label Printer is widely used in various of industry like traffic, post, commercial activities, logistic, enterprise management ect, you can connect by standard USB, Ethernet port, Bluetooth, Wi-Fi, with the other external equipment to do direct thermal printing.
