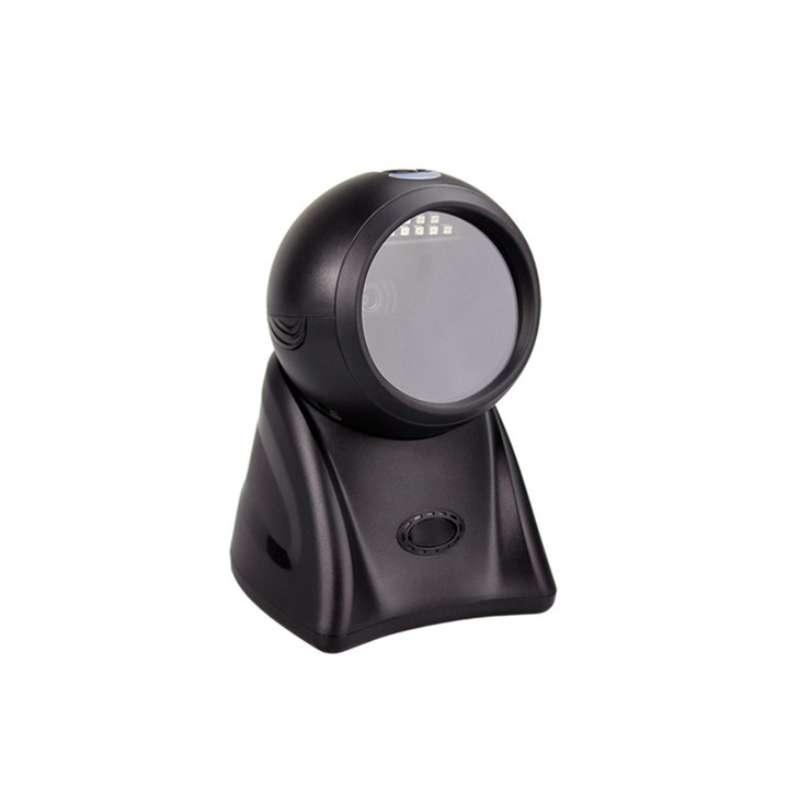

Desktop QR Code Reader
Model: S-8300
Description: 2D barcode reader, 2D imager
Key parameter: 300 times/sec scanning speed
USB interface
Features:
1. Code scanners use the latest high-performance hardware decoding chip to decode various complex 1D barcode and 2D barcode.
2. QR code barcoded scanner, unique shape design, rotatable base to meet many scanning applications.
3. USB barcode scanner, plug and play, no need any driver, easy to operate.
4. Million pixels, super-efficient scanning.
5. POS scanner Supports to read screen bar codes from smartphone and PC.
6. USB and RS232 interface, can automatically match device.
7. Desktop QR Code Reader, Blue and red LED indicator, double buzzer to adapt to various nosy environments.
8. The cable is made of high temperature resistant material and high quality inner.
Specification
|
OPERATIONAL PARAMETER |
|
|
Image (pixels) |
680pixels(H)*480 pixels(v) |
|
Light Source |
Aiming: 617 nm LED ; Illumination: 6500K LED |
|
Decode Capability |
2D Barcode: QR Code, Data Matrix, PDF417, Aztec, Maxicode |
|
1D Barcode: UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), RSS 14, RSS Limited, RSS Expanded |
|
|
Depth of Filed |
0-200mm @ UPC/EAN 13mil PCS=90%；0-150mm @ QR 20mil PCS=100% |
|
Scan Angle |
Left and right 60°/Front and Rear 60°/Move360° |
|
Field of view |
48° horizontally, 30° vertical |
|
Read Resolution |
≥ 5mil |
|
Print Contrast |
≥25% |
|
Visual Indicator |
Blue and Red double Colored LED light, Double Buzzer |
|
Interface |
TTL-232 , USB (HID-KBW, V-com) |
|
PHYSICAL CHARACTERISTICS |
|
|
Size |
105mm*103mm*162mm（L*W*H） |
|
Package Box Size |
120mm*105mm*175mm（L*W*H） |
|
Weight |
270g (Without cable） |
|
Cable |
Standard 1.8M straight |
|
POWER PARAMETER |
|
|
Input Voltage |
5VDC±10% |
|
Working current |
400mA |
|
ENVIRONMENTAL PARAMETER |
|
|
Operating Temperature |
-20℃~+60℃ |
|
Working Humidity |
5% to 95% relative humidity, non-condensing |
|
Storage Temperature |
-40℃~+70℃ |
|
Light Levels |
0~100,000Lux |
Product Show:
Application:

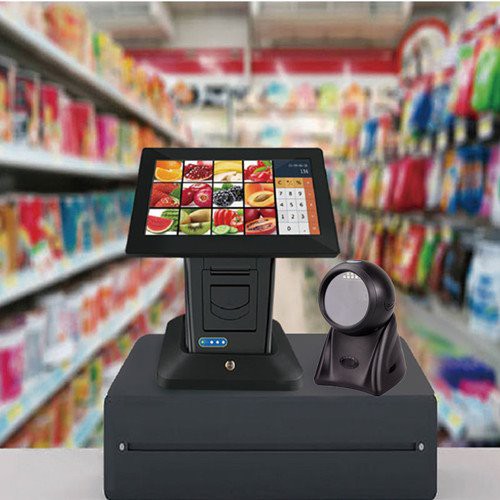

Desktop QR Code Reader Supports to read screen barcodes, such as mobile phones and computers, supports to scan QR code from picture, mainly used in large supermarkets, shopping malls, pharmacies, clothing stores, hotels, jewelry stores, more industries, etc.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| Desktop QR Code Reader |
0.35 |
20 pcs/carton |
10 |
55*27*38 |
