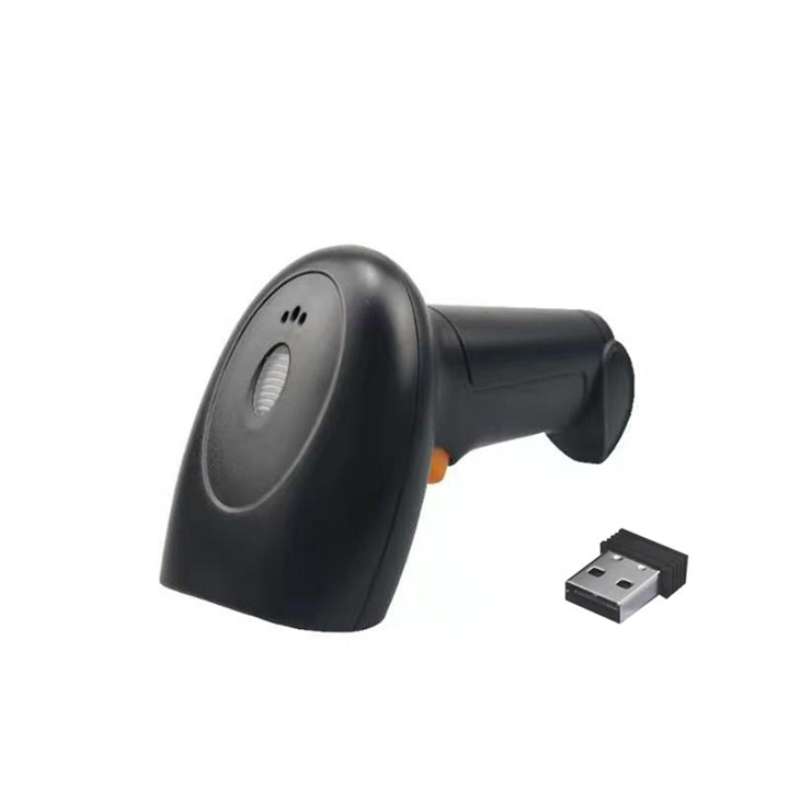

6802C Barcode Scanner
Model: 6802C or 6802CW
Description: Price scanner, handheld scanner
Key parameter: 300 times/sec scanning speed
USB interface
Features:
1. 6802C Barcode Scanner with IP54 Waterproof and dustproof protection.
2. Supports USB, TTL-232 and Virtual serial port.

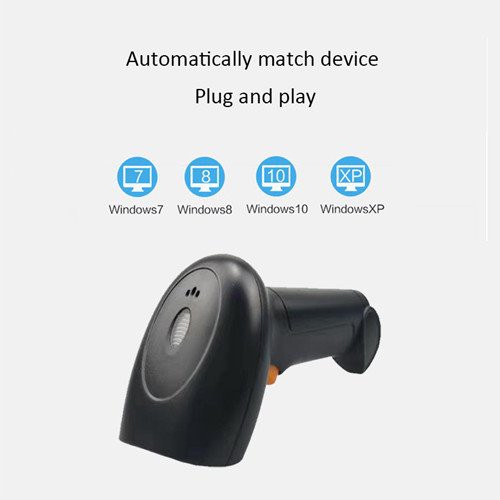

3. Handheld scanner, plug and play, not need any driver, easy to operate.
4. Use complete dust-proof design to meet more applications.
5. 6802C Barcode Scanner is using latest decoder technology, can read all 1D and 2D barcodes.
6. Ergonomic design, comfortable operating sense, it is not easy to fatigue.

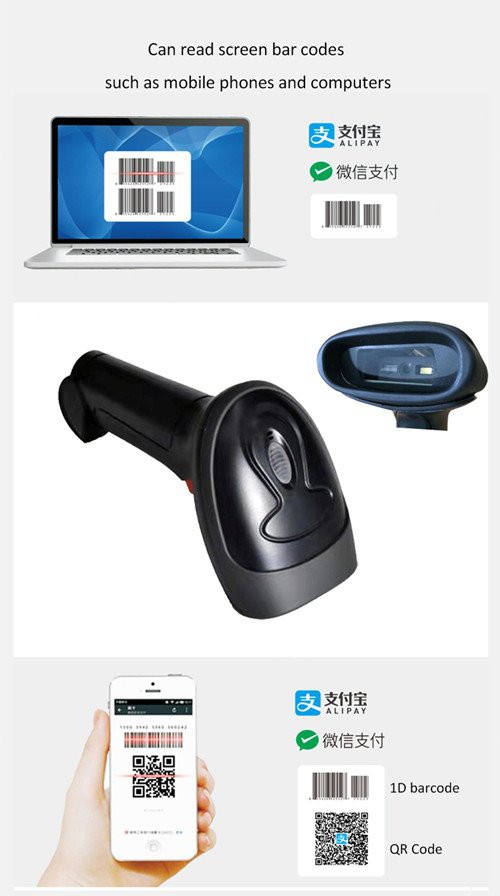

7. Supports to read screen barcodes, such as mobile phones and computers.
8. QR code scanner widely used in WeChat pay and AliPay, can quickly realize the ID and QR codes.
9. Blue LED indicator and loud buzzer sound, can quick feedback reading records.
10. Read Micro QR, MicroPDF417, Maxicode, Aztec etc.
Specification
|
OPERATIONAL PARAMETER |
|
|
Image(Pixels) |
640 pixels(H)*480 pixels(v) |
|
Light Source |
Aiming: 617 nm LED; illumination:6500K LED |
|
Depth of Field |
40-200mm@UPC/EAN13mil PCS=90%;20-250mm@QR 20mil,PCS=100% |
|
Scan Angle |
Elevation angle 65°/Tilt angle 30°/Declination 55° |
|
Field of view |
34° horizontal, 28° vertical |
|
Read Resolution |
More than 5 mil |
|
Print Contrast |
More than 25% |
|
Visual Indicator |
Blue LED Lights , Buzzer |
|
Communication Interfaces |
TTL-232, USB (HID-KBW, Virtual serial Port) |
|
Beeper Operation |
Programmable tone & Volume |
|
PHYSICAL CHARACTERISTICS |
|
|
Dimension H x W x L |
171mm*70mm*96mm(Length x Width x Height) |
|
Weight |
150g (with cable) |
|
Material |
ABS + PC |
|
Cable |
Standard 1.8M straight |
|
POWER PARAMETER |
|
|
Input Voltage |
5VDC±10% |
|
Working current |
170mA |
|
SAFETY REGULATORY |
|
|
Laser Class |
CE EN55022 B, FCC Part 15 Class B |
|
ENVIRONMENTAL PARAMETER |
|
|
Operating Temperature |
-20°C to 60°C |
|
Storage Temperature |
-40°C to 70°C |
|
Working Humidity |
5% to 95% relative humidity, non-condensing |
|
Ambient Brightness |
0 to 100,000 Lux (Daylight) |
|
Drop Durability |
Designed to withstand 5 Meters drop |
|
IP Level |
IP54 |
|
DECODE CAPABILITY |
|
|
2D bar code |
QR Code, Data Matrix, PDF417,Aztec, Maxicode, etc. |
|
1D Barcode |
UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), RSS 14, RSS Limited, RSS Expanded |

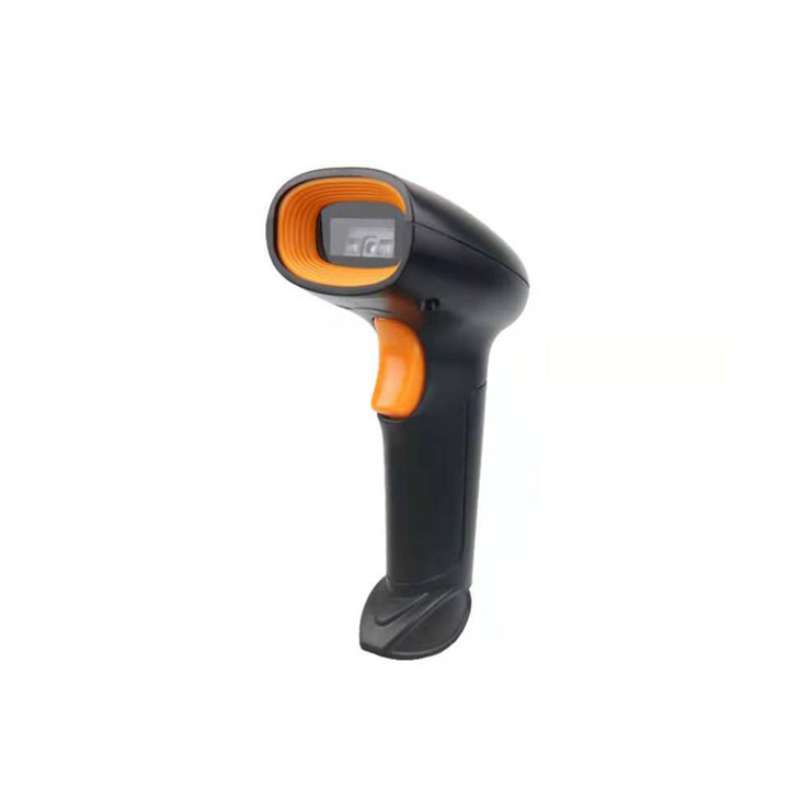

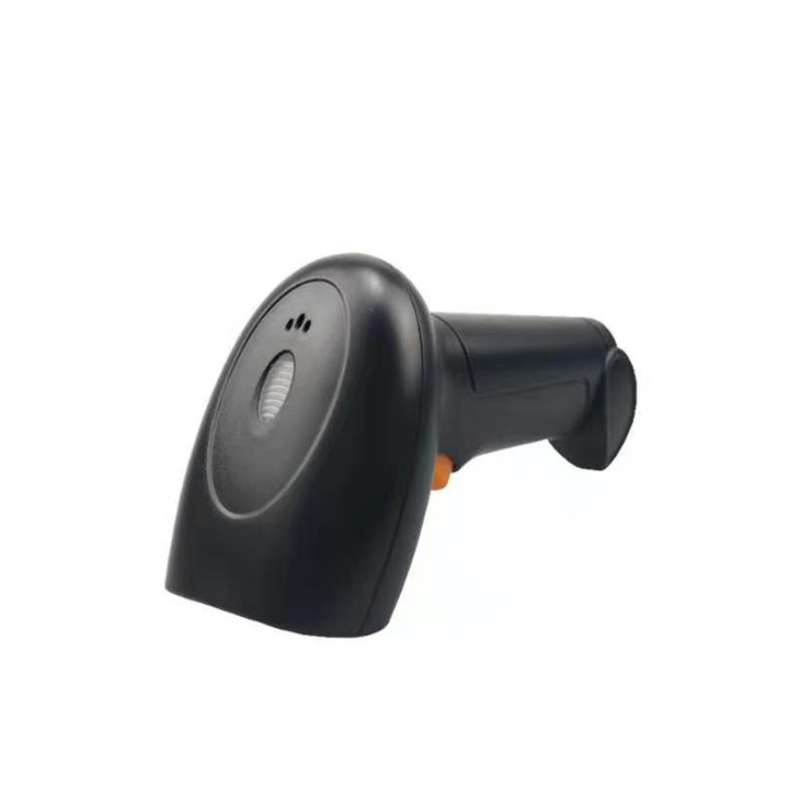

Product Show:
Application:
6802C Barcode Scanner Supports to read screen barcodes, such as mobile phones and computers, supports to scan codes from image, mainly used in logistic, inventory, retail, carting, POST, Tax, commerce, health care, tobacco, more industries, etc.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
QR code reader |
0.25 |
50 pcs/carton |
13 |
57*42*44 |
