Mobile Data Terminal
Model: 6S
Description: mobile data terminal computer, mobile terminal, GSM wireless data terminal
Key parameter: Android 11, 8-Core, 2.0GHz
6", 2160*1080
4G+64G, 6G+128G
5000mAh battery
Type C charger
Features:
* Mobile Data Terminal, Qualcomm 8-Core, 2.0GHz
* Android 11, 4G+64G
* 6-inch screen, 1080P, Corning Gorilla Glass
* 2.4G/5G, WiFi, Bluetooth, NFC
* 5000mAh battery
* IP68 protection level
* 1.5 meters anti-fall
* Mobile Data Terminal with support for global frequency bands, 7 modes, and over 40 network frequency bands.
* A new generation of code scanning engine, dual engines work at the same time, scanning long and short focus at the same time
Specification:
|
Performance parameters |
CPU |
Qualcomm Snapdragon, 8-core, 2.0GHz |
|
OS |
Android 11.0 |
|
|
Memory |
4GB LPDDR4X (optional 6GB) |
|
|
Storage |
64GB eMMC 5.1 (optional 128GB) |
|
|
Physical parameters |
Dimensions |
164(length) x 77.2(width) x 13(thickness)mm |
|
6.4(H) x 3.0(W) x 0.51(T)inch |
||
|
Weight |
259 g / 9.14 oz. (including battery) |
|
|
Display |
6 inches, 2160(H) x 1080(W) FHD+, industrial-grade IPS HD display |
|
|
Touch screen |

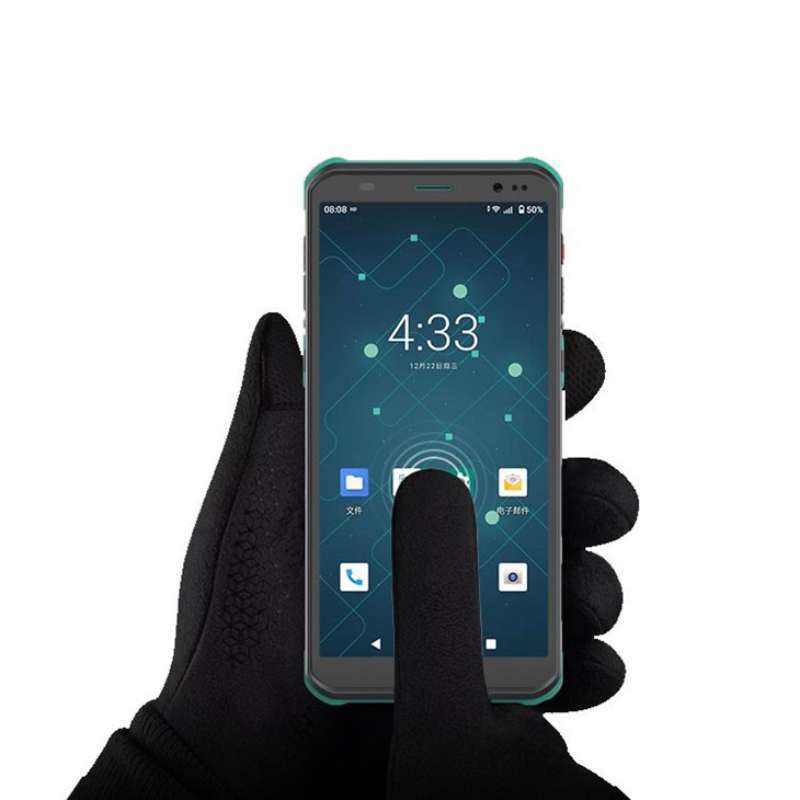

Dual-mode capacitive touch with stylus or non-gloved or gloved finger input (conductive stylus sold separately); Corning Gorilla Glass |
|
|
Brightness |
450 NITS, LED backlight |
|
|
Battery |
Rechargeable lithium-ion battery, rated capacity 3.85V/5000mAh, nominal capacity 3.85V/5150mAh, QC3.0 fast charging (up to 2.8A), charging time does not exceed 2.5h (at room temperature) |
|
|
Backup power |
Supports hot-swappable battery replacement, the host does not shut down |
|
|
Expansion Card Slot |
MicroSD card, support SDHC, SDXC, up to 256GB |
|
|
Extension ports |
Back POGO PIN: USB 2.0, 5V/3A charging interface |
|
|
Bottom POGO PIN: USB 2.0, 5V/3A charging interface |
||
|
SIM card slot |
2 x Nano SIM card, 1 x e-SIM (optional) |
|
|
Notify |
Alert sound; multi-color LED; vibration motor |
|
|
Internet connection |
2G/3G/4G, Wi-Fi, Bluetooth, support Ethernet base |
|
|
Voice and audio |
Ultra-linear speaker (2W), earpiece, dual microphones (support noise reduction), Type C USB headset |
|
|
Keyboard |
On-screen keyboard and enterprise keyboard |
|
|
Button |
Six programmable buttons: 2 dedicated scan buttons, power button, volume up/down button, custom button |
|
|
Interface port |
Bottom USB 2.0 OTG, support OTG |
|
|
Environment |
Operating temperature |
-20℃ to +60℃ |
|
Storage temperature |
-40℃ to +70℃ |
|
|
Humidity |
5% to 95%, no condensation |
|
|
Sealing |
IP68 |
|
|
Drop |
Can withstand multiple drops from a height of 1.5 m to concrete ground |
|
|
Tumble Specification |
Withstands 1,000 tumbles from 1.6 ft./0.5 m |
|
|
Electrostatic discharge (ESD) |
+/-15 kV air discharge, +/-8 kV direct discharge |
|
|
Interactive Sensor Technology (IST) |
light sensor |
Automatically adjusts display backlight brightness |
|
Magnetometer |
Support electronic compass |
|
|
Motion sensor |
3-axis gyroscope, 3-axis accelerometer |
|
|
Proximity sensor |
Automatically disable touchscreen and turn off display display in handset mode (voice call) |
|
|
Fingerprint sensor |
Support fingerprint unlocking |
|
|
Data collection |
Scanning |

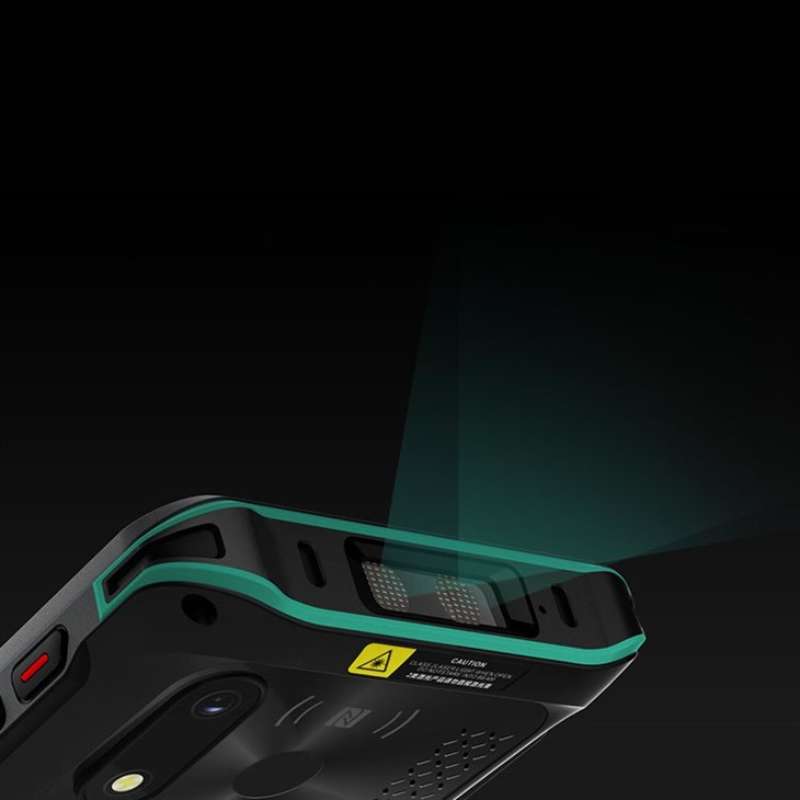

Professional two-dimensional scanning engine such as ME5066/SE4710/N6703/ |
|
Camera |
Front - 5MP; f/2.4 aperture |
|
|
Rear - 16MP autofocus; supports PDAF phase focusing; f/1.85 aperture; flash LED generates balanced white light; supports flashlight mode |
||
|
NFC |
Support ISO14443A/B, ISO15693, MIFARE, FeliCa, etc., support card reading, point-to-point, card simulation |
|
|
Wireless wide area network |
Radio frequency band |
TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/B7/B8 /B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B30/B66) |
|
WCDMA(B1/B2/B4/B5/B6/B8 /B19) |
||
|
TD-SCDMA(B34/B39) |
||
|
CDMA2000 1x EV-DO Rev.A BC0 (800MHz) |
||
|
CDMA 1x |
||
|
GSM/EDGE/GPRS(850/900/1800/1900) |
||
|
Data rate |
GPRS: DL / UL171.2kbps |
|
|
EDGE: DL / UL384 kbps |
||
|
CDMA1x: DL 153.6kbps/ UL 153.6kbps |
||
|
EVDO: DL 3.1 Mbps / UL 1.8 Mbps |
||
|
DC-HSPA+: DL 42Mbps / UL 5.76 Mbps |
||
|
LTE: DL 150 Mbps (CAT4) / UL 75 Mbps（CAT5) |
||
|
GPS |
GPS |
GPS-L1 supports A-GPS: GLONASS; Beidou; Galileo |
|
Wireless LAN |
Wireless connections |
IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w (2.4G/5G dual-band WIFI) |
|
Data rate |
5 GHz: 802.11a/n/ac/ax ready |
|
|
2.4 GHz: 802.11b/g/n |
||
|
Working channel |
CH1-CH13, CH36-CH165 |
|
|
Security and Encryption |
WEP,WPA/WPA2-PSK,WAPI,WAPI-PSK |
|
|
EAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA |
||
|
Fast roaming |
Support 802.11r fast roaming |
|
|
Wireless PAN |
Bluetooth |
Bluetooth BT5.1 + BR/EDR + BLE, support WIFI coexistence, support Bluetooth automatic reconnection |
|
Communication distance |
>10m |
|
|
Accessories |
Standard configuration |
Power adapter x 1, USB Type-C cable x 1, rechargeable battery x 1 |
|
Optional accessories |
Wristband, four-battery charger, single charger (charging + USB communication/Ethernet), 5-way charger (support Ethernet), RFID handle, single handle, OTG data cable, wireless charging clip, optical fingerprint module |
