i9000S Payment Terminal
Model: i9000S
Description: Credit card machine, Stripe terminal, wireless credit card terminal
Key parameter: Android 8.1
5.0 inch display, 1280*720
1G+8G, 2G+16G for option
4G, WiFi, NFC, GPS
Built-in 2 inch thermal printer
5000mAh battery
Features:
1. Smart terminal, Advance capacitive screen, got all security certification
Android 8.1, PCI 5.0 certified, EMV L1/L, EMV contactless certified, MasterCard PayPass permission, Visa PayWave permission.
2. i9000S Payment Terminal, multiple payment solutions, versatile payment and data capture
Support all main stream bank card and payment methods.
Visa card, master card, magnetic card, IC card, NFC payment, for Apple Pay, for Samsung Pay, for Huawei Pay, QR code payment etc.
3. Business credit card machine, enterprise level IP protection
IP54 protection, Passed 1.3m drop test.
4. Merchant terminal, with built-in thermal printer
2 inch thermal printer, 30mm or 40mm paper roll, supports 1D/2D barcode printing and receipt printing.
5. Handheld payment terminal, powerful data collection
1D or 2D barcode scanning, 5MP camera, GPS positioning.
Specification
|
Basic characteristics |
|
|
Operating system |
Android 8.1 |
|
Processor |
Quad-core, 1.3GHz |
|
Display |
5" HD capacitive Touchscreen, 1280*720 color screen |
|
Panel |
Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers |
|
Memory |
1G+8G, 2G+16G (optional), micro SD/TF *1, up to 128GB |
|
Size |
184*81*58mm (32mm thinnest) |
|
C.W. |
490g (With battery) |
|
Keys |
Front: User define button *1; Cancel button *1; Confirm button *1; Clear button *1 |
|
Side: The volume switch button, Power ON / OFF button |
|
|
Barcode scanner |
camera decoding, Supports 1D/2D code scanning |
|
Radio Communication |
|
|
Wi-Fi |
802.11 b/g/n wireless communication (2.4GHz) |
|
Bluetooth |
Bluetooth 4.1 + BR/EDR+BLE |
|
4G |
TDD-LTE: B40 |
|
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20 |
|
|
3G |
UMTS (WCDMA) / HSPA+: 850/900/1900/2100MHz |
|
2G |
GSM/EDGE/GPRS/CDMA: 850/900/1800/1900MHz |
|
Power |
|
|
Battery |
3.8V/5000mAH (Typical operation time ≥ 8 hours) |
|
Clock battery |
Real time clock battery |
|
Adaptor |
|
|
Input |
100 ~ 240V AC 50~60Hz |
|
Output |
5V/2A |
|
Payment |
|
|
Magnetic stripe card |
Supports magnetic 1/2/3 track card, Bidirectional swipe, and meet the standards of ISO7811/7812/7813 |
|
IC card |
Meet the standard of ISO/IEC 7816 |
|
Contactless card (RFID) |
Supports Mifare, type A/B/C, Felica |
|
Supports 10MHz ~ 20MHz frequency, and reading time less than 300 milliseconds |
|
|
Thermal printer |
|
|
Paper Type |
58mm Receipt paper |
|
Paper Roll size |
30mm or 40MM |
|
Paper Width |
58mm |
|
DPI |
203DPI, 8dot/mm |
|
Printing speed |
50~70mm/s, supports 1D/2D bar code printing |
|
Paper way out |
Front paper out, tear-off |
|
Expansion and peripherals |
|
|
Camera |
5MP camera with LED flash and auto-focus function |
|
GPS |
GPS, supports A-GPS, GLONASS, Beidou |
|
Slot |
Micro SD/TF *1 (a maximum of 128GB) |
|
SIM *1 |
|
|
PSAM |
SAM *2 Conforms to ISO7816 standard |
|
Interface |
Mini USB *1 (data transferring and charging, USB OTG 2.0); Pogo pin *1 (8pin); 3.5mm Audio Jack *1; DC Jack (Charging) |
|
Audio Frequency |
Speaker |
|
Accessories |
|
|
Standard |
Power adapter, USB cable, battery |
|
User Environment |
|
|
Operating temp. |
-10~50°C |
|
Storage temp. |
-40~70°C |
|
Humidity |
5%~95% (non condensing) |
|
Drop Durability |
1.3m drop to concrete |
|
Product certification |
|
|
Certification |
CCC, CE, FCC, RoHS, PCI, EMV LEVEL 1&2, EMV Contactless LEVEL 1 certification, PayWave, PayPass, American Express Expresspay etc |

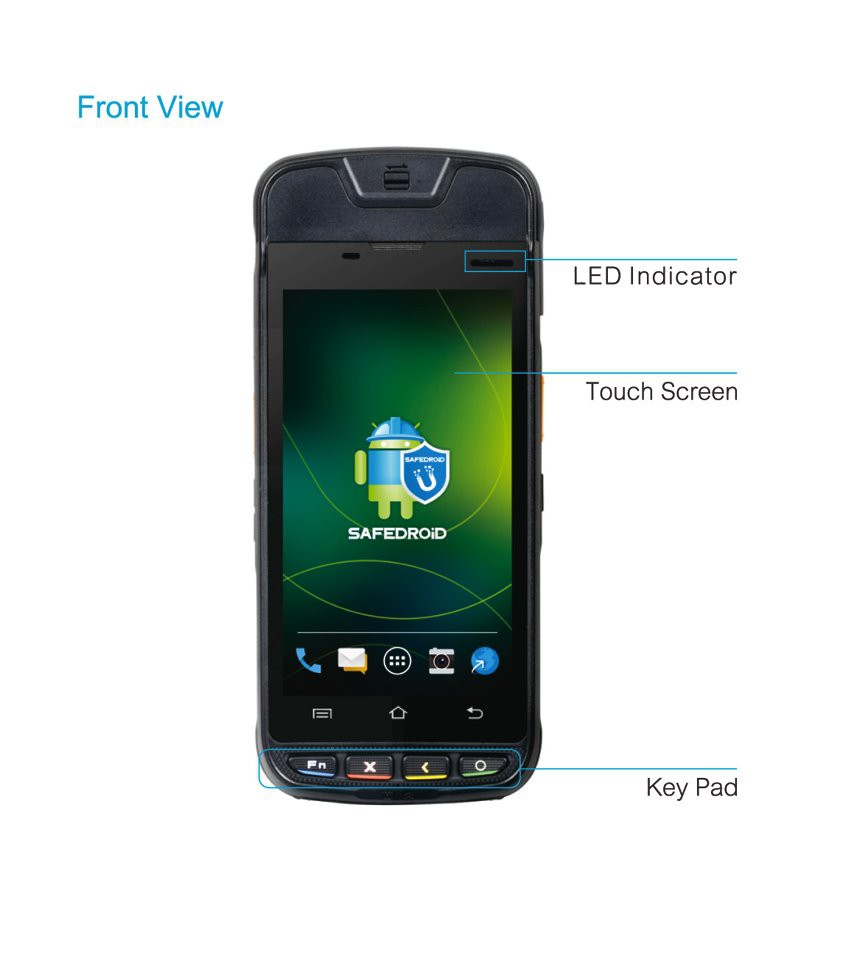

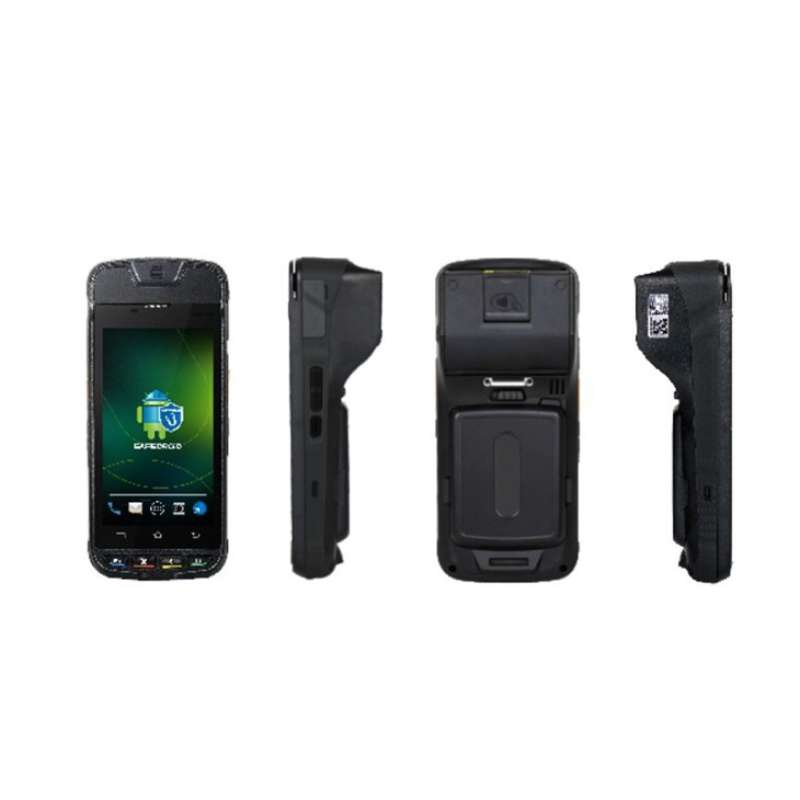

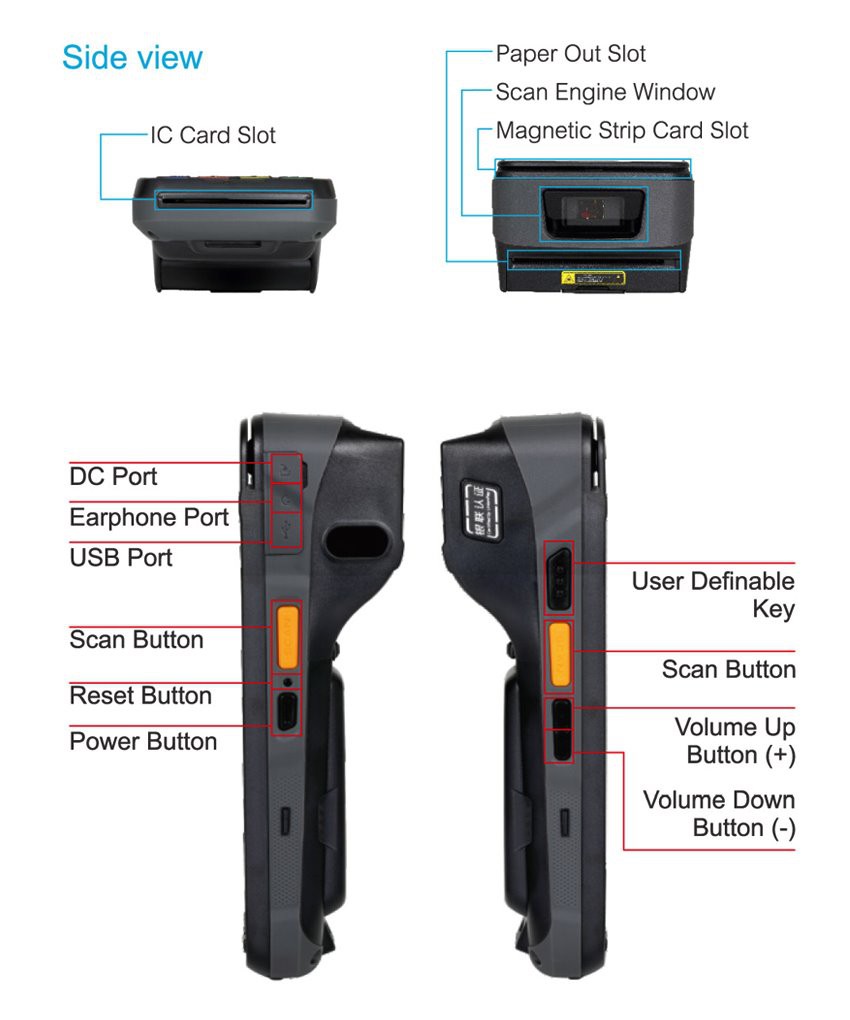

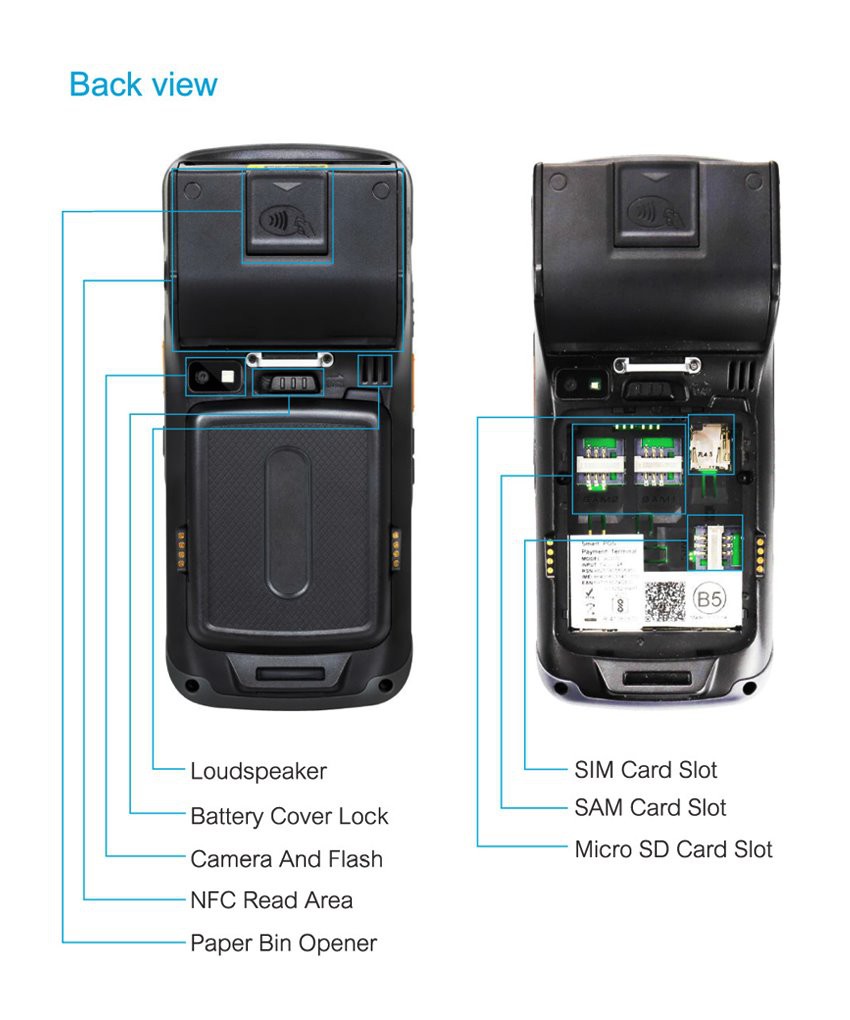

Product Show:
Application:
i9000S Payment Terminal is an all-in-one robust, durable device, payment device, data capture with built-in scanner, professional industrial design:
1. Material selection: Industrial grade components, such as housing materials, industrial grade capacitive screens, buttons.
2. Integrated buckle: Ensure that the battery does not fall off when device is dropped.
3. Soft rubber protection, anti-drop.
4. Screen groove: Avoid breaking the screen directly when the device is dropped.
i9000S Payment Terminal is widely used in Retail, chain store, insurance industry, bank, public transportation etc.
