Android POS

Android 13 POS

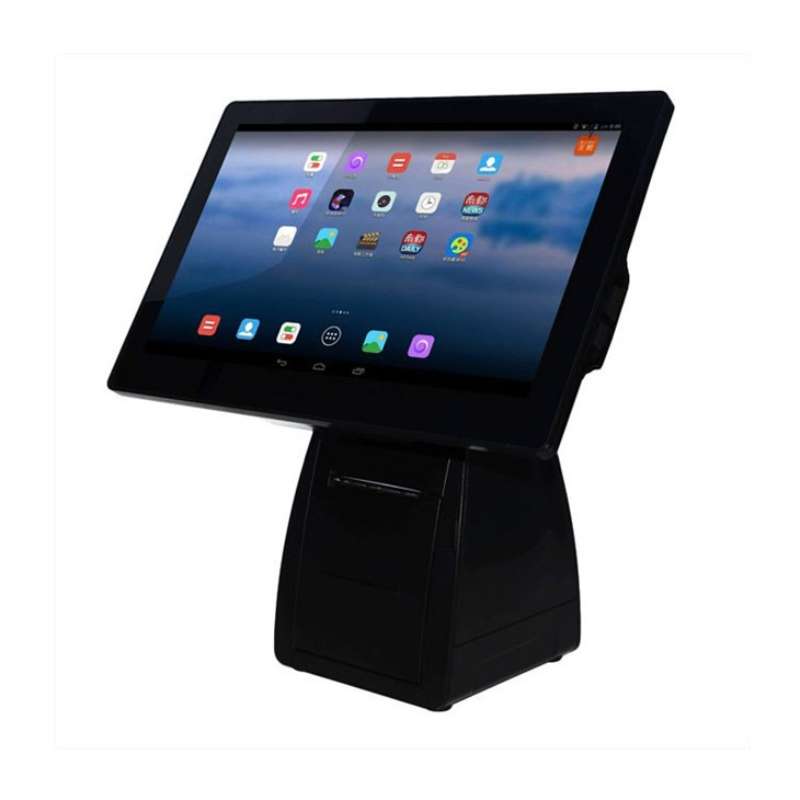

M60 cash register

Android 13 POS

Model: M60
Description: Android 13 POS, Android Smart POS
Key parameter: 15.6 inch single display, Touch screen
1920*1080 resolution
Qualcomm CPU, 4G+64G (standard), 6G+128G (Optional)
Android 13
Built-in 80mm thermal printer with auto cutter
220mm/s printing speed

Send Inquiry

Features:

1. Android 13 POS: 15.6", 1920*1080.

2. Android 13 POS: 4G+64G

3. Android 13 POS: Qualcomm Snapdragon 8-Core Processor.

4. Android 13 POS: 4G network function

5. Android 13 POS: Built-in 80mm thermal printer with auto cutter, 220mm/s.

6. Android 13 POS: Cash drawer function supported

Specification

Control Component
CPU	Qualcomm Snapdragon 8-Core Processor
Memory	4G+64G (standard), 6G+128G (optional)
Operation System	Android 13
TF Card	MicroSD(TF) supported, up to 64GB capacity
SIM	Support, Standard SIM card
Wi-Fi	IEEE 802.11a/b/g/n/ac 2.4G/5GHz
Bluetooth	Support Blueooth 2.1+EDR / 3.0 / 4.1 LE / 4.2 BLE/ 5.0 LE
GNSS	GPS/GLONASS/BDS/Galileo/QZSS
4G Network	Support
Frequency band	LTE-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28
	LTE-TDD: B38/ 39/ 40/ 41 (200 MHz)
	WCDMA: B1 /2 /4 /5 /8
	GSM: 850/900 /1800/ 1900 MHz
Main display buttons	Power button 1, VOL+ 1, VOL- *1
Press buttons	FEED Button *1
Speaker	2W Audio Amplifier output, 90dB
Real Time Clock	Button cell battery
Main Display
Display Screen	15.6"
Resolution	1920x1080
Operation	Multi-Touch
I/O Port
Type-c	1* Type-c (debug)
RS232	1* RS232 (RJ11)
USB	5* USB2.0 (TYPE A)
LAN	1* RJ45 (10/100M)
Cash box	1* RJ12
Audio	1* Audio 3.5mm
Physical properties
Power	24V
Color	Black, White
Dimension	400x270x420mm (LxWxH)

Built-in thermal printer specification:

Built-in Printer
Printing mode	Direct thermal line
Paper width	79.5±0.5mm
Paper diameter	80mm
Cutter	Partial cut
Print speed	220mm/sec
Resolution	203 DPI
Commands	Compatible with ESC/POS
Fonts	GB18030, BIG5, KSC5601, SHIFT JIS
Code page	PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai)
Barcode type	UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39, CODABAR , ITF, CODE93, CODE128, QR CODE
Reliability	Mechanism: 150KM; Auto cutter: 1.5 million cuts
