M60 Android POS
Model: M60
Description: Android point of sale, Android POS billing machine
Key parameter: 15.6 inch single display
1920*1080 resolution
Touch screen
Android 9
Built-in 80mm thermal printer with auto cutter
220mm/s printing speed
Features:
1. Android POS, integrated design, strong function, and easy operation.
2. All in one POS, Fashionable appearance, solid and stable.
3. Qualcomm Snapdragon Eight-Core Processor.
4. Android 9.
5. M60 Android POS Display: 15.6 inch touch screen, 1920*1080 High resolution.
6. Built-in Wi-Fi and Bluetooth.
7. M60 Android POS Built-in 80mm thermal printer and speaker.
8. 220mm/sec printing speed, supports GB18030, BIG5, KSC5601, SHIFT JIS and more code page.
9. M60 Android POS supports 2D code printing, LOGO printing.
10. M60 Android POS supports 2G, 3G, 4G (Optional Function).
Specification
|
Control Component |
|
|
CPU |
Qualcomm Snapdragon Eight-Core Processor |
|
RAM |
2GB RAM |
|
ROM |
16GB ROM |
|
Operation System |
Android 9 |
|
TF Card |
MicroSD(TF) supported, up to 64GB capacity |
|
SIM |
Support, Standard SIM card |
|
Main display buttons |
Power button x1, VOL+ x1, VOL- x1 |
|
Press buttons |
FEED button x1, Cover Open button x1 |
|
Micro-USB |
Debug, switch HUB, disable for default |
|
Speaker |
2W Audio Amplifier output, 90dB |
|
Real Time Clock |
Button cell battery |
|
Main Display |
|
|
Display Screen |
15.6 inch |
|
Resolution |
1920x1080 Pixel (Standard) |
|
Operation |
Multi-Touch capacitive touch panel |
|
I/O Port |
|
|
RS232 |
1xRS232 (RJ11) |
|
USB |
4xUSB2.0 (TYPE A) |
|
LAN |
1xRJ45 (10/100M) |
|
Cash drawer |
1xRJ12 |
|
Audio |
1xAudio 3.5mm |
|
Physical properties |
|
|
Power |
24V |
|
Color |
Black, White |
|
Dimension |
400x270x420mm (LxWxH) |
Built-in thermal printer specification:
|
Built-in Printer |
|
|
Paper width |
79.5±0.5mm |
|
Paper diameter |
80mm |
|
Cutter |
Partial cut |
|
Print speed |
220mm/sec |
|
Resolution |
203 DPI |
|
Commands |
Compatible with ESC/POS |
|
Fonts |
GB18030, BIG5, KSC5601, SHIFT JIS |
|
Character Size |
ANK character, Font A：12x24dot |
|
Font B：9x17dot |
|
|
Simplified/Traditional Chinese：24x24dot |
|
|
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC737, WPC, 1257, Thai Vietnam, PC864, PC1001, (Latvian), (PC1001), (PT151,1251), (WPC1257), (PC864), (Vietnam), (Thai) |
|
Reliability |
Mechanism: 150KM; Auto cutter: 1.5 million cuts |

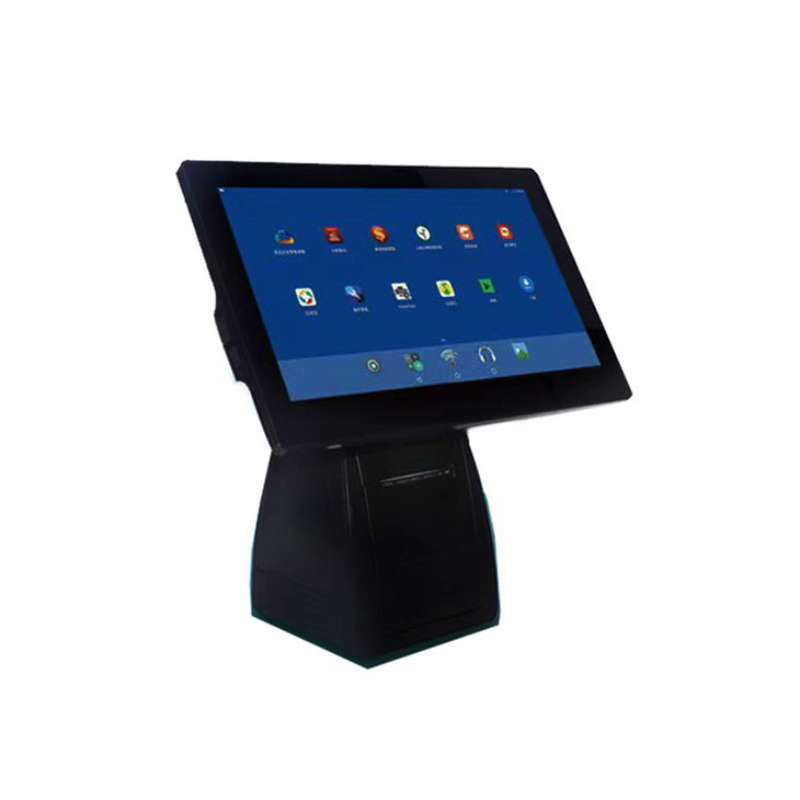

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| M60 Android POS |
5.5 |
1 pcs/carton |
8 |
39*48*50 |
Application:
M60 Android POS is widely used in retail industry such as hair salon, chain store, supermarkets, restaurants, bakeries and snack bars.
Q and A:
1. About sample:
Please kindly contact us by informing your requirements, we will recommend the printer model based on your request, and then send the sample by express such as DHL or FedEx or UPS immediately once the sample order confirmed.
2. About OEM/ODM:
We welcome OEM/ODM on your brand or your design, MOQ required based on different models.
3. About after service:
1 year warranty or a ratio of spare parts for RMA. Also we will assist you to solve technical issues and offer latest software for updating.
4. About MOQ:
Small quantity as a trial order for standard products would be acceptable.
The quantity for formal order and OEM/ODM order, you can discuss the MOQ with us directly.
