Android Pos Hardware
Model: S-D80
Description: Android POS System, Smart POS machine
Key parameter: Dual display
1920*1080 resolution
Touch screen
Android 9
Built-in 80mm thermal printer with auto cutter
220mm/s printing speed
Features:
1. Android POS, integrated design, strong function, and easy operation.
2. All in one POS, Fashionable appearance, solid and stable.
3. Android Pos Hardware with Qualcomm Snapdragon Eight-Core Processor.
4. Android 9, stable performance.
5. Main display: 15.6 inch LCD display, 1920*1080 High resolution, multi-touch support.
6. Guest display: 11.6 inch, supports a secondary customer display screen displaying items registered or scanned including your own custom promotional image and display of full screen “rolling display” advertisements or promotional screens/images. Multi-touch function for optional if necessary.
7. Built-in 80mm thermal printer with auto cutter.
8. Built-in Wi-Fi and Bluetooth.
9. Support 2G, 3G, 4G(Optional Function).
Specification
|
Control Component |
|
|
CPU |
Qualcomm Snapdragon Eight-Core Processor |
|
RAM |
2GB RAM |
|
ROM |
16GB ROM |
|
Operation System |
Android 9 |
|
TF Card |
MicroSD(TF) supported, up to 64GB capacity |
|
SIM |
Support, Standard SIM card |
|
Main display buttons |
Power button x1, VOL+x1, VOL- x1 |
|
Press buttons |
FEED button x1, Cover Open button x1 |
|
Micro-USB |
Debug, switch HUB, disable for default |
|
Speaker |
2W Audio Amplifier output, 90dB |
|
Real Time Clock |
Button cell battery |
|
Main Display |
|
|
Display Screen |
15.6 inch |
|
Resolution |
1920x1080 Pixel (Standard) |
|
Operation |
Multi-Touch capacitive touch panel |
|
Guest Display |
|
|
Display Screen |
11.6inch (Standard), 15.6 (Optional) |
|
Resolution |
11.6inch 1366x768 Pixel (Standard), 15.6inch 1920x1080 Pixel (Optional) |
|
Operation |
None (Standard), Multi-Touch capacitive touch panel (Optional) |
|

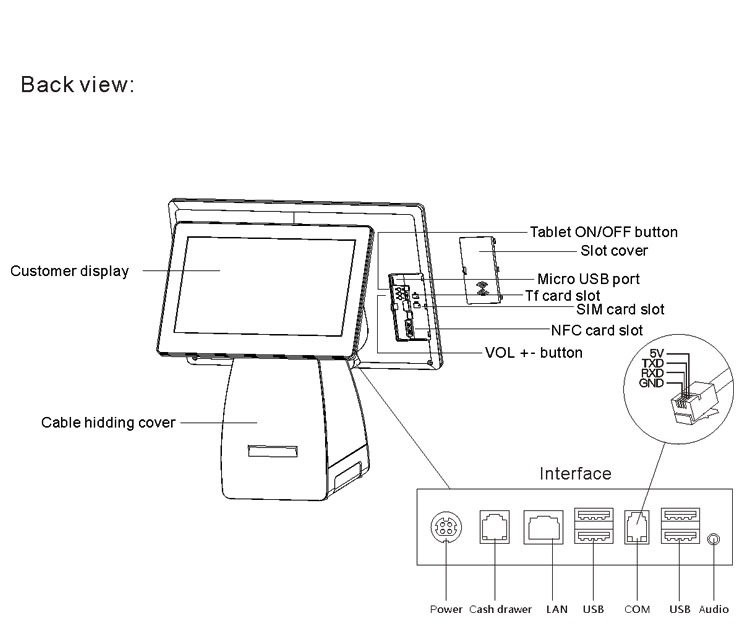

I/O Port |
|
|
RS232 |
1x RS232 (RJ11) |
|
USB |
4x USB2.0 (TYPE A) |
|
LAN |
1x RJ45 (10/100M) |
|
Cash drawer |
1x RJ12 |
|
Audio |
1x Audio 3.5mm |
Built-in thermal printer specification:
|
Built-in Printer |
|
|
Paper width |
79.5±0.5mm |
|
Paper diameter |
80mm |
|
Cutter |
Partial cut |
|
Print speed |
220mm/sec |
|
Resolution |
203 DPI |
|
Reliablity |
Mechanism: 150KM; Auto cutter: 1.5 million cuts |
Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
Android Pos Hardware S-D80 |
7 |
1 pcs/carton |
9 |
39*48*50 |
Application:
Android Pos Hardware S-D80 is widely used in retail industry such as hair salon, chain store, supermarkets, restaurants, bakeries and snack bars.
