KS-380 Mobile Printer
Model: KS-380
Description: Portable Receipt Printer, pocket printer, mobile printer, Mobile bluetooth printer
Key parameter: 80mm width (3 inch)
50mm paper diameter
USB + Bluetooth (Standard), USB + Wi-Fi (optional)
2200mAh Lithium battery
60mm/s
Features:
1. Portable wireless printer, feel comfortable and easy to carry
Mobile, portable, small printer, press the button open cover, easy paper loading and operation.
2. Mini printer for mobile, high quality print head, high print speed
576dot/line, 203DPI, 60mm/s print speed.
3. Small portable printer, Long Standby time, energy saving
2200mAh/7.4V removable Lithium battery
7days standby time
Continuous operation for 6hours
KS-380 Mobile Printer Bluetooth supports BT3.0 & BLE4.0
Supports connect with Android and iOS systems
USB+WiFi: AP/STA/AP+STA mode to set up the networks
KS-380 Mobile Printer is compatible with ESC/POS commands
Specification
|
Printing |
|
|
Print method |
Direct thermal |
|
Dot density |
576dot/line |
|
Print speed |
60mm/s (Max) |
|
Interface |
USB+Bluetooth (Standard), USB+WiFi (Optional) |
|
Paper width |
80mm |
|
Paper diameter: |
50±0.5mm |
|
Paper thickness |
0.06～0.08mm |
|
Print commands |
Compatible with ESC/POS |
|
Fonts |
GB18030, Big5, Korean |
|
Character & Barcode |
|
|
Character Size |
ANK Font: FontA: 12*24dots |
|
FontB: 9*17dots |
|
|
Simplified/Traditional Chinese Character, Korean: 24*24dots |
|
|
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC747, Vietnam, Uygur, Thai |
|
Barcode mode |
UPC-A, UPC-E, EAN(JAN)13, EAN(JAN)8, CODE39, CODABAR, ITF, CODE93, CODE128, QR Code |
|
Buffer |
|
|
Data |
4K bytes |
|
NV Flash |
60K bytes |
|
Physical properties |
|
|
Dimension |
131*107*58mm |
|
Weight |
350g (with battery) |
|
Power |
|
|
Power adaptor |
input: AC100-220V output: DC9V/1A |
|
Lithium battery |
2200mAh/7.4V |
|
Charge period |
3.0~5.0h |
|
Environment |
|
|
Work |
Temperature: 0～45℃, Humidity: 10～90% |
|
Storage |
Temperature: -10～50℃, Humidity: 10～90% |
|
Reliability |
|
|
Mechanism |
50KM |
|
Others |
|
|
Environment |
Android, iOS, (Win9X/Win ME/Win2000/WinNT/WinXP, WinVista, Win7, Win8, Win10, Linux) |
|
language |
Japanese, Portuguese, French, Greek, Hebrew, Cyrillic, Iran, Latvian, Arabic, Ukrainian, Thai, Vietnam ect |
|
Paper supply method |
Drop-in paper load |

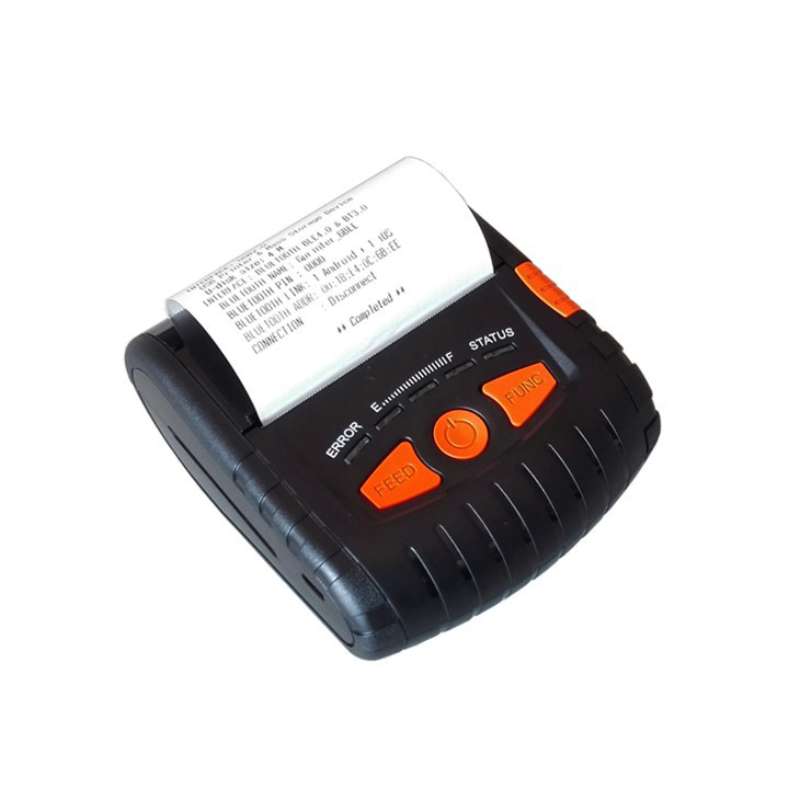

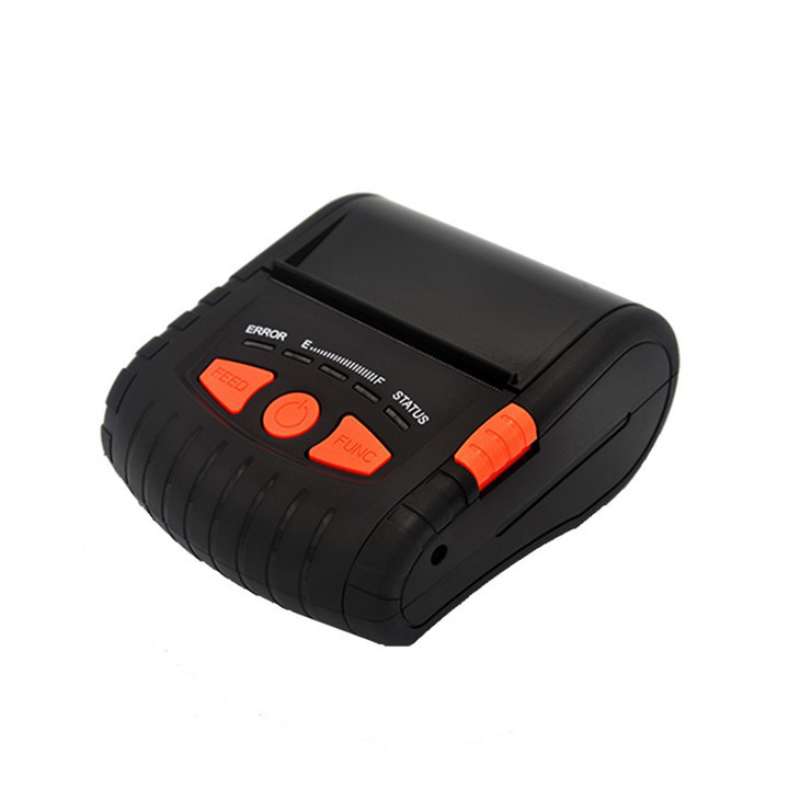

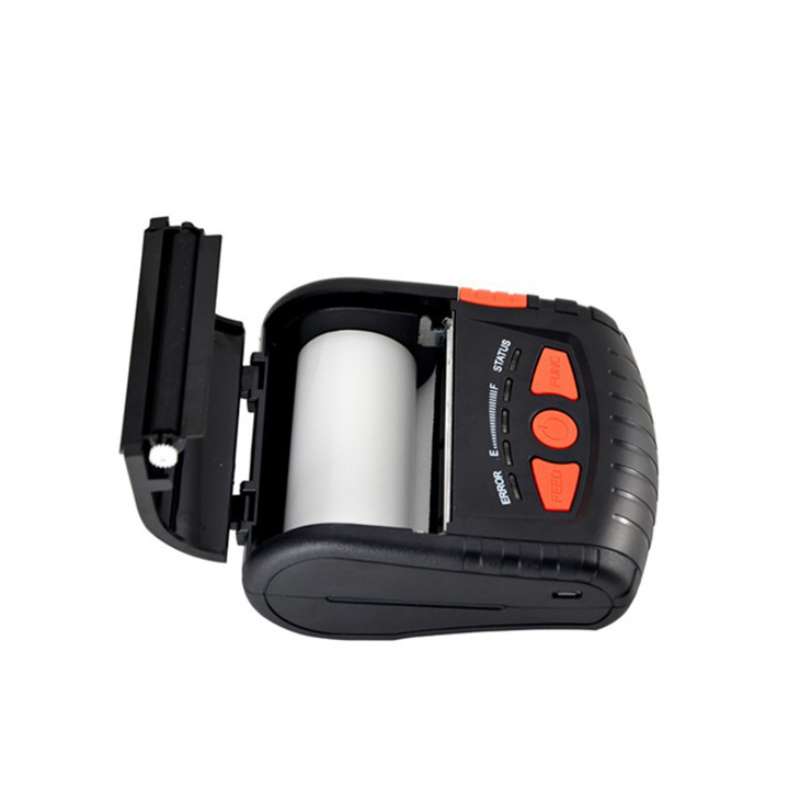

Product Show:
The optional accessory:

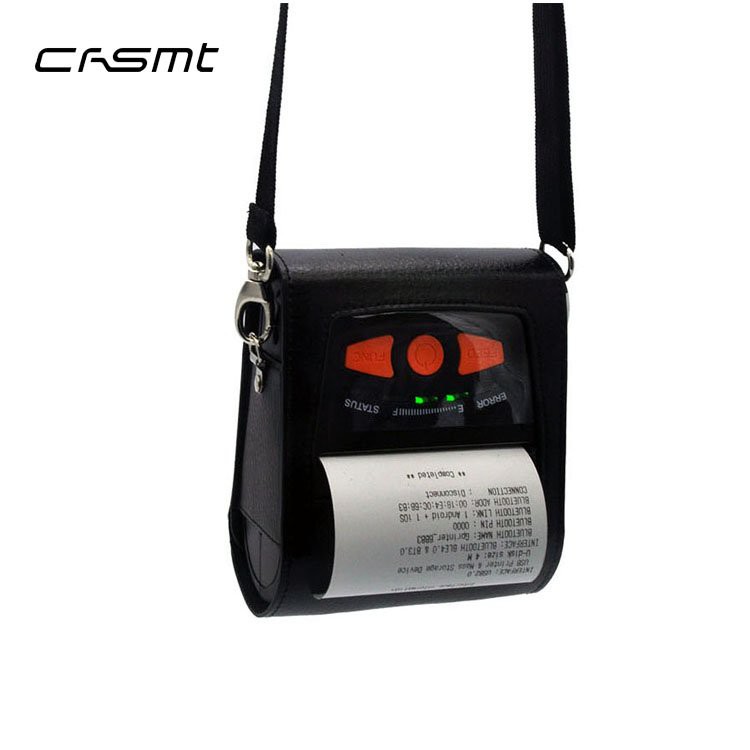

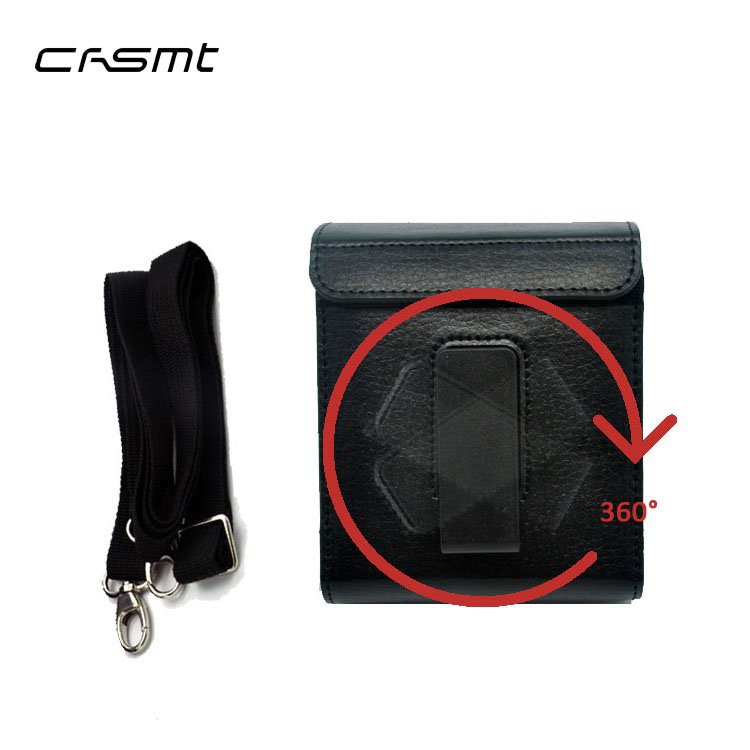

The carrying case: high quality PU, with shoulder strap and belt clip for operator to carry the printer easily outdoor.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| KS-380 Mobile Printer |
0.7 |
10 pcs/carton |
8 |
45*34*22 |
Q and A:
1. About KS-380 Mobile Printer initialization:
Press the POWER button and FUNC button simultaneously, wait for the green lights light in turn, then release the POWER button firstly. The red light and blue light lights up in turn, after the blue light dims, release the FUNC button; red light dims, the printer motor will vibrate.
2. About KS-380 Mobile Printer to print self-test page:
Press the FEED button and the POWER button simultaneously, wait for all the lights are bright, then release POWER button firstly, wait for STATUS indicator (blue light) dims, then release the FEED button.
3. How to know KS-380 Mobile Printer current Bluetooth or Wi-Fi details?
Printer power on, press the FUNC button, interface information page will be printed out.
4. About sample:
Please kindly contact us by informing your requirements, we will recommend the printer model based on your request, and then send the sample by express such as DHL or FedEx or UPS immediately once the sample order confirmed.
5. About after service:
1 year warranty or a ratio of spare parts for RMA. Also we will assist you to solve technical issues and offer latest software for updating.
