3 Inch Bluetooth Thermal Printer
Model: M32B
Description: Portable Bluetooth printer, Small portable printer
Key parameter: 80mm width (3 inch)
50mm paper diameter
USB + Bluetooth
2200mAh Lithium battery
Features:
1. 3 Inch Bluetooth Thermal Printer, compact design, light weight
430g, 108×114×51mm, easy to carry outdoor, drop in paper loading, easy operation.
2. Mini Bluetooth Printer, Visual switching print modes
Print speed 2~4 inch/s, Support 1D barcode, QR code printing.
LED display screen to show printing mode what you want.
3 Inch Bluetooth Thermal Printer is compatible with TSPL, CPCL and ESC/POS commands.
Paper type selection: sticker paper, thermal paper roll, continuous, black mark, gap ect.

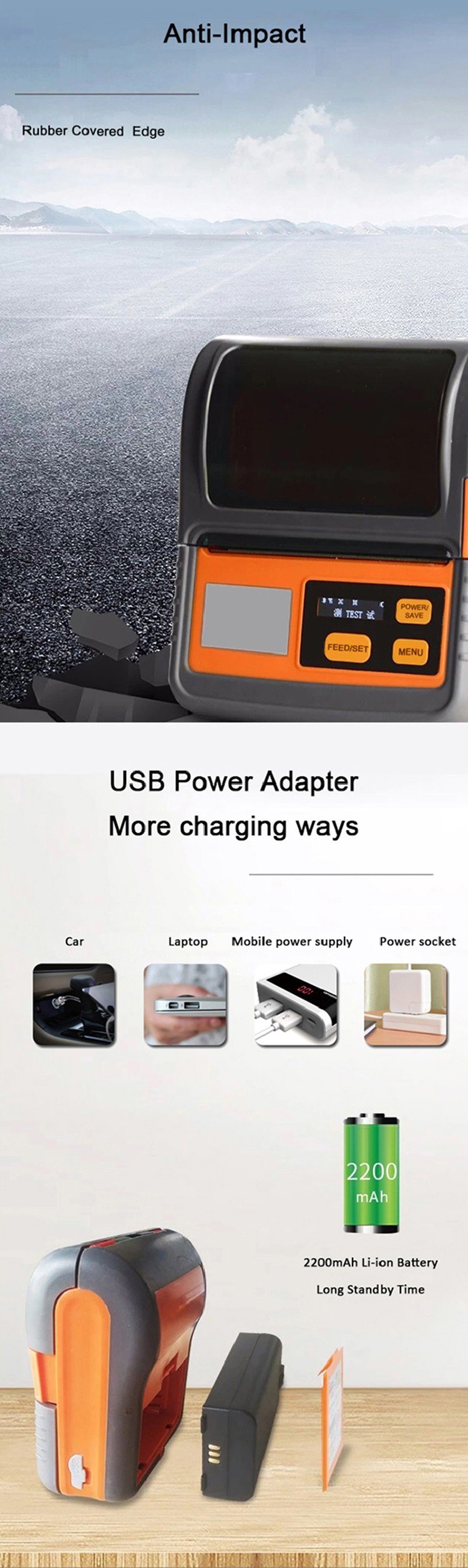

3. Portable Bluetooth label printer with large capacity battery, more charging ways, long standby time
Lithium battery: 2200mAh/7.4V, 7days standby time, charged by mobile power supply supported.
Power adapter: 5V-1A and 5V-2A USB power adapter supported, AC100-220V.
Specification
|
Item |
Thermal Label Mode |
Thermal Receipt Mode |
|
Print method |
Direct thermal line |
|
|
Dot density |
203DPI |
|
|
Print speed |
80mm/s (Max) |
50mm/s (Max) |
|
Buffer |
Data: 8M NV Flash: 16M |
|
|
Print head temperature detect |
thermal sensitive resistance |
|
|
Print head position detect |
Microswitch |
|
|
Paper detect |
Transmissive sensor |
|
|
Black Mark position detect |
Reflective sensor |
|
|
Interface |
USB+Bluetooth |
|
|
Command |
CPCL, TSPL |
ESC/POS |
|
Barcode type |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODEBAR, POSTNET, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14 , EAN14, QR Code |
|
|
Character Size |
Font 0 ~ font 8 |
|
|
Enlargement & Rotation |
1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation |
|
|
Image |
Single color PCX, BMP image file can be downloaded into Flash, DRAM |
|
|
Paper type |
Thermal paper roll / adhesive thermal paper |
Thermal paper roll |
|
Paper width |
25~80mm (including backing paper) |
80mm |
|
Paper diameter |
Outer: 50mm (Max.), Roll Core Size: 9mm (Min.) |
|
|
Paper out way |
Top paper out, tear off |
|
|
Input |
DC 5V/1A |
|
|
Llithium Battery |
2200mAh |
|
|
Charge Time |
5~8h |
|
|
Standby time |
7 days |
|
|
Work environment |
5~45°C (41~104°F), 25~85%RH |
|
|
Storage environment |
-10～50°C, 10~90%RH |
|
|
Air pressure |
86~106/kPa |
|
|
Dimension |
108x114x51mm (LxWxH) |
|
|
Weight |
430g (with battery) |
|

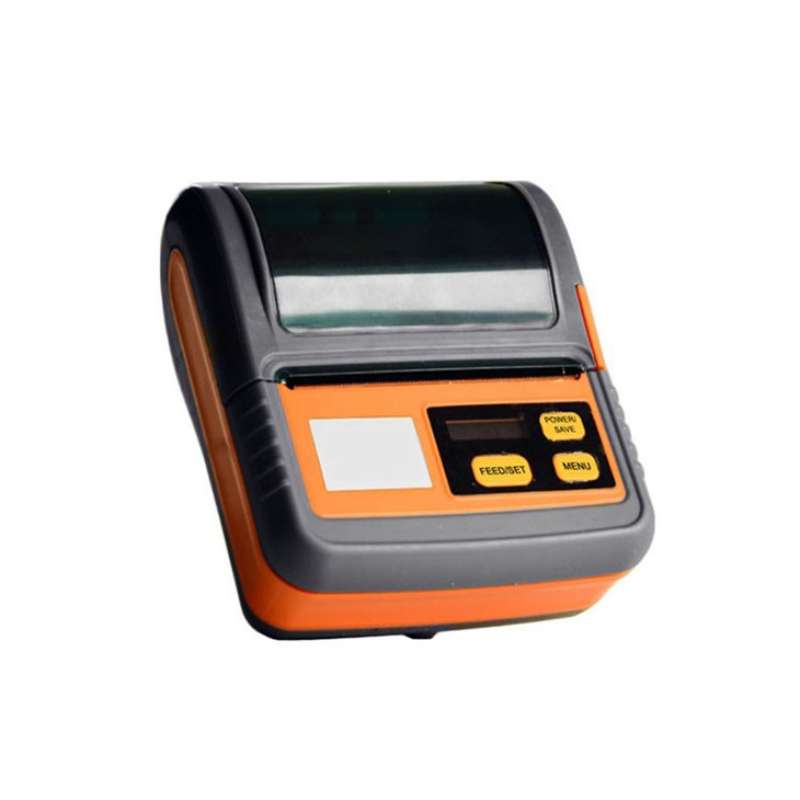

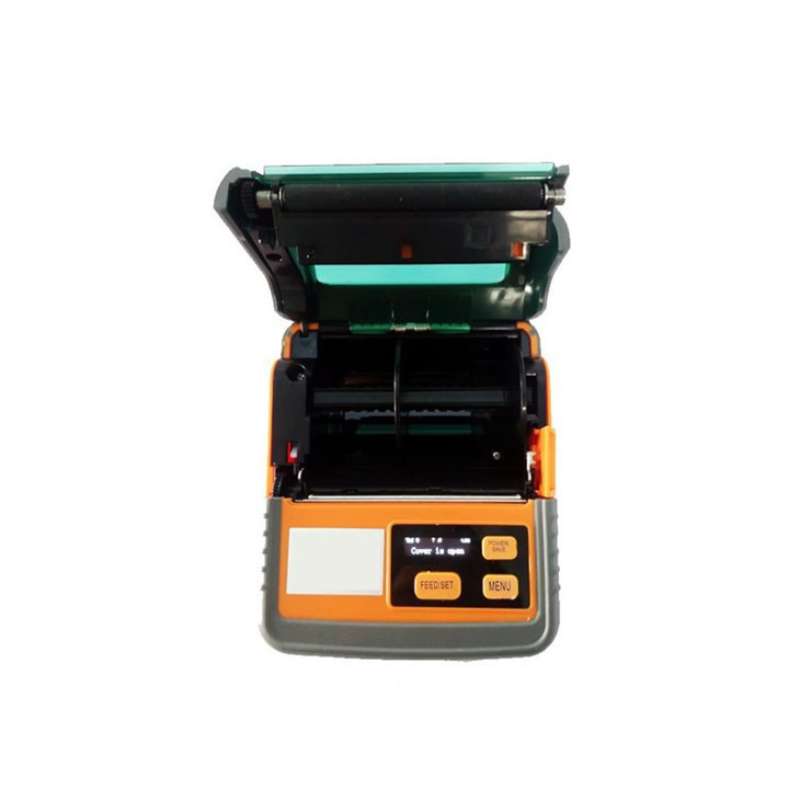

Product Show:
The optional accessory:

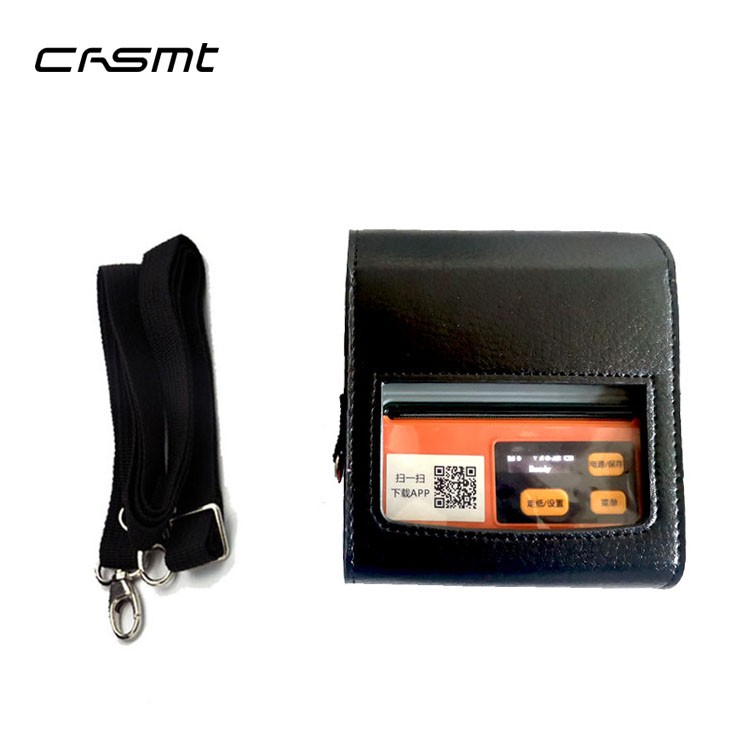

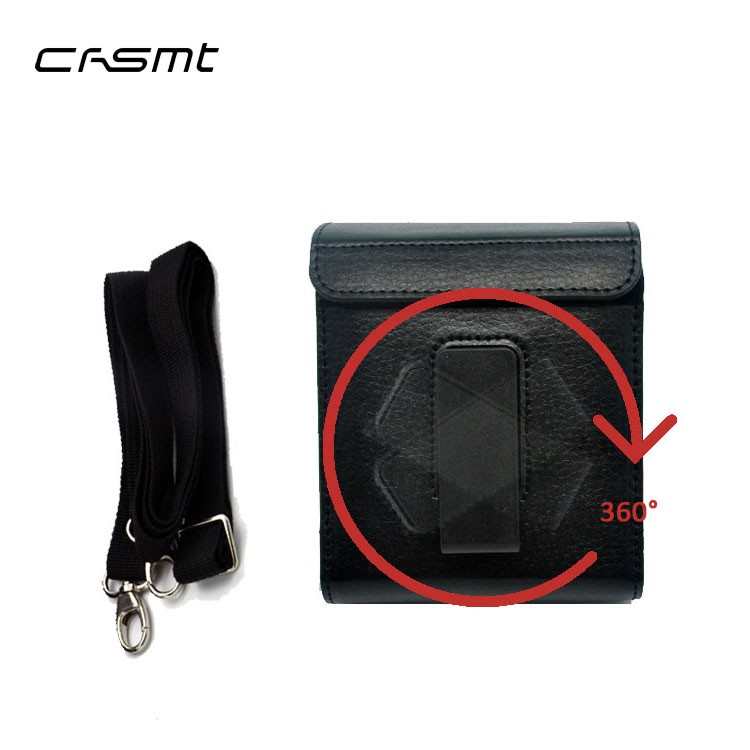

The carrying case: high quality PU, to protect printer, with shoulder strap and belt clip for user to carry and operate the printer easily outdoor.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
|
3 Inch Bluetooth Thermal Printer M32B |
0.7 |
10 pcs/carton |
8 |
25*38*36 |
Q and A:
About sample:
Please kindly contact us by informing your requirements, we will recommend the printer model based on your request, and then send the sample by express such as DHL or FedEx or UPS immediately once the sample order confirmed.
