4 Inch Industrial Printer
Model: H420F or H430F
Description: label printing machine, industrial label printer, industrial printing machine, industrial label machine,
industrial printers for sale, industrial sticker machine, printer industrial, industrial thermal transfer printer
Key parameter: 4 inch width (110mm)
USB+Serial+Etherenet
3~6inch/sec
Features:
● Industrial label printer machine, 203DPI or 300DPI resolution
● Unibody design, rugged and durable printer
● LCD display
● 4 Inch Industrial Printer, Thermal transfer printer, 10 inch/s high-speed printing
● 4 Inch Industrial Printer, 120mm paper width and Max.104mm print width
● 4 Inch Industrial Printer supports black mark, 2D barcode printing
● Multiple interfaces for different connectivity
● New mechanism to enable printing smoother
● Continuous 7*24 hours printing job supported
Specification
|
Printer |
Print Method |
Thermal Transfer |
|
Print Speed |
51-250mm/s (2-10inch/s) |
|
|
Interface |
USB+Serial+Ethernet |
|
|
Print Resolution |
H420F: 203 dpi; H430F: 300 dpi |
|
|
Print Width |
Max. 104mm (4.09") |
|
|
Print Length |
Max. 1500mm (59") |
|
|
Dot Density |
203dots/inch (8dots/mm) |
|
|
Dot Size |
0.125x0.125mm (1mm=8dots) |
|
|
Ribbon |
Ribbon OD |
Max. 81.3mm |
|
Ribbon Length |
Max. 450m |
|
|
Ribbon Core Size |
1 inch (25.4mm) |
|
|
Ribbon Width |
Max.110mm, Min.30mm |
|
|
Ribbon Rolling Up Method |
Outward Rolling |
|
|
Media |
Media Type |
Continuous, black mark, gap, punched hole, Fan fold and more labels |
|
Media Rolling Up Method |
Printing side outward rolling |
|
|
Media Width |
Max.120mm (4.72") Min.20mm (0.78") |
|
|
Media OD |
Max.203mm (8") |
|
|
Media Thickness |
Max. 0.254mm (10mil) Min. 0.06mm (2.36mil) |
|
|
Media Roll Core Size |
25.4mm~38mm (1"~1.5") |
|
|
Media Gap |
Min. 2 mm (0.09") |
|
|
Label Length |
10mm~1500mm (0.39" ~59") |
|
|
Note: if the length is less than 25.4mm (1"), in order to tear off easily, label paper with perforation lines on the gap is suggested to be used. |
||
|
External media holder |
optional |
|
|
Operating |
Power supply |
Input AC 110V-240V 1 .5A 50/60 Hz |
|
Pulse Excitation |
1x108 Pulses |
|
|
Operation Condition |
Temperature: 5~45℃(41~104℉), Humidity: 25~85%RH |
|
|
Storage Condition |
Temperature: -10~50℃(-10~140℉), Humidity: 10%~90%RH |
|
|
Physical |
Printer Dimensions |
425x255x265 mm (WxDxH) |
|
Printer Weight |
Approx. 9.65KG |

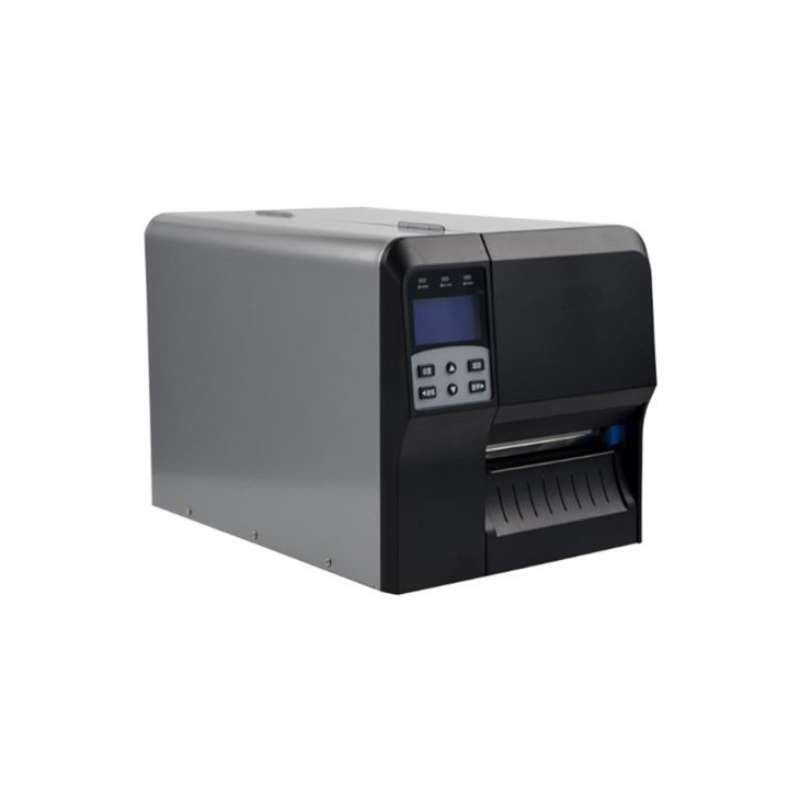

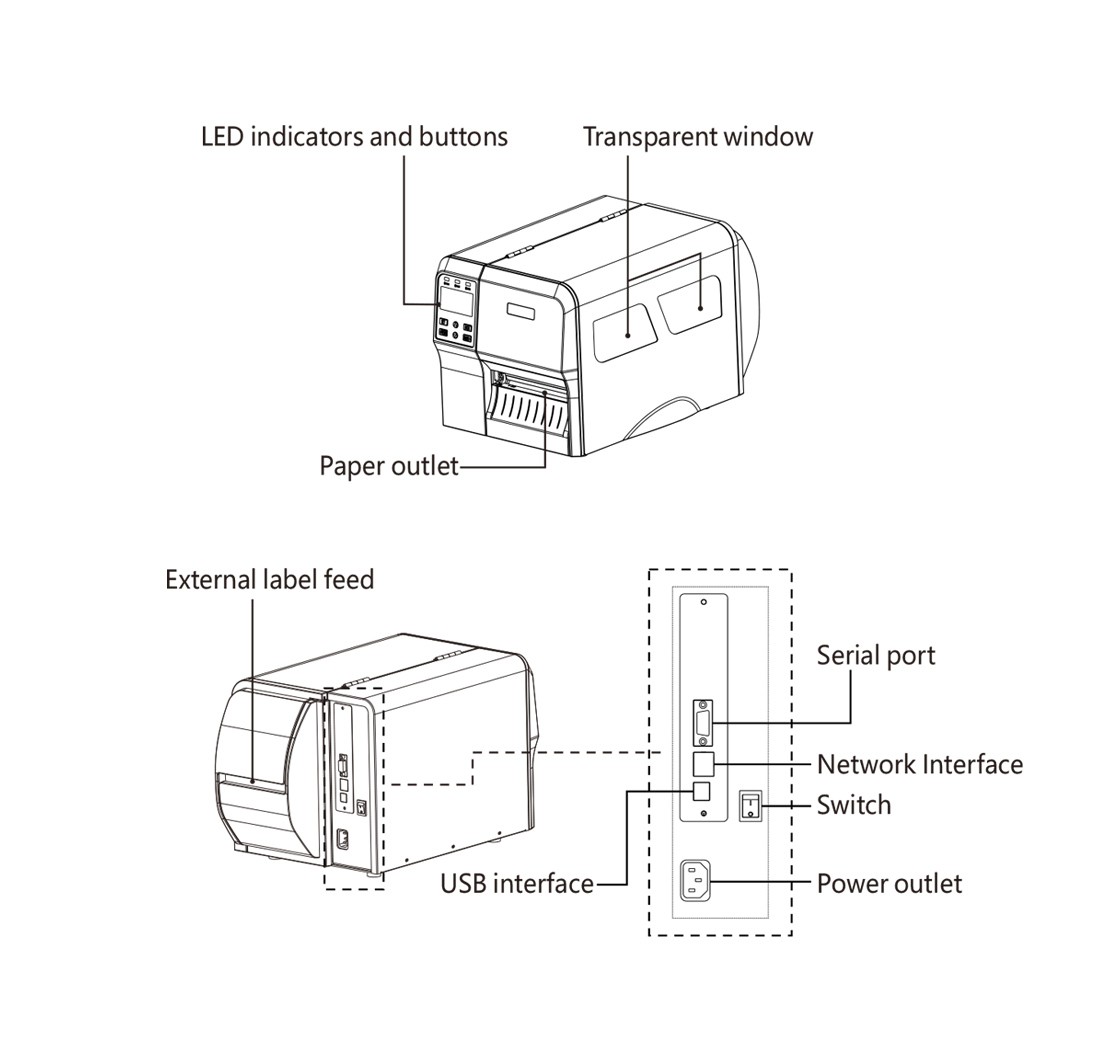

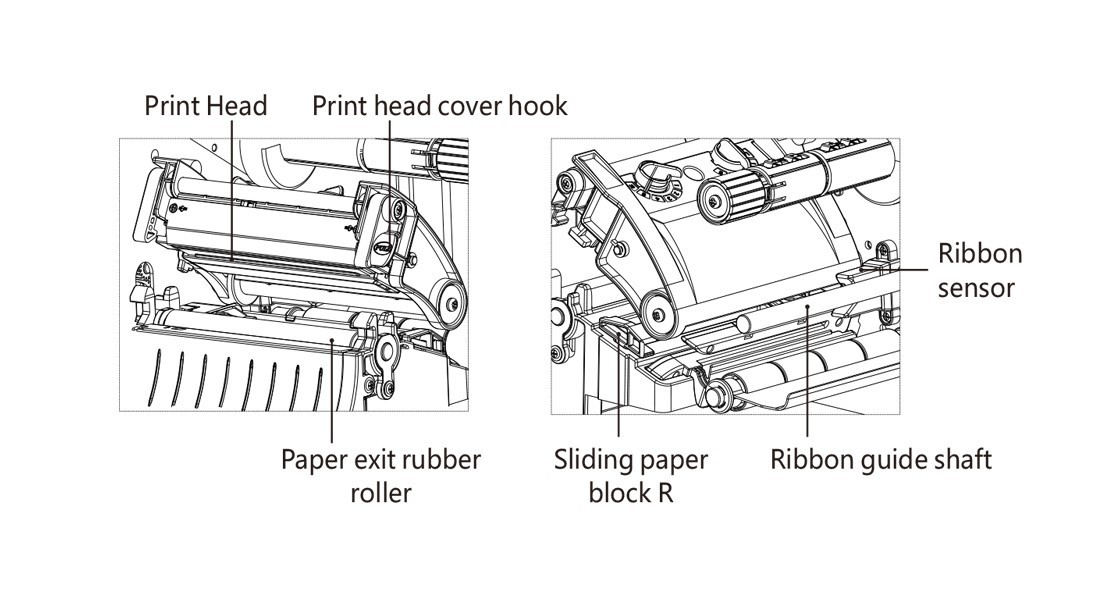

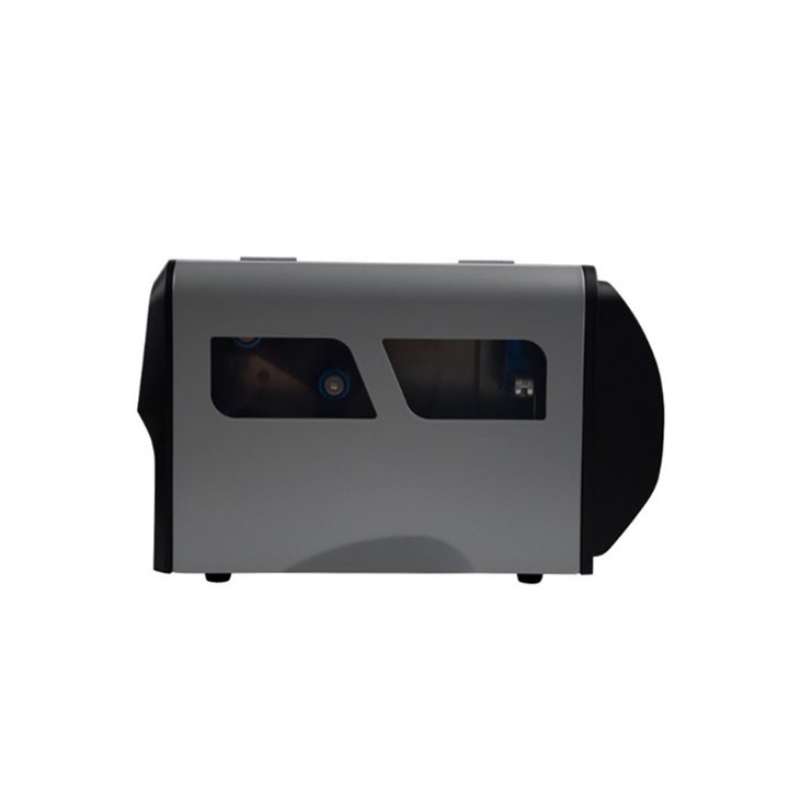

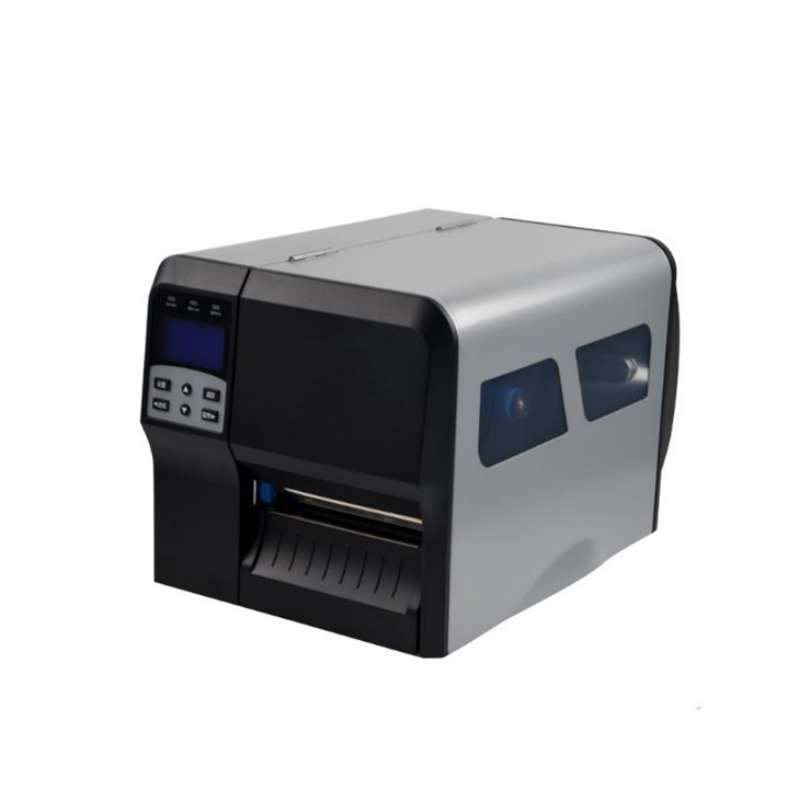

Product Show:
Packing
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| 4 Inch Industrial Printer |
10 |
1 pcs/carton |
13 |
54*40*40 |
Application:
Industrial printers are used in a variety of settings, including:
1. Manufacturing: Industrial printers are used to print labels on products and packaging, barcodes and QR codes for tracking inventory, and shipping labels for orders.
2. Logistics and Distribution: Industrial printers are used to print shipping labels, packing slips, and invoices for packages and products being shipped.
3. Healthcare: Industrial printers are used to print patient wristbands, medication labels, and specimen labels for the healthcare industry.
4. Retail: Industrial printers are used to print shelf labels, price tags, and product labels for retail stores.
5. Transportation: Industrial printers are used to print shipping labels and other important documents for the transportation and logistics industry.
6. Government: Industrial printers are used to print important documents, forms, and labels for government agencies and departments.
7. Education: Industrial printers are used to print student IDs, barcode labels, and other educational materials for schools and universities.
